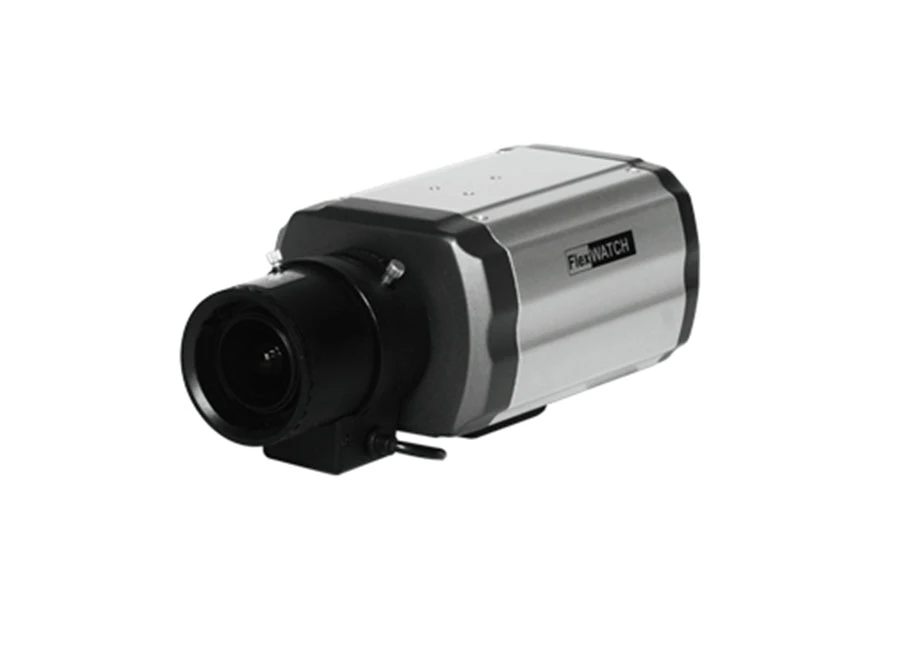

FlexWATCH FW7300 TXN IP HD Box Kamera
Özellikler
Teknik Özellikler
| Camera |
| Image Sensor : 1/2.8" 3.21M Progressive scan CMOS |
| Lens : CS Mount DC auto Iris Lens(Option) |
| Min Illumination : Color 0.05lux, B/W 0.0005lux |
| Use : Auto(ICR), Black & White, TDN, WDR, 2DNR, 3DNR |
| Type : Box Camera, In/Outdoor |
| Video |
| Compression : H.264/MPEG-4, MJPEG |
| Max Streaming Speed : Max 30fps @ 3M(2048x1536), 60fps/Full HD(1920x1080) |
| Out : - |
| Bit Rate Control : VBR/CBR (H.264, 32k~12Mbps) |
| Standard : ONVIF(Profile S) / PSIA(v1.0) |
| Audio |
| In/Out : 2 way(1 in / 1 out) |
| Compression : 8bit G.711, 8Khz, 8KByte/sec |
| Interface |
| Alarm In/Out : 1 DI / 1 DO |
| Serial Port : RS-232C/RS-485 |
| Peripheral Interface : USB 2.0 for wireless |
| Memory Slot : Micro SDHC |
| Network |
| LAN Interface : 10/100-base-T (optional PoE) |
| Protocol : HTTP, RTP/RTSP, TCP/IP(V4/V6), UDP, FTP, Telnet, HTTPS, RARP, PPPoE, SNMP, PAP, CHAP, DHCP, NTP, SMTP client, uPNP and etc |
| Viewer : IE, Safari, Chrome, Firefox etc, CMS, QuickTime |
| Key Function : Remote Admin Web based administration, setup, control, and upgrade |
| Advanced Service : E-mail / FTP / Alarm buffering Event notification |
| Dynamic IP : DDNS / uPnP support |
| Motion Detection : H/W Detection(12x12=144Block) |
| Security : Admin Multilevel password(256 Users) IP Port Filtering for Access Level |
| Hardware |
| Certification : KC/FCC/CE, RoHS |
| Working Condition : -10℃ ~ +50℃ / 10% ~ 90% RH |
| Power Supply : SMPS, DC 12V/1A AC 100/240V, 50/60HZ, 4.2W |
| Size/Weight : 71.7(W) x 103.5(D) x 57.4(H) (in mm) About 0.375Kg w/o SMPS |
FlexWATCH FW7300 TXN IP HD Box Kamera Pdf Dosyası211.79 KB
