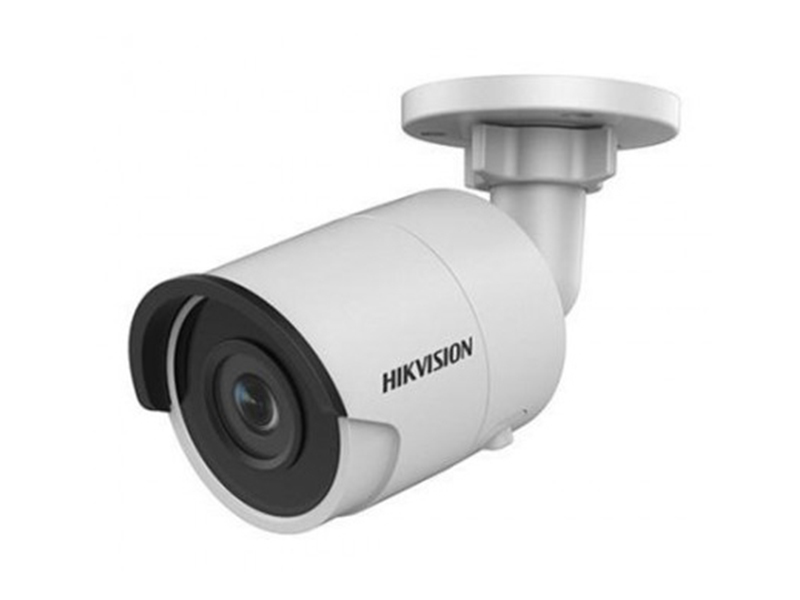

Haikon DS 2CD2043G0 I Mini IR IP Bullet Kamera
Özellikler
Teknik Özellikler
Camera | |
Image Sensor | 1/3" Progressive Scan CMOS |
Signal System | PAL/NTSC |
Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), Lux with IR |
Shutter time | 1/3 s to 1/100,000 s |
Slow shutter | Support |
Lens | 2.8 mm: horizontal FOV: 98°, vertical FOV: 55°, diagonal FOV: 114° |
4 mm: horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 93° | |
6 mm: horizontal FOV: 48°, vertical FOV: 27°, diagonal FOV: 54° | |
8 mm: horizontal FOV: 37°, vertical FOV: 21°, diagonal FOV: 44° | |
Lens Mount | M12 |
Adjustment Range | Pan: ° to 360°, tilt: ° to 90°, rotate: ° to 360° |
Day& Night | IR cut filter with auto switch |
Wide Dynamic Range | 120 dB |
Digital noise reduction | 3D DNR |
Compression Standard | |
Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
Video bit rate | 32Kbps~16Mbps |
Triple Streams | Yes |
Image | |
Max. Image Resolution | 2560 × 1440 |
Frame Rate | 50Hz:25fps (2560 × 1440, 2304 × 1296, 1920 × 1080) |
60Hz: 30fps (2560 × 1440, 2304 × 1296, 1920 × 1080) | |
Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) |
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) | |
Third Stream | 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) |
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) | |
Image Enhancement | BLC/3D DNR |
Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
Target Cropping | No |
ROI | 1 fixed region for main stream and sub-stream |
Day/Night Switch | Auto/Schedule |
Network | |
Network Storage | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
General Function | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy |
mask, Watermark, IP address filtering | |
System Compatibility | ONVIF (Profile S, Profile G),ISAPI |
Interface | |
Communication Interface | 1 RJ45 10M / 100M Ethernet interface |
On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
Reset Button | Yes |
Smart Feature-set | |
Behavior Analysis | Line crossing detection, intrusion detection |
Line Crossing Detection | Cross a pre-defined virtual line |
Intrusion Detection | Enter and loiter in a pre-defined virtual region |
Recognition | Face Detection |
General | |
Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
Humidity 95% or less (non-condensing) | |
Power Supply | 12 VDC ± 25%, PoE (802.3af Class3) |
Power Consumption | 12 VDC, 0.5A, max. 6W |
PoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 7.5W | |
Weather Proof | IP67 |
IR Range | Up to 30m |
Dimensions | Camera: Φ 70 × 155.03 mm (Φ 2.8" × 6.1") |
Package: 216 × 121 × 118 mm (8.5" × 4.8" × 4.7") | |
Weight | Camera: Approx. 420 g (0.9 lb.) |
With Package: Approx. 700 g (1.5 lb.) |
Haikon DS 2CD2043G0 I Mini IR IP Bullet Kamera Pdf Dosyası926.42 KB
Teknik Kısa
Irled : Var
Çözünürlük : 4MP
