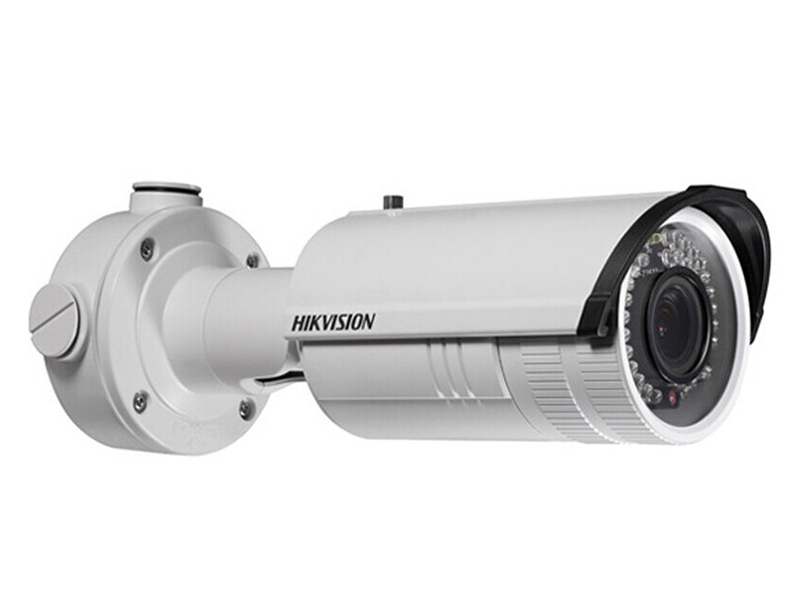

Haikon DS 2CD2632F IS IP HD Bullet Kamera
Teknik Özellikler
Camera |
Image Sensor : 1/3" Progressive Scan CMOS |
Min. Illumination : 0.07Lux @(F1.2,AGC ON) ,0 Lux with IR 0.1Lux @(F1.4,AGC ON), 0 Lux with IR |
Shutter time : 1/3s ~ 1/100,000s |
Lens : 2.8 - 12 mm @ F1.4,Angle of view: 105.2°-31.9° |
Lens Mount : φ14 |
Day& Night : IR cut filter with auto switch |
Wide Dynamic Range : Digital WDR |
Digital noise reduction : 3D DNR |
Compression Standard |
Video Compression : H.264/MJPEG |
Video bit rate : 32Kbps~12Mbps |
Audio Compression : G.711/G.722.1/G.726/MP2L2 |
Dual Stream : Yes |
Image |
Max. Image Resolution : 2048×1536 |
Frame Rate : 50Hz: 20fps (2048 × 1536), 25fps (1920 × 1080), 25fps (1280 × 720)/60Hz: 20fps (2048 × 1536), 30fps (1920 × 1080), 30fps (1280 × 720) |
Image Settings : Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
BLC : Yes, zone configurable |
ROI : Support |
Network |
Network Storage : NAS (Support NFS,SMB/CIFS) |
Alarm Trigger : Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
General Function : User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask |
System Compatibility : ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
Interface |
Communication Interface : 1 RJ45 10M / 100M Ethernet interface |
On-board storage : Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
Reset Button : Yes |
General |
Operating Conditions : -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
Power Supply : 12 VDC ± 10%, PoE (802.3af) |
Power Consumption : Max. 5.5 W (Max. 7.5 W with IR cut filter on) |
Weather Proof : IP66 |
IR Range : Up to 30m |
Dimensions : 95×105×258.6 mm (3.74” × 4.13” × 10.18”) |
Weight : 1200g |
NOTE : * “-S” series support 1-ch audio I/O and 1-ch alarm I/O |
Haikon DS 2CD2632F IS IP HD Bullet Kamera Pdf Dosyası923.22 KB
Teknik Kısa
Çözünürlük :
3MP
Irled :
Var
Depolama :
Var
