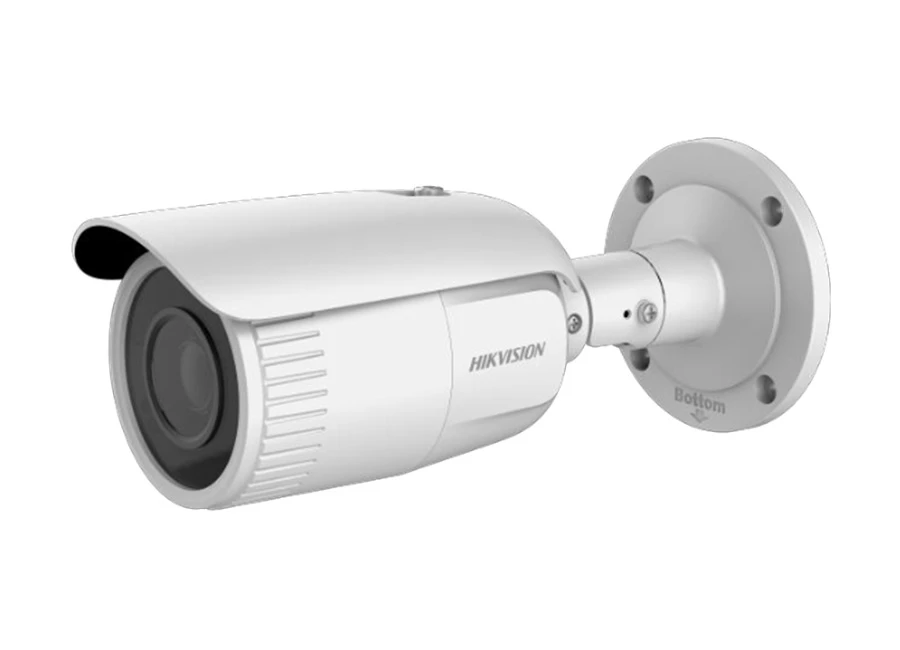

Hikvision DS 2CD1623G0 I IP Bullet Kamera
Özellikler
- Resolution: 2 MP (1920 x 1080)
- 2.8-12 mm / 98°- 34° varifocal lens
- H265+/H.265/H.264+/H.264/MJPEG video compression
- 3D-DNR, DWDR, BLC video processing functions
- IR illuminator with range up to 30 m (EXIR 2.0)
- Support for microSD/microSDHC/microSDXC cards up to 128 GB
- Access via Hik-Connect app
- Region of interest (ROI)
- ANR function
- Mechanically switching IR filter
- IP67 rating
- Power: 12 VDC or PoE (802.3af)
Teknik Özellikler
| Name | HIKVISION DS-2CD1623G0-I |
| Standard | IP |
| Housing | Compact (bullet) |
| Direction adjustment | 3-axis |
| Image sensor | 1/3" Progressive Scan CMOS |
| Sensitivity | 0.018 lx @ (F1.6, AGC ON), |
| 0 lx in IR mode | |
| Focal length/viewing angle | 2.8 -12mm @ F1.6 / 98 - 34o |
| Resolution | 1920 x 1080 px |
| Frame rate | 25 fps at 1920 x 1080 and lower res. |
| Video compression | H.265+/H.265/H.264+/H.264/MJPEG |
| Video streams | 2 |
| Bit rate range | 32 kb/s - 8 Mb/s |
| IR illuminator | 30 m (EXIR 2.0) |
| Video enhancement functions | 3D-DNR, DWDR, BLC |
| Mechanically switching IR filter | Yes |
| Gain | Automatic/Preset |
| Alarm events | Motion detection, video tampering |
| Intelligent image analysis | No |
| Corridor mode | No |
| ROI | Yes, 1 |
| ANR function | Yes |
| Recording | NAS (NFS/SMB/CIFS), FTP (screenshots) |
| Network interface | RJ-45 10/100 Base-T |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Standards | ONVIF (S, G profile), ISAPI |
| Housing material | Metal |
| IP rating | IP67 |
| Power | 12 VDC ± 25%, PoE 802.3af |
| Power consumption | Max: 12 VDC - 7 W; PoE - 9 W |
| Operating temperature range | -30°C...+60°C |
| Dimensions | Φ105 × 244 mm |
| Weight | 1.1 kg |
Hikvision DS 2CD1623G0 I IP Bullet Kamera Pdf Dosyası767.03 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
Irled : Var
