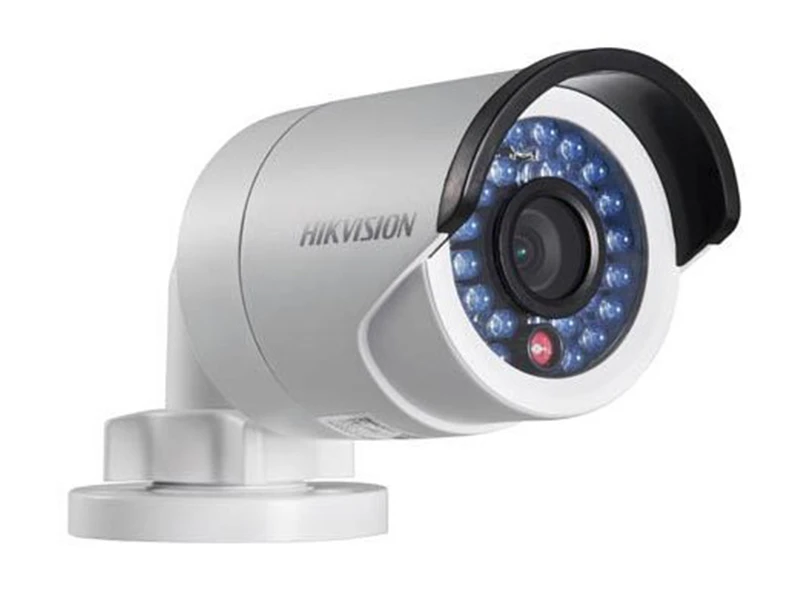

Hikvision DS 2CD2010 I IP Bullet Kamera

Teknik Özellikler

Camera
Image Sensor 1/3" Progressive Scan CMOS
İşaret Sistemi PAL/NTSC
Minimum Aydınlatma  0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR
0.028Lux @ (F2.0, AGC ON) ,0 Lux with IR
Objektif Hızı 1/3 s to 1/100,000 s
Lens  4mm@ F2.0, Angle of view: 73.1°
(6mm optional)
Lens Kurulumu M12
Auto Iris DC drive
Day& Night IR cut filter with auto switch
Geniş Dinamik Aralık Digital WDR
Dijtal Gürültü Azaltma 3D DNR
Compression Standard
Video Sıkıştırma H.264/MJPEG
Video Bit Hızı 32Kbps~8Mbps
Çift Akış Yes
Max. Image Resolution 1280x960
Çerçeve Hızı    50 Hz: 25 fps (1280 × 960), 25 fps (1280 x 720), 25 fps (704 x 576),
25 fps (640 x 480)
60 Hz: 30 fps (1280 × 960), 30 fps (1280 x 720), 30 fps (704 x 576),
30 fps (640 x 480)
Image Settings Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
BLC Yes, zone configurable
ROI support
3D DNR support
Network
Ağ Depolama NAS (Support NFS,SMB/CIFS)
Alarm Trigger Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protokoller  TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
General Function User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask
Sistem Uyumluluğu ONVIF, PSIA, CGI, ISAPI
Interface
İletişim Arayüzü 1 RJ45 10M / 100M Ethernet interface
General
Çalışma Sıcaklığı  -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 10%, PoE (802.3af)
GÜç Tüketimi Max. 4.8 W
Weather Proof IP67
IR Aralık Up to 30m
Boyutlar 70×154.2×60.5 mm (2.8” × 6.2” × 2.4”)
Ağırlık 500g (1.1 lbs)

pdfHikvision DS 2CD2010 I IP Bullet Kamera Pdf Dosyası464.29 KB

pdfHikvision DS 2CD2010 I IP Bullet Kamera Kullanıcı Kılavuzu (ing) Pdf Dosyası3.95 MB

Teknik Kısa

Çözünürlük : 1.3MP
Irled : Var
