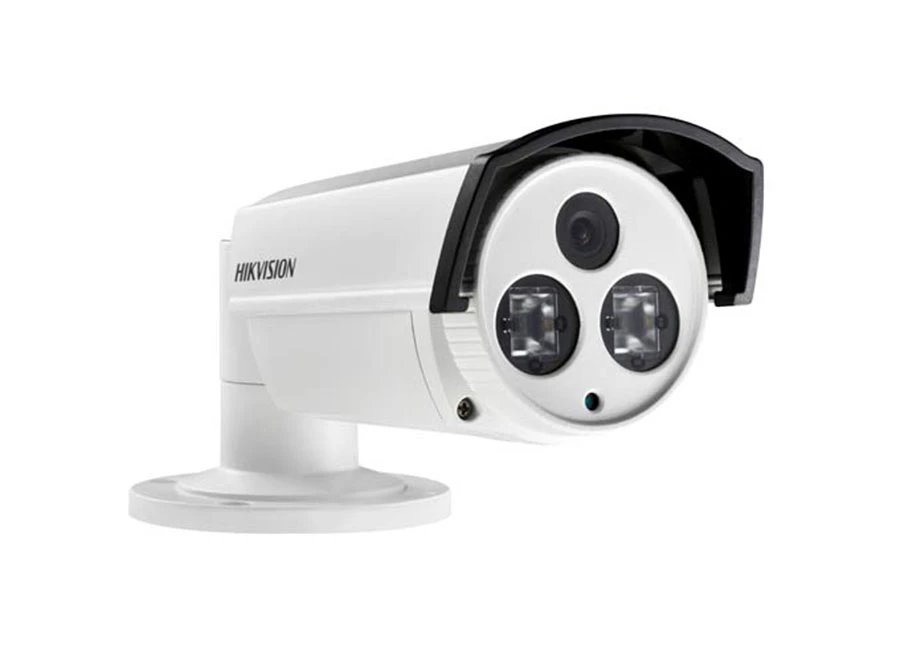

Hikvision DS 2CD2212 I5 IP HD Bullet Kamera
Özellikler
- 1.3 megapixel high resolution
- Low illumination
- 3D DNR & DWDR & BLC
- IP66 rating
- IR range: up to 50m
- True day / night
Teknik Özellikler
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Minimum Aydınlatma | 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR |
| Objektif Hızı | 1/3 s to 1/100,000 s |
| Lens | 4mm@ F2.0 (6mm, 12mm optional) |
| Angle of view: 73.1°(4mm), 46°(6mm), 22°(12mm) | |
| Lens Kurulumu | M12 |
| Day& Night | IR cut filter with auto switch |
| Geniş Dinamik Aralık | Digital WDR |
| Dijtal Gürültü Azaltma | 3D DNR |
| Compression Standard | |
| Video Sıkıştırma | H.264/MJPEG |
| Video Bit Hızı | 32Kbps~12Mbps |
| Çift Akış | Yes |
| Image | |
| Max. Image Resolution | 1280x960 |
| Çerçeve Hızı | 50 Hz: 25 fps (1280 × 960), 25 fps (1280 x 720), 25 fps (704 x 576), |
| 25 fps (640 x 480) | |
| 60 Hz: 30 fps (1280 × 960), 30 fps (1280 x 720), 30 fps (704 x 576), | |
| 30 fps (640 x 480) | |
| Image Settings | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
| BLC | Yes, zone configurable |
| ROI | Support |
| Network | |
| Ağ Depolama | NAS (Support NFS,SMB/CIFS) |
| Alarm Trigger | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm,
Network disconnect , IP address conflict, Storage exception |
| Protokoller | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, |
| PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour | |
| General Function | User Authentication, Watermark, IP address filtering, anonymous access, flickerless,
heartbeat, video mask |
| Sistem Uyumluluğu | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Interface | |
| İletişim Arayüzü | 1 RJ45 10M / 100M Ethernet interface |
| General | |
| Çalışma Sıcaklığı | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | |
| Power Supply | 12 VDC ± 10%, PoE (802.3af) |
| GÜç Tüketimi | Max. 7 W (Max. 9 W with IR cut filter on) |
| Weather Proof | IP66 |
| IR Aralık | Up to 50m |
| Boyutlar | 105×104.8×263.1mm (4.13” × 4.13” × 10.38”) |
| Ağırlık | 950g (2.09 lbs) |
Hikvision DS 2CD2212 I5 IP HD Bullet Kamera Pdf Dosyası518.01 KB
Teknik Kısa
Irled : Var
Çözünürlük : 1.3MP
Depolama : Var
