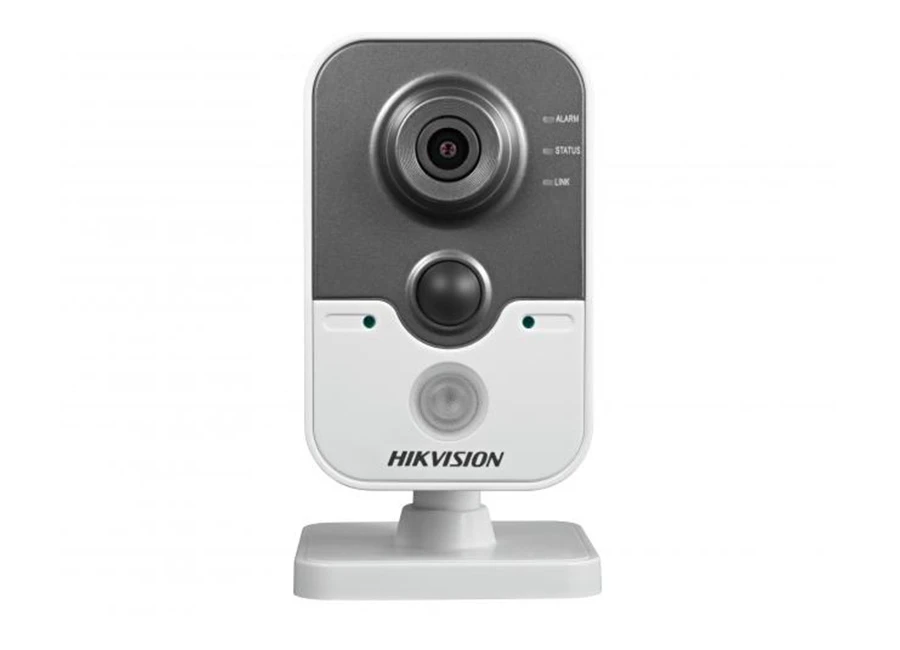

Hikvision DS 2CD2410F IW IP Küp Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | 1/4" progressive scan CMOS |
| İşaret Sistemi | PAL/NTSC |
| Minimum Aydınlatma | 0.01Lux @(F1.2,AGC ON) ,0 Lux with IR |
| 0.028Lux @ (F2.0, AGC ON) ,0 Lux with IR | |
| Objektif Hızı | 1/3 s to 1/100,000 s |
| Lens | 4mm@ F2.0, Angle of view 55° |
| (2.8mm, 6mm optional) | |
| Lens Mount | M12 |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | Digital WDR |
| Dijtal Gürültü Azaltma | 3D DNR |
| Compression Standard | |
| Video Compression | H.264/MJPEG |
| H.264 Türü | Main Profile |
| Video bit rate | 32Kbps~8Mbps |
| Audio Compression | -S G.711/G.722.1/G.726/MP2L2 |
| Ses Bit Hızı | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
| Image | |
| Max. Image Resolution | 1280 × 720 |
| Çerçeve Hızı | 50 Hz 25 fps (1280 x 720), 25 fps (704 x 576), 25 fps (640 x 480) |
| 60 Hz 30 fps (1280 x 720), 30 fps (704 x 576), 30 fps (640 x 480) | |
| Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| BLC | Yes, zone configurable |
| ROI | support |
| 3D DNR | support |
| Network | |
| Network Storage | Built-in Micro SD/SDHC/SDXC slot, up to 128G, NAS(NFS, SMB/CIFS) |
| Alarm Trigger | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
| Protokoller | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, |
| PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour | |
| General Function | One-key recovery, flash-prevention, three streams, heartbeat, mirror, password protection, video |
| mask, Watermark, IP address filtering, Anonymous access | |
| System Compatibility | ONVIF, PSIA, CGI, ISAPI |
| Interface | |
| Communication Interface | 1 RJ45 10M / 100M Ethernet interface |
| Alarm Girişi | 1 |
| Alarm Çıkışı | 1 |
| Wi-Fi Specification (-W) | |
| Kablosuz Standartlar | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Kanal Bant Genişliği | 20/40MHz Support |
| Modülasyon Modu | 802.11b CCK, QPSK, BPSK |
| 802.11g/n OFDM | |
| Güvenlik | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Güç İletim | 11b 17±1.5dBm @ 11Mbps |
| 11g 14±1.5dBm @ 54Mbps | |
| 11n 12.5±1.5dBm | |
| Alıcı Hassasiyeti | 11b -90dBm @ 11Mbps (Typical) |
| 11g -75dBm @ 54Mpbs (Typical) | |
| 11n -74dBm (Typical) | |
| İletim Hızı | 11b 11Mbps |
| 11g 54Mbps | |
| 11n up to 150Mbps | |
| Kablosuz Menzil | 50m(depend on environment) |
| Protokoller | 802.11b CCK, QPSK, BPSK |
| 802.11g/n OFDM | |
| General | |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | |
| Power Supply | 12 V DC ± 10%, PoE (802.3at) |
| GÜç Tüketimi | 5.5W MAX |
| IR Range | 10 meters |
| PIR | Angle 80° |
| Range 10m | |
| Boyutlar | 72.3×89.9×131.3mm (2.85”×3.54” ×5.17”) |
| Ağırlık | 400g(0.88lbs) |
Hikvision DS 2CD2410F IW IP Küp Kamera Pdf Dosyası468.12 KB
Hikvision DS 2CD2410F IW IP Küp Kamera Kullanıcı Kılavuzu (ing) Pdf Dosyası3.95 MB
Teknik Kısa
Çözünürlük : 1MP (720P)
Irled : Var
