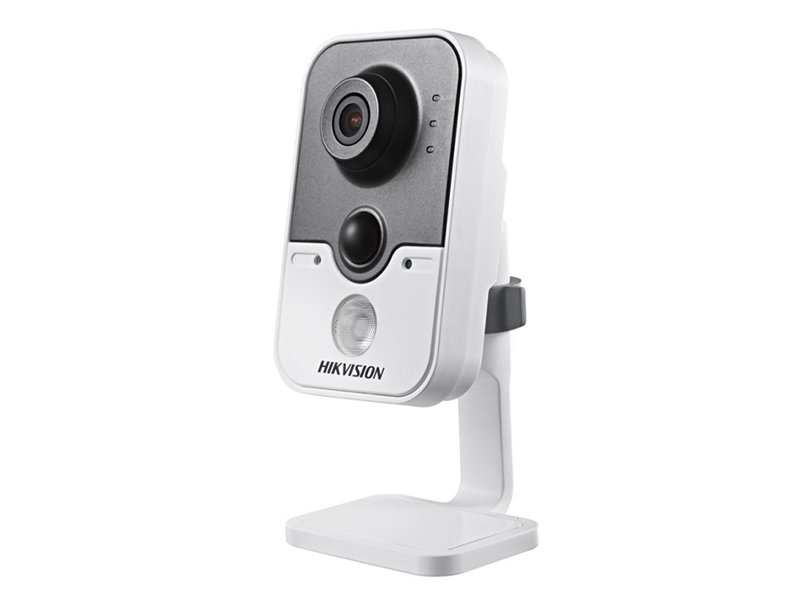

Hikvision DS 2CD2420F IW IP Küp Kamera

Özellikler

HD720p Video
Up to 10m IR
PIR
DWDR/3D DNR/BLC
Support On-board Storage, up to 128GB
Built-in Wi-Fi optional

Teknik Özellikler

Camera
Image Sensor	1/4" progressive scan CMOS
İşaret Sistemi	PAL/NTSC
Minimum Aydınlatma	0.01Lux @(F1.2,AGC ON) ,0 Lux with IR
Minimum Aydınlatma	0.028Lux @ (F2.0, AGC ON) ,0 Lux with IR
Objektif Hızı	1/3 s to 1/100,000 s
Lens	4mm@ F2.0, Angle of view: 55°
Lens	(2.8mm, 6mm optional)
Lens Kurulumu	M12
Day& Night	IR cut filter with auto switch
Geniş Dinamik Aralık	Digital WDR
Dijtal Gürültü Azaltma	3D DNR
Compression Standard
Video Sıkıştırma	H.264/MJPEG
H.264 Türü	Main Profile
Video Bit Hızı	32Kbps~8Mbps
Audio Compression	-S: G.711/G.722.1/G.726/MP2L2
Ses Bit Hızı	64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
Max. Image Resolution	1280 × 720
Çerçeve Hızı	50 Hz: 25 fps (1280 x 720), 25 fps (704 x 576), 25 fps (640 x 480)
Çerçeve Hızı	60 Hz: 30 fps (1280 x 720), 30 fps (704 x 576), 30 fps (640 x 480)
Image Settings	Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC	Yes, zone configurable
ROI	support
3D DNR	support
Network
Ağ Depolama	Built-in Micro SD/SDHC/SDXC slot, up to 128G, NAS(NFS, SMB/CIFS)
Alarm Trigger	Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protokoller	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
Protokoller	PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
General Function	One-key recovery, flash-prevention, three streams, heartbeat, mirror, password protection, video
General Function	mask, Watermark, IP address filtering, Anonymous access
Sistem Uyumluluğu	ONVIF, PSIA, CGI, ISAPI
Interface
İletişim Arayüzü	1 RJ45 10M / 100M Ethernet interface
Alarm Girişi	1
Alarm Çıkışı	1
Wi-Fi Şartnamesi (-W)
Kablosuz Standartlar	IEEE802.11b, 802.11g, 802.11n
Frekans Aralığı	2.4 GHz ~ 2.4835 GHz
Kanal Bant Genişliği	20/40MHz Support
Modülasyon Modu	802.11b: CCK, QPSK, BPSK
Modülasyon Modu	802.11g/n: OFDM
Güvenlik	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Güç İletim	11b: 17±1.5dBm @ 11Mbps
	11g: 14±1.5dBm @ 54Mbps
	11n: 12.5±1.5dBm
Alıcı Hassasiyeti	11b: -90dBm @ 11Mbps (Typical)
	11g: -75dBm @ 54Mpbs (Typical)
	11n: -74dBm (Typical)
İletim Hızı	11b: 11Mbps
	11g: 54Mbps
	11n: up to 150Mbps
Kablosuz Menzil	50m(depend on environment)
Protokoller	802.11b: CCK, QPSK, BPSK
Protokoller	802.11g/n: OFDM
General
Çalışma Sıcaklığı	-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Çalışma Sıcaklığı	Humidity 95% or less (non-condensing)
Power Supply	12 V DC ± 10%, PoE (802.3at)
GÜç Tüketimi	5.5W MAX
IR Aralık	10 meters
PIR	Angle: 80°
PIR	Range: 10m
Boyutlar	72.3×89.9×131.3mm (2.85”×3.54” ×5.17”)
Ağırlık	400g(0.88lbs)
