Açıklama

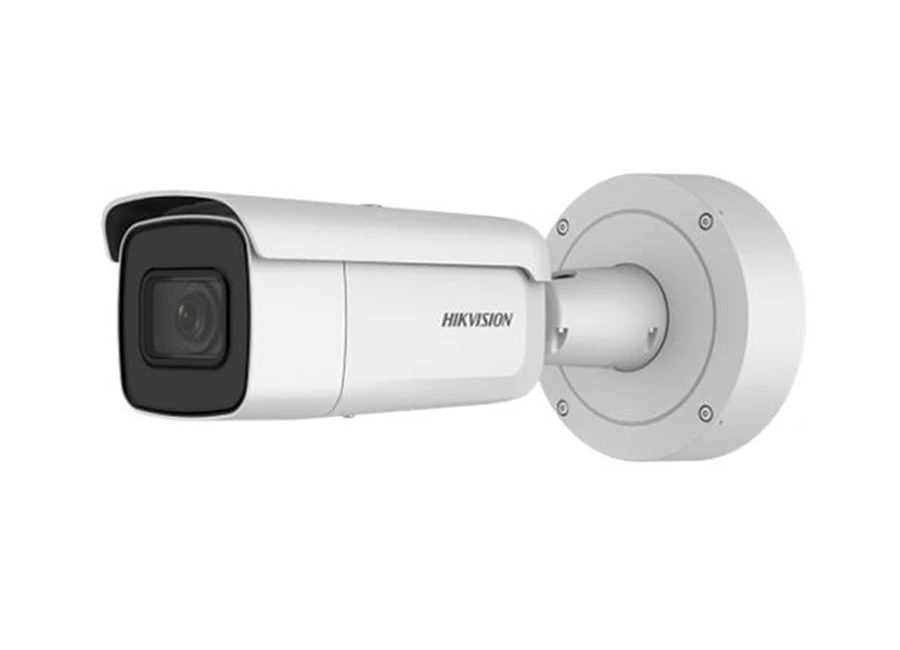

Hikvision DS 2CD2685G0 IZS IP Bullet Kamera

Özellikler

1/2" Progressive Scan CMOS
3840 × 2160 resolution
H.265, H.265+, H.264+, H.264
120dB WDR
BLC/3D DNR/ROI/HLC
IP67, IK10
Powered by Darkfighter
4 behavior analyses and face detection
Color 0.008 Lux @ (F1.2, AGC ON), 0.011 Lux @ (F1.4, AGC ON)

Teknik Özellikler

Camera
Image Sensor	1/2" Progressive Scan CMOS
İşaret Sistemi	PAL/NTSC
Minimum Aydınlatma	Color 0.008 Lux @ (F1.2, AGC ON), 0.011 Lux @ (F1.4, AGC ON)
Slow shutter	Support
Objektif Hızı	1/3 s to 1/100,000 s
Lens	2.8 to 12 mm
Lens Mount	φ14
Ayarlanan Aralık	Pan 0° to 360°, tilt 0° to 90°, rotate 0° to 360°
Day& Night	IR cut filter with auto switch
Wide Dynamic Range	120 dB
Dijtal Gürültü Azaltma	3D DNR
Focus	Auto
Compression Standard
Video bit rate	32Kbps~16Mbps
Ses Bit Hızı	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Üçüncü Akım	Yes
Ana Akış	50Hz 25fps (640 × 480, 640 × 360, 320 × 240)
Ana Akış	60Hz 30fps (640 × 480, 640 × 360, 320 × 240)
Çerçeve Hızı	50Hz 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
Çerçeve Hızı	60Hz 20 fps (3840 × 2160), 30 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
Üçüncül Akış	50Hz 25fps (1280 ×720, 640 × 360, 352 × 288)
Üçüncül Akış	60Hz 30fps (1280 ×720, 640 × 360, 352 × 240)
Görüntü İyileştirme	BLC/3D DNR
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
ROI	Support 1 fixed region for main stream and sub stream separately
Gündüz / Gece Anahtarı	Day/Night/Auto/Schedule/Triggered by Alarm In
Network
Protokoller	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function	One-key recovery, Anti-Flicker, three streams, heartbeat, mirror, password protection, video
General Function	mask, Watermark, IP address filtering
System Compatibility	ONVIF (Profile S, Profile G), ISAPI
Interface
Audio	1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
Communication Interface	1 RJ45 10M / 100M Ethernet interface
Alarm	1 input, 1 output (max. 12 VDC, 30 mA)
Video Output	1Vp-p Composite Output(75Ω/CVBS) (For adjustment only)
Dahili Depolama	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Butonu	Yes
Audio
Çevre Gürültü Filtreleme	Support
Smart Feature-set
Sınır İhlali	Cross a pre-defined virtual line
Saldırı Algılama	Enter and loiter in a pre-defined virtual region
Bırakılan Eşya	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Alınan Eşya	Objects removed from the pre-defined region, such as the exhibits on display.
General
Operating Conditions	-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Operating Conditions	Humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 25% PoE (802.3at, class 4)
GÜç Tüketimi	12 VDC, 1.2A, max. 14.5W
GÜç Tüketimi	PoE (802.3at, 42.5V to 57V), 0.5A to 0.3A, max. 18W
Weather Proof	IP67
IR Range	Up to 50m
Boyutlar	Camera Φ144 × 332.7 mm (Φ5.7"× 13.1")
Ağırlık	Camera 1400 g (3.1 lb.)
Ağırlık	With package 2500 g (5.5 lb.)
