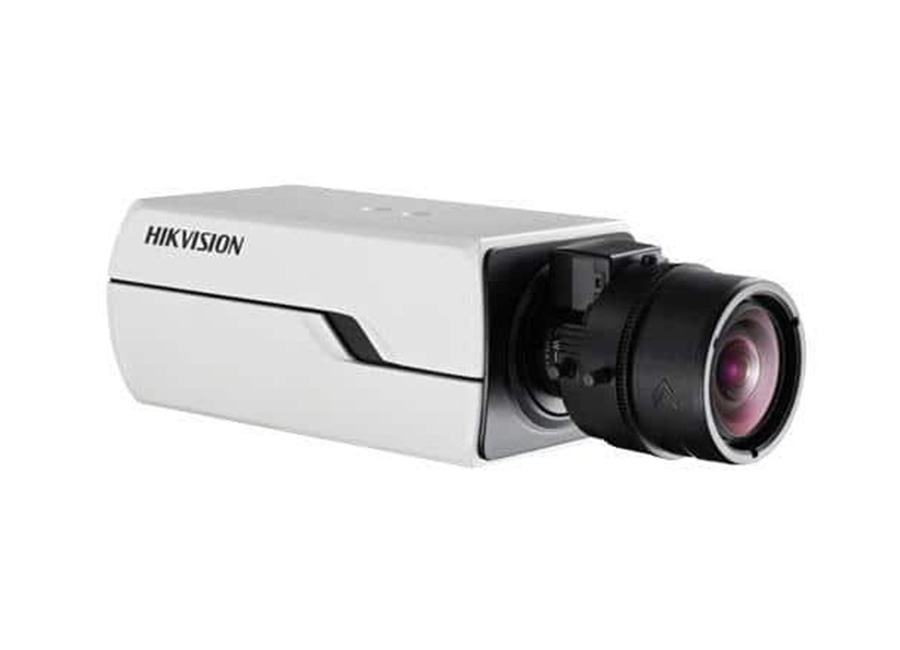

Hikvision DS 2CD4035FWD AP IP Box Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor: | 1/2.8" Progressive Scan CMOS |
| Min. Illumination: | Color: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.0005 Lux @ (F1.2, AGC ON) |
| Shutter time: | 1 s to 1/100,000 s |
| Slow shutter: | Support |
| Lens Mount: | C/CS mount |
| Auto Iris: | DC drive(-P: support P-Iris) |
| Day& Night: | IR cut filter with auto switch |
| Wide Dynamic Range: | 120 dB |
| Focus: | ABF(-A model) |
| Compression Standard | |
| Video Compression: | H.264/MJPEG/H.264+ |
| H.264 code profile: | Baseline Profile / Main Profile / High Profile |
| Video bit rate: | 32Kbps~16Mbps |
| Audio Compression: | G.711/G.722.1/G.726/MP2L2 |
| Audio bit rate: | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
| Triple Streams: | Yes |
| Image | |
| Max. Image Resolution: | 2048×1536 |
| Sub Stream: | 50Hz: 50fps (2048 × 1536,1920 × 1080,1280 × 720) |
| 60Hz: 48fps@ (2048 × 1536), 60fps (1920 × 1080,1280 × 720) | |
| Frame Rate: | 50Hz: 45fps(2048 × 1536), 50fps@(1920 × 1080, 1280 x 720) |
| 60Hz: 45fps(2048 × 1536), 60fps@(1920 × 1080, 1280 x 720) | |
| Third Stream: | Independent with Main Stream and Sub Stream, up to |
| 50Hz: 25fps (2048 × 1536) | |
| 60Hz: 30fps (2048 × 1536) | |
| Image Enhancement: | BLC/3D DNR/ROI/Defog |
| Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| Target Cropping: | Support |
| BLC: | Support |
| Smart Defog: | Support |
| 3D DNR: | Support |
| ROI: | Support |
| Picture Overlay: | LOGO picture can be overlaid on video with 128x128 24bit bmp format |
| Day/Night Switch: | Auto/Schedule/Triggered by Alarm In |
| Network | |
| Network Storage: | NAS (Support NFS,SMB/CIFS) |
| Alarm Trigger: | Motion detection, Dynamic Analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception |
| Protocols: | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, |
| PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour | |
| General Function: | User Authentication, Watermark, IP address filtering, Anonymous access |
| System Compatibility: | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Interface | |
| Audio: | 1-ch 3.5 mm audio in( Mic in/Line in)/out interface, 1 build-in Microphone |
| Communication Interface: | 1 RJ45 10M/100M Ethernet port, 1 RS-485 interface and 1 RS-232 interface |
| Alarm Input: | 1 |
| Alarm Output: | 1 |
| Video Output: | 1Vp-p Composite Output (75 Ω, BNC) |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button: | Yes |
| Audio | |
| Environment Noise Filtering: | Support |
| Audio I/O: | Support dual audio track, stereo |
| Audio Sampling Rate: | 16kHz / 32kHz / 44.1kHz / 48kHz |
| Smart Feature-set | |
| Behavior Analysis: | Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal |
| Line Crossing Detection: | Cross a pre-defined virtual line |
| Intrusion Detection: | Enter and loiter in a pre-defined virtual region |
| Region Entrance: | Enter a pre-defined virtual region from the outside place |
| Region Exiting: | Exit from a pre-defined virtual region |
| Unattended Baggage: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
| Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display. |
| Exception Detections: | Scene change detection, Sudden audio increase/decrease detection, Audio loss detection, Defocus detection |
| Recognition: | Face detection recognition |
| Statistics: | Object Counting (Entrance and Exit object number is accounted and showed on screen in real time) |
| General | |
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | |
| Power Supply: | 24VAC± 10%, 12 VDC ± 10%, PoE (802.3af) |
| Power Consumption: | Max. 6 W (Max. 9W with IR cut filter on) |
| Dimensions: | 69.8×58×145 mm (2.68” × 2.56” × 5.70”) |
| Weight: | 830 g (1.83 lbs) |
Hikvision DS 2CD4035FWD AP IP Box Kamera Pdf Dosyası863.96 KB
