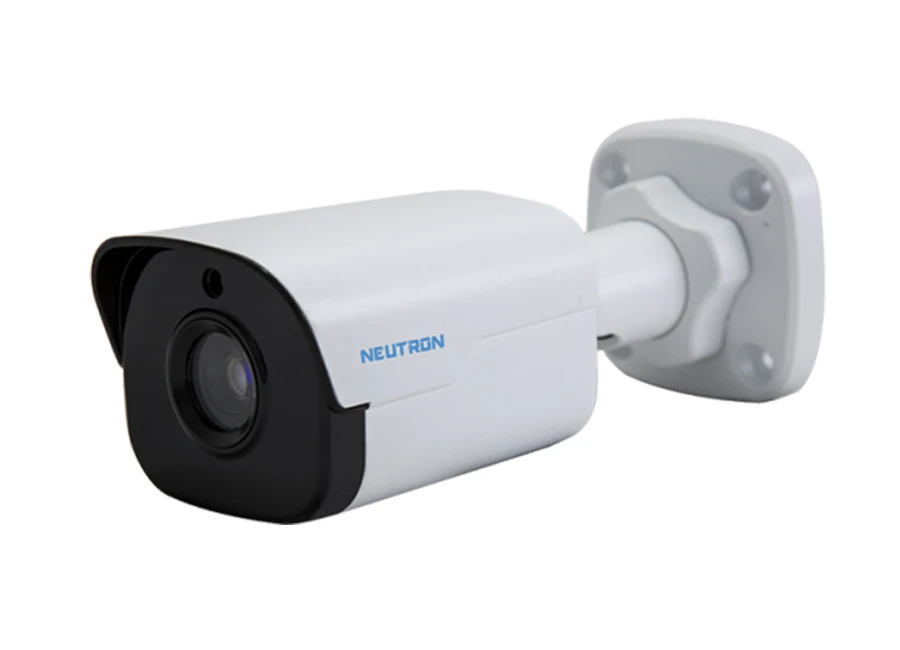

Neutron IPC2122SR3 APF40 C IP Bullet Kamera
Özellikler
Teknik Özellikler
| IPC2122SR3-APF40-C | IPC2122SR3-APF60-C | ||||||
| Camera | |||||||
| Sensor | 1/2.7", progressive scan,2.0 megapixel, CMOS | ||||||
| Lens | 4.0mm@ F1.6 | 6.0mm@ F1.6 | |||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | ||
| 4mm | 60 | 24 | 12 | 6 | |||
| 6mm | 90 | 36 | 18 | 9 | |||
| Angle of View(H) | 80.8° | 54.9° | |||||
| Angle of View (V) | 44.1° | 30.2° | |||||
| Angle of View (O) | 99.4° | 67.5° | |||||
| Adjustment angle | Pan: 0°~360° | Tilt: 0°~90° | Rotate: 0°~360° | ||||
| Shutter | Auto/Manual, 1~1/100000 s | ||||||
| Minimum Illumination | Colour: 0.005 Lux (F1.6, AGC ON) | ||||||
| 0 Lux with IR on | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| S/N | >52dB | ||||||
| IR Range | Up to 30m (98 ft) IR range | ||||||
| Defog | Digital Defog | ||||||
| WDR | DWDR | ||||||
| Video | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||||
| Frame Rate | Main Stream:2MP (1920×1080): Max. 30 fps; | ||||||
| Sub Stream: 2MP (1920×1080): Max. 30 fps; | |||||||
| Third Stream:D1 (720×576): Max. 30 fps | |||||||
| 9:16 Corridor Mode | Supported | ||||||
| HLC | Supported | ||||||
| BLC | Supported | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 8 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| Smart | |||||||
| Behavior Detection | Intrusion, cross line, motion detection | ||||||
| Intrusion | Enter and loiter in a pre-defined virtual region | ||||||
| cross line | Cross a pre-defined virtual line | ||||||
| motion detection | Moving within a pre-defined virtual region | ||||||
| Recognition | Face detection、Audio detection | ||||||
| Intelligent Identification | Defocus, Scene Change, Object Left, Object Moving | ||||||
| Statistical Analysis | People counting | ||||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||||
| Audio | |||||||
| Audio Compression | G.711 | ||||||
| Suppression | Supported | ||||||
| Sampling Rate | 8 KHZ | ||||||
| Network | |||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP | ||||||
| Compatible Integration | ONVIF(Profile S, Profile T), API | ||||||
| Interface | |||||||
| Alarm I/O | 1/1 | ||||||
| Built-in Mic | Supported | ||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||||
| General | |||||||
| Power | DC 12 V±25%, PoE (IEEE802.3 af) | ||||||
| Power consumption: Max 6.0 W | |||||||
| Dimensions (L × W × H) | 157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”) | ||||||
| Weight | 0.45 kg (0.99 lb) | ||||||
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity :10%~95% RH(non-condensing) | ||||||
| Ingress Protection | IP67 | ||||||
| Reset Button | Supported | ||||||
Teknik Kısa
Çözünürlük : 2MP (1080P)
