Açıklama

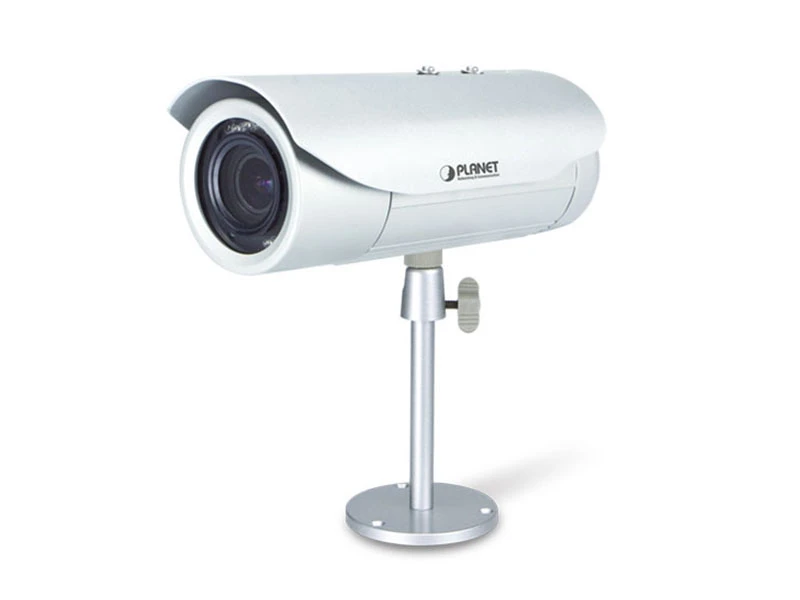

Planet ICA E3550V IP Bullet Kamera
Özellikler
Camera
- 1/3.2" 5 mega-pixel progressive scan CMOS sensor
- 2.8~12 mm vari-focal, fixed-iris lens
- 0.1 lux minimum illumination at F1.4
- Maximum resolution 2592 x 1944
- Removable IR-cut filter for Day & Night function
Video and Audio
- H.264/MJPEG video compression
- Simultaneous multi-stream support
- H.264 high profile, main profile and baseline
- Max. resolution of 1080p at 30fps and 5 mega-pixel at 15fps
- 3DNR to improve picture quality at low lux
- WDR enhancement function strengthens visibility under extremely bright or dark environments
- Two-way audio support with enhanced audio quality
Network and Configuration
- Compliant with IEEE 802.3af PoE interface for flexible deployment
- Supports both IPv6 and IPv4 protocols
- RTSP/UPnP/Bonjour/HTTPS protocols selectable
Easy Installation and Management
- ONVIF compliant for interoperability
- Built-in 15 IR illuminators, effective up to 30 meters
- IK10 and IP68 classification with vandal and weather proof
- Micro SD card local video recording supported
- Digital Input/Output for integration with sensors and alarms
- Cam viewer E-series software supported – CV7L, CV7-VA, CV7-LP and Mobile App
Teknik Özellikler
Camera | |
Image Device | 1/3.2" 5 mega-pixel progressive scan CMOS Sensor |
Lens | Vari-focal 2.8~12 mm, fixed-iris |
Mechanical IR-cut filter | |
Angle of view: horizontal: 28.2~69.2 degrees | |
Min Illuminator | 0.1 lux @ F1.4 |
IR Illumination LED | IR LED*15, 850nm |
Built-in IR illuminators, effective up to 30 meters | |
Effective Pixels | 2592 x 1944 pixels |
Image | |
Video Encoder | H.264/MJPEG |
Video Profile | H.264: 2592 x 1944, 2048 x 1536, 1920 x 1080, 1280 x 720, 800 x 600, 640 x 480 |
MJPEG: 2592 x 1944, 2048 x 1536, 1920 x 1080, 1280 x 720, 800 x 600, 640 x 480 | |
Frame Rate | 5MP up to 15fps |
Full HD up to 30fps | |
Image Setting | Video Flipping/Video Mirroring, Brightness, Contrast, 3DNR, WDR (74dB) |
Streaming | Simultaneous dual streams based on two configurations |
Controllable frame rate and bandwidth | |
Constant and variable bit rate | |
Audio | |
Compression | 8KHz, mono, PCM, 16-bit encoding; G.711 |
Audio Input | Cable with 3.5mm phone jack |
Audio Output | Cable with 3.5mm phone jack |
Network and Configuration | |
Network Standard | IEEE 802.3 10BASE-T |
IEEE 802.3u 100BASE-TX | |
Security | Password protection, IP address filtering, HTTPS encryption, anonymous login, 802.1X network access control |
Users | 10 simultaneous unicast users |
Protocol and Service | TCP, UDP, HTTP, HTTPs, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, PLANET DDNS, PLANET Easy DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
System Integration | |
Application Programming Interface | Software Development Kit (SDK) available; ONVIF compliant |
Alarm Triggering | Video motion detection (3 regions) |
Alarm Events | Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video and snapshot to FTP server; Activate external device through digital output |
General | |
Power Supply | PoE Class 2 (IEEE 802.3af) |
Power Consumption | PoE: 5.76W (IR On) |
Housing | IK10 and IP68 classification with vandal and weather proof |
Operating Temperature | -40 ~ 50 degrees C |
Operating Humidity | 10 ~ 85% (non-condensing) |
Weight | 955g |
Dimensions (Φ x L) | 77 x 218 mm |
Emission | CE, FCC |
Connectors | 10/100 Mbps Ethernet, RJ45 |
Reset button | |
Digital Input (1, Terminal block) | |
Digital Output (1, Terminal block) | |
Micro SDHC/Micro SDXC card slot (max. 32GB, class 10) |
Teknik Kısa
Çözünürlük : 5MP
Irled : Var
