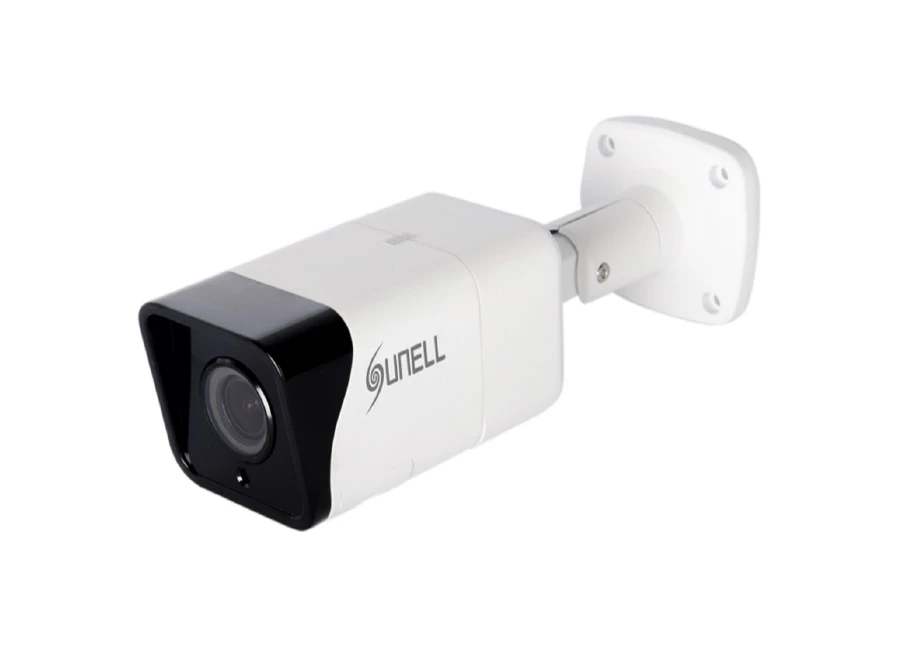

Sunell SN IPR5821BZAN J2 Z IP Bullet Kamera
Özellikler
- 1/2.8” Progressive Scan CMOS
- 2.7~13.5mm motorized lens
- 25fps/30fps@2MP(1920*1080)
- Triple StreamsSupport face, human body, vehicle, non-motor detection and capture
- High performance, up to 300 faces, human body and 40 vehicles detection per frame
- WDR, 3D DNR, ROI, Defog, HLC, Anti-shake
- Smart IR Up to 40m
- IP67
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Effective Pixels | 1920(H)×1080(V) |
| Electronic Shutter | 1/5-1/20,000s |
| Min. illumination | Color: 0.01Lux @(F1.2,AGC ON) , |
| B/W: 0Lux @(IR LED ON) | |
| S/N Ratio | 55dB |
| Day/Night | ICR |
| Wide Dynamic | WDR (120dB) |
| Range | |
| IR Range | Up to 40m |
| IR On/Off Control | Auto/ Manual |
| IR LEDs | 30pcs |
| Pan/Tilt/Rotation Range | Pan: 0˚~360˚, Tilt: 0˚~90˚, Rotation: 0˚~360˚ |
| Lens | |
| Lens Type | Motorized |
| Iris | Fixed Iris |
| Focal Length | 2.7~13.5mm |
| F Number | F1.6 |
| Angle of View | H: 105°~ 30°, V: 55°~15° |
| Focus Control | Motorized |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Max. Resolution | 1080P(1920×1080) |
| Streaming Capability | 3 Streams |
| Stream / | Stream1: 1920×1080/1280×720 @25/30fps |
| Frame Rate | Stream2: D1/VGA/640×360/CIF/QVGA @25/30fps |
| Stream3: VGA/CIF/QVGA @25/30fps | |
| Bit Rate Control | CBR/VBR |
| Bit Rate | Stream1: 500kbps~12000kbps |
| Stream2: 100kbps~6000kbps | |
| Stream3: 100kbps~3000kbps | |
| Image Enhancement | HLC / BLC / Anti-shake / Defog / WDR (120dB) |
| White Balance | Support |
| Gain Control | Auto/Manual |
| Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Mirror | Support |
| Aisle Mode | N/A |
| Region of Interest | Support |
| Motion Detection | Support |
| Privacy Masking | Support |
| Audio | |
| Compression | G.711, RAW_PCM |
| Bit Rate | 8kbps, 16kbps, 64kbps |
| Network | |
| Protocols | IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP |
| Interoperability | ONVIF, SDK, CGI |
| Streaming Method | Unicast |
| Max. User Access | 10 Users |
| Web Viewer | <IE11, Chrome, Firefox |
| Management Software | SunView |
| Smart Phone | IOS, Android |
| Intelligence | |
| IVS | Perimeter, Single Virtual Fence, Double Virtual Fences, Multi Loiter, Converse, People counting |
| Support alarm triggering by specified target types (human and vehicle).Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc. | |
| Smart Detection | Detects face, human body, vehicle and non-motor automatically detection and capture |
| Interface | |
| Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Audio | 1ch Input, 1ch Output |
| Alarm | 1ch Input, 1ch Output |
| CVBS Output | N/A |
| Reset Button | Support |
| Storage | Built-in Micro SD/SDHC/SDXC slot, up to 128G |
| Electrical | |
| Power Supply | DC12V/POE (IEEE 802.3af) |
| Power Consumption | <8.5W |
| Operating Temperature | -30°C ~ 50°C (-22°F ~ 122°F ) |
| Operating Humidity | Less than 90% RH |
| Ingress Protection | IP67 |
| Certifications | CE / FCC |
| Casing | Metal |
| Dimensions | 232×74.8×80mm |
| Net Weight | 700g |
Sunell SN IPR5821BZAN J2 Z IP Bullet Kamera Pdf Dosyası580.62 KB
Sunell SN IPR5821BZAN J2 Z IP Bullet Kamera Kullanım Kılavuzu (ing) Pdf Dosyası1.48 MB
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 2MP (1080P)
Irled : Var
