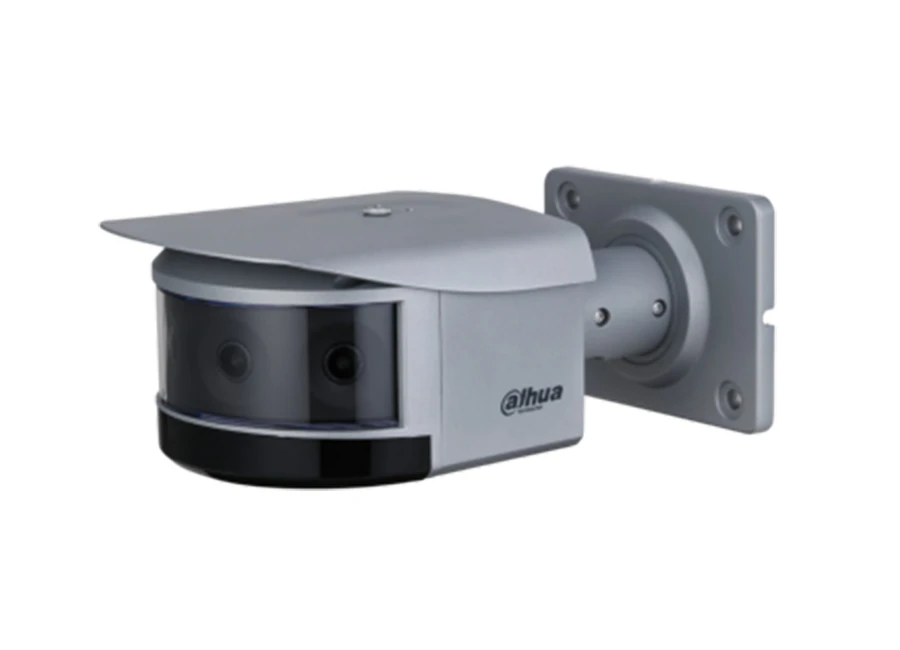

Dahua IPC PFW83242 A180 Panoramik IP Bullet Kamera
Özellikler
- 4 × 8MP, 1/1.8" CMOS image sensor, low illuminance, high image definition
- Outputs max. 32MP (8192 × 3840) @25/30 fps; with intelligent functions enabled, it can output 32MP (8192 × 3840) @25 fps
- Built-in IR LED, max. IR distance: 30 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- Intelligent detection: Intrusion, tripwire
- Intelligent functions: Crowd distribution map, Vehicle situation
- Supports object tracking and image correction
- Support video clip, the image can be clipped as needed
- Supports max. 256 G Micro SD card
- 12V DC power supply
- IP67, IK10 protection
Teknik Özellikler
| Camera | |
| Image Sensor | 1/1.8” 8Megapixel progressive CMOS |
| Max. Resolution | 8192 (H) × 3840 (V) |
| ROM | 4 GB |
| RAM | 8 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.005 @F1.6 |
| S/N Ratio | >56 dB |
| Illumination Distance | 30 m (98.4 ft) (IR LED) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 8 (IR LED) |
| Pan/Tilt/Rotation Range | Tilt: 0°–90° |
| Rotation: 0°–360° | |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.6 |
| Field of View | Horizontal: 180°; vertical: 90° |
| Iris Type | Fixed |
| Close Focus Distance | 1.8 m (5.9 ft) |
| DORI Distance | Detect |
| 84.0 m | |
| ( 275.6 ft) | |
| Professional, intelligent | |
| Vehicle Situation | Vehicle density; parking upper limit; |
| vehicle congestion alarm | |
| IVS (Perimeter Protection) | Intrusion; tripwire |
| Crowd Distribution Map | Crowd map, global people counting; people counting in area |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.264+/Smart H.265+ |
| Video Frame Rate | Main stream: 8192 × 3840 (1–25/30 fps) |
| Sub stream: 1280 × 600 (1–25/30 fps) | |
| Third stream: 2304 × 1080 (1–25/30 fps) | |
| Stream Capability | 3 streams |
| Resolution | Splicing: |
| 32M (8192 × 3840); 7680 × 3600; 7168 × 3360; 6720 × 3152; 5760 × 2700; 4800 × 2252; 4096 × 1920; 2880 × 1360; 2304 × 1080; 1280 × 600; 2408 × 960; 1520 × 712 | |
| Non-splicing: | |
| 4320 × 7680; 2880 × 5120; 2160 × 3840; 720 × 1280; 1080 × 1920 | |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 96 kbps–65536 kbps |
| H.265: 38 kbps–55612 kbps | |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Audio Compression | G.711A; G.711Mu; G.726; AAC; G.723 |
| Alarm Event | |
| Alarm Event | No SD card; SD card full; SD card error; service life warning; network disconnection; IP conflict; illegal access; voltage detection; safety exception; motion detection; video tampering; scene changing; Input Abnormal detection; intensity change detection; external alarm; tripwire; intrusion; crowd density detection; traffic congestion; maximum vehicle |
| Network | |
| Network | RJ-45 (10/100/1000 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; RTMP |
| User/Host | 20 |
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Browser | IE7; IE11 |
| Management Software | Smart PSS; DSS |
| Certification | |
| Certifications | CE-LVD: EN62368-1 |
| CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU | |
| FCC: 47 CFR FCC Part 15, Subpart B | |
| UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 | |
| Port | |
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 2 channels in: 5mA 3V–5V DC |
| Alarm Output | 2 channels out: 1,000mA 30V DC/500mA 50V DC |
| Power | |
| Power Supply | 12V DC |
| Power Consumption | Basic power consumption: 13.6W (12V DC) |
| Max. power consumption (Intelligent functions enabled + IR full intensity + WDR ): 24.3W (12V DC) | |
| Environment | |
| Operating Temperature | –40°C to +60°C (–40°F to +140°F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40°C to +60°C (–40°F to +140°F) |
| Protection Grade | IP67; IK10 |
| Structure | |
| Casing | Metal |
| Dimensions | 297.0 mm × 169.0 mm × 120.0 mm |
| (11.7" × 6.7" × 4.7") (L × W × H) | |
| Net Weight | 3.16 kg (7.0 lb) |
| Gross Weight | 4.06 kg (9.0 lb) |
Teknik Kısa
Depolama : Var
Çözünürlük : 32MP
Irled : Var
Ses : Var
