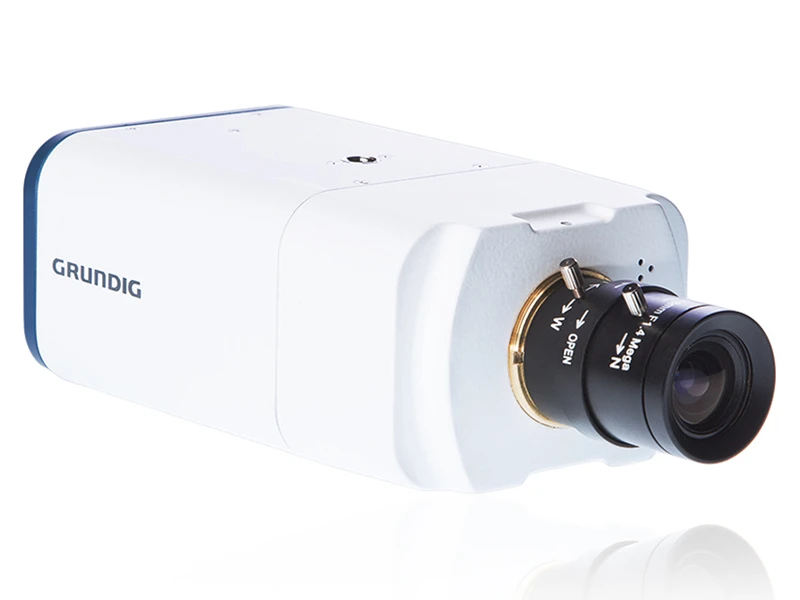

Grundig GCI K1603B IP HD Box Kamera
Teknik Özellikler
Image Sensor : 2 Megapixel, 1/2.7" CMOS Omnivision |
Pixels - Total : 1920(H) x 1080(V) |
Col/B&W : Auto (Electronic) / Color / B/W |
Sensitivity Colour : 0.5 Lux @ F1.2 (IRE50), 0.2 Lux @ F1.2 (IRE30) |
Lens Mount : C/CS mount with adaptor |
Lens : Drive Type Auto iris (DC) |
Shutter Speed : 1 sec to 1/10,000 sec |
BLC : On/Off |
WDR : Off/Low/Middle/High |
Digital Noise Reduction (DNR) : On/off 2D/3D Noise Filter |
Motion Detection : On/ Off/ Sensitivity/ Area setting |
Tampering Alarm : On/Off |
Privacy zones : 5 zones, rectangle |
White Balance : ATW, AWB, Manual |
Digital Zoom : Yes |
Camera ID : 20 character |
Alarm Inputs : 1 |
Alarm Outputs : 1 |
Web Browser : MS Internet Explorer 6.0 (or higher), Firefox, Google Chrome, Safari |
Number of Clients : Up to 20 user |
Video Compression : H.264, MJPEG |
Video Resolution : 1920x1080p(13fps), 1280x1024(25fps), 1280x720(25fps), 1024x768(25fps),etc. * |
Video Streaming : Quad stream: max.: H.264+H.264+H.264+H.264 or H.264+H.264+H.264+MJPEG |
Network Protocol : IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, DHCP, PPPoE, UPnP, SMTP, ICMP, IGMP, SNMP, IEEE802.1x, QoS, ONVIF, FTP |
SD memory : Supports up to 32 GB capacity of micro SD/SDHC memory |
Alarm Event : Alarm Input, Motion Detection or Schedule: Image transfer or alarm message by FTP, Image transfer or alarm message by E-mail, recording on SD-card and enable alarm output |
Audio Compression : G.726, G.711 |
LED Indicator : Power, link, active |
Video Outputs : 1Vpp, BNC |
Input/Output sockets : Video OUT(BNC), Power(DC Jack), RJ-45, Micro SD Card Slot, Alarm Terminal 4-Pin(Alarm In 2-Pin, Alarm Out 2-Pin), Audio (2 mini Jack 3.5mm) |
Firmware Upgrade : Firmware upgrade by Web Browser |
Configuration : Upload & Download configuration on remote PC |
Operating Temperature : -10°C ~ +50°C |
Humidity : 10 ~ 90% no condensation |
Regulation : CE, FCC, RoHS Compliant |
Supply Voltage : 12 VDC / PoE IEEE 802.3af |
Power Consumption : 4 W |
Weight : 0.36 kg |
Dimensions w*h*d : 76 x 53 x 126 mm |
Teknik Kısa
Çözünürlük : 2MP (1080P)
Depolama : Var
Ses : Var
