Açıklama

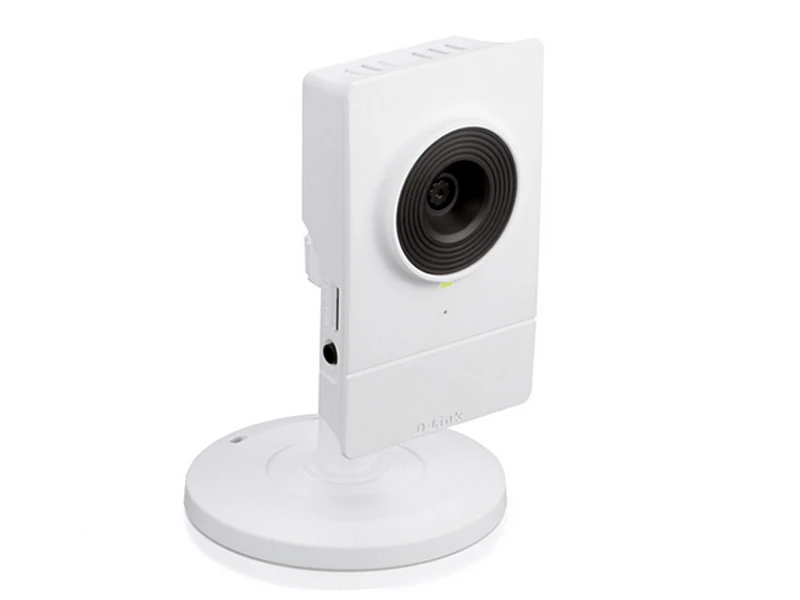

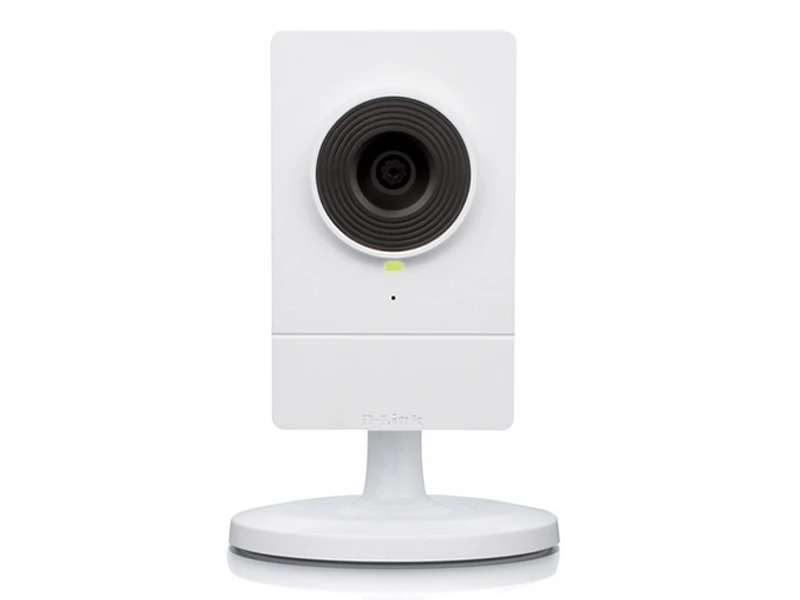

D-Link DCS 2103 IP HD Küp Kamera
Özellikler
- 1/4” 1 Megapixel CMOS progressive sensor
- Real-time H.264, MPEG-4 and Motion JPEG compression
- HD resolution (1280x720) and up to 1M (1280x800)
- Fixed lens 3.45 mm F2.0
- Simultaneous multi-stream support
- ePTZ
- Supports multiple access list
- Privacy Mask feature
- Micro SD Card slot
- 2-way audio support
- 1 digital input / 1 digital output
- 3GPP mobile surveillance
- Built-in Samba client for NAS
- ONVIF compliant
Teknik Özellikler
Camera 1/4" 1 Megapixel progressive CMOS sensor Minimum illumination: 1.0 lux 10x digital zoom Fixed length 3.45 mm Aperture: F2.0 Angle of view:(H) 57.8°,(V) 37.8°,(D) 66° Image Features Configurable image size, quality, frame rate, and bit rate Time stamp and text overlays Configurable motion detection windows 3 configurable privacy mask zones Configurable shutter speed, brightness, saturation, contrast, and sharpness Video Compression Simultaneous H.264/MPEG-4/MJPEG format compression JPEG for still images Video Resolution 16:9 - 1280 x 800, 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176, 176 x 144 at frame rates up to 30 fps 4:3 - 1024 x 768, 800 x 600, 640 x 480, 480 x 360, 320 x 240, 176 x 144 at frame rates up to 30 fps Audio Support : G.726 External Device Interfaces 1 DI / 1 DO MicroSD card slot Built-in microphone 3.5 mm audio output jack Network Protocols IPv4, TCP/IP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (D-Link), SMTP Client, FTP Client, HTTP / HTTPS, Samba Client, PPPoE, UPnP Port Forwarding, RTP / RTSP/ RTCP, IP filtering, 3GPP, IGMP, ONVIF Compliant Security Administrator and user group protection Password authentication System Requirements for Web Interface Operating System: Microsoft Windows 7/Vista/XP/2000 Browser: Internet Explorer, Firefox, Netscape, Opera Event Management Motion detection Event notification and upload snapshots/video clips via HTTP, SMTP, or FTP Supports multiple HTTP, SMTP, and FTP servers Multiple event notifications Multiple recording methods for easy backup Remote Management Configuration accessible via web browser Take snapshots/video clips and save to local hard drive or NAS via web browser Mobile Support Windows 7/Vista/XP system, Pocket PC, or mobile phone with 3GPP playback support D-ViewCam™ System Requirements Operating System: Microsoft Windows 7/Vista/XP Web Browser: Internet Explorer 6 or higher Protocol: Standard TCP/IP D-ViewCam™ Software Functions Remote management/control of up to 32 cameras Viewing of up to 32 cameras on one screen Supports all management functions provided in web interface Scheduled motion triggered, or manual recording options
