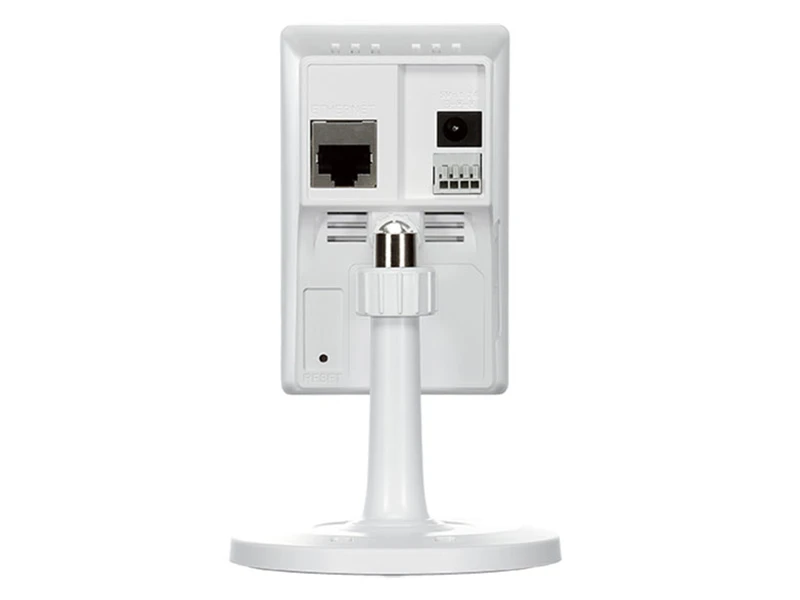

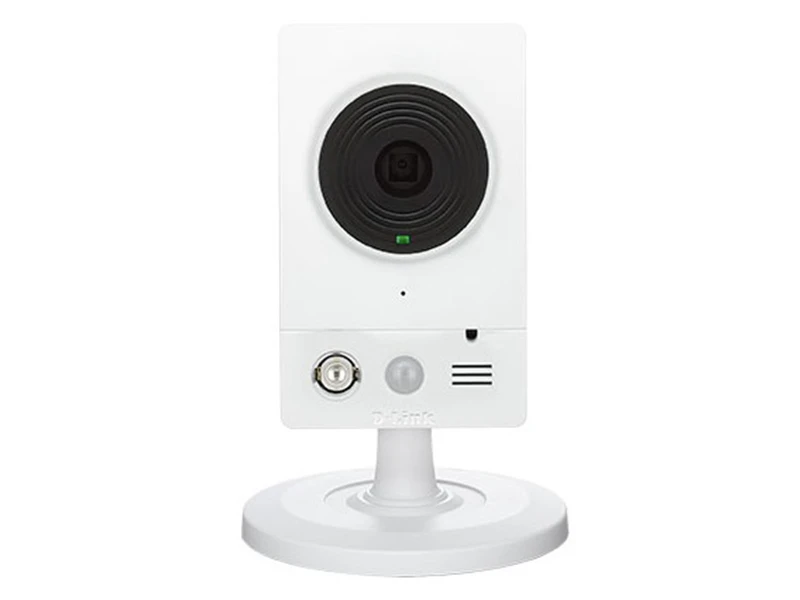

D-Link DCS 2103 UPA B1A IP HD Küp Kamera
Özellikler
- 1/4” 1 Megapixel CMOS progressive sensor
- Real-time H.264, MPEG-4 and Motion JPEG compression
- HD resolution (1280x720) and up to 1M (1280x800)
- Fixed lens 3.45 mm F2.0
- Simultaneous multi-stream support
- ePTZ
- Supports multiple access list
- Privacy Mask feature
- Micro SD Card slot
- 2-way audio support
- 1 digital input / 1 digital output
- 3GPP mobile surveillance
- Built-in Samba client for NAS
- ONVIF compliant
Teknik Özellikler
| Camera |
| 1/4" 1 Megapixel progressive CMOS sensor |
| Minimum illumination: 1.0 lux |
| 10x digital zoom |
| Fixed length 3.45 mm |
| Aperture: F2.0 |
| Angle of view:(H) 57.8°,(V) 37.8°,(D) 66° |
| Image Features |
| Configurable image size, quality, frame rate, and bit rate |
| Time stamp and text overlays |
| Configurable motion detection windows |
| 3 configurable privacy mask zones |
| Configurable shutter speed, brightness, saturation, contrast, and sharpness |
| Video Compression |
| Simultaneous H.264/MPEG-4/MJPEG format compression |
| JPEG for still images |
| Video Resolution |
| 16:9 - 1280 x 800, 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176, 176 x 144 at frame rates up to 30 fps |
| 4:3 - 1024 x 768, 800 x 600, 640 x 480, 480 x 360, 320 x 240, 176 x 144 at frame rates up to 30 fps |
| Audio Support : G.726 |
| External Device Interfaces |
| 1 DI / 1 DO |
| MicroSD card slot |
| Built-in microphone |
| 3.5 mm audio output jack |
| Network Protocols |
| IPv4, TCP/IP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (D-Link), SMTP Client, FTP Client, HTTP / HTTPS, Samba Client, PPPoE, UPnP Port Forwarding, RTP / RTSP/ RTCP, IP filtering, 3GPP, IGMP, ONVIF Compliant |
| Security |
| Administrator and user group protection |
| Password authentication |
| System Requirements for Web Interface |
| Operating System: Microsoft Windows 7/Vista/XP/2000 |
| Browser: Internet Explorer, Firefox, Netscape, Opera |
| Event Management |
| Motion detection |
| Event notification and upload snapshots/video clips via HTTP, SMTP, or FTP |
| Supports multiple HTTP, SMTP, and FTP servers |
| Multiple event notifications |
| Multiple recording methods for easy backup |
| Remote Management |
| Configuration accessible via web browser |
| Take snapshots/video clips and save to local hard drive or NAS via web browser |
| Mobile Support |
| Windows 7/Vista/XP system, Pocket PC, or mobile phone with 3GPP playback support |
| D-ViewCam™ System Requirements |
| Operating System: Microsoft Windows 7/Vista/XP |
| Web Browser: Internet Explorer 6 or higher |
| Protocol: Standard TCP/IP |
| D-ViewCam™ Software Functions |
| Remote management/control of up to 32 cameras |
| Viewing of up to 32 cameras on one screen |
| Supports all management functions provided in web interface |
| Scheduled motion triggered, or manual recording options |
D-Link DCS 2103 UPA B1A IP HD Küp Kamera Pdf Dosyası405.37 KB
Teknik Kısa
Çözünürlük : 1MP (720P)
Depolama : Var
Ses : Var
