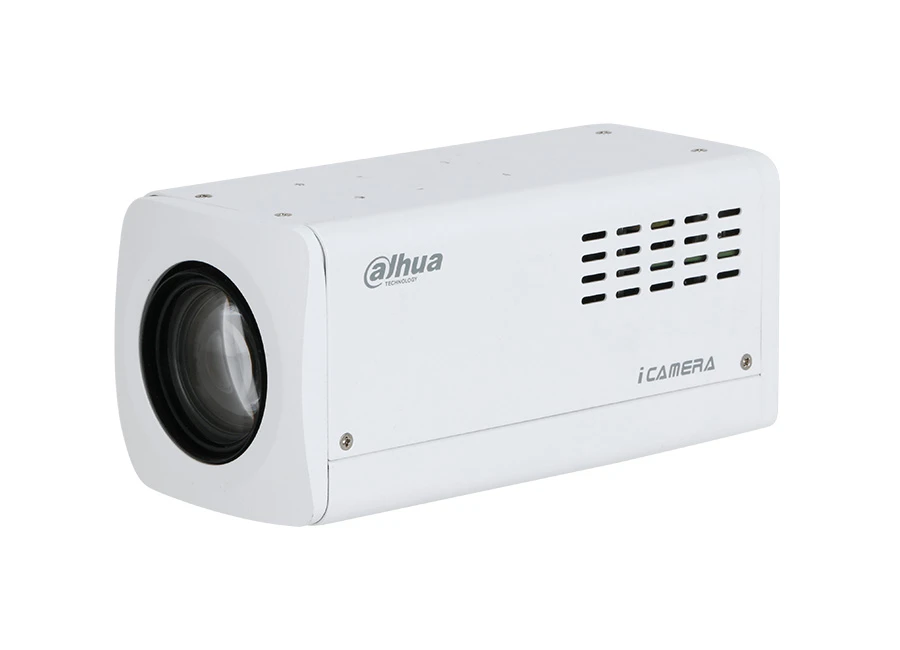

Dahua SDZ4032-HNR-ZB IP Zoom Box Kamera
Özellikler
Teknik Özellikler
Camera | ||||
Image Sensor | 1/2.8" CMOS | |||
Pixel | 4MP | |||
Max. Resolution | 2560 (H) x 1440 (V) | |||
ROM | 256 MB | |||
RAM | 1 GB | |||
Electronic Shutter Speed | 1/3 s–1/100,000 s | |||
Scanning System | Progressive | |||
Min. Illumination | Color: 0.005 | |||
B/W: 0.0005 | ||||
0 Lux (IR light/laser on) | ||||
Lens | ||||
Focal Length | 4.8 mm–135 mm | |||
Max. Aperture | F1.5–F4.0 | |||
Field of View | H: 55.8°–2.3°; V: 31.9°–1.3°; D: 63.7°–2.7° | |||
Optical Zoom | 32x | |||
Focus Control | Auto; Semi-Auto; Manual | |||
Close Focus Distance | 0.1 m–1.5 m (0.33 ft–4.92 ft) | |||
Iris Control | Auto; Semi-Auto; Manual | |||
DORI Distance | Detect | Observe | Recognize | Identify |
2700 m (8858.27 ft) | 1066 m (3497.38 ft) | 540 m (1771.65 ft) | 270 m (885.83 ft) | |
PTZ | ||||
Preset | 300 | |||
Power-off Memory | Yes | |||
Idle Motion | Preset; Tour; Pattern; Scan | |||
Artificial Intelligence | ||||
Perimeter Protection | Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. | |||
Smart Capture | Support human, motor vehicle and non-motor vehicle image capture. | |||
Face Detection | Yes | |||
Video | ||||
Compression | H.265; Smart H.265+; Smart H.264+; H.264; MJPEG (Sub Stream) | |||
Streaming Capability | 3 streams | |||
Resolution | 4M (2560 × 1440); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288) | |||
Frame Rate | Main stream: 4M/1080p/720p (1-25/30 fps) | |||
Sub stream 1: D1/CIF (1–25/30 fps) | ||||
Sub stream 2: 720p (1–25/30 fps) | ||||
Bit Rate Control | Variable; Constant | |||
Bit Rate | H.264: 2816 kbps–8192 kbps | |||
H.265: 1024 kbps –7936 kbps | ||||
Day/Night | Auto (ICR)/Color/B/W | |||
BLC | Yes | |||
WDR | Yes | |||
HLC | Yes | |||
White Balance | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural; street lamp | |||
Gain Control | Auto; Manual | |||
Noise Reduction | 2D; 3D | |||
Motion Detection | Yes | |||
Region of Interest (RoI) | Yes | |||
Defog | Digital | |||
Flip | 180° | |||
S/N Ratio | ≥ 55 dB | |||
Audio | ||||
Compression | G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1 | |||
Network | ||||
Ethernet | RJ-45 (10/100Base-T) | |||
Protocol | IPv4; IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; SNMP v1/v2c/v3 (MIB-2); RTCP; RTMP | |||
Interoperability | ONVIF (Profile S&G&T); CGI | |||
Streaming Method | Unicast; multicast | |||
User/Host | 20 (total bandwidth: 64 MB) | |||
Storage | Imou cloud; FTP; Micro SD card (max. 512 GB); NAS | |||
Browser | IE7 and later | |||
Chrome | ||||
Firefox | ||||
Safari | ||||
Management Software | Smart PSS; DSS; IVSS; NVR; ConfigTool; Smart Player; Imou | |||
Mobile Phone | iOS; Android | |||
Certification | ||||
Certifications | CE:EN55032/EN55024/EN50130-4 | |||
FCC:Part15 subpartB, ANSI C63.4-2014 | ||||
Port | ||||
Audio I/O | 1/1 | |||
Two-way Audio | Yes | |||
Alarm I/O | 2/1 | |||
Alarm Linkage | Capture; preset; tour; pattern; SD card recording; triggering on-off value output; sending email | |||
Alarm Event | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection | |||
Power | ||||
Power Supply | 12 V DC, 1.5A ± 10% | |||
PoE (802.3af) | ||||
Power Consumption | 6W | |||
Environment | ||||
Operating Temperature | –25 °C to +60 °C (–13 °F to +140 °F) | |||
Operating Humidity | ≤ 95%RH | |||
Protection | TVS 6000V lightning proof; surge protection; voltage transient protection | |||
Certification | ||||
Certification | CE: EN55032/EN55024/EN50130-4 | |||
FCC: Part15 subpartB, ANSI C63.4-2014 | ||||
Structure | ||||
Dimensions | 160.3 mm × 70.0 mm × 78.0 mm (6.31" × 2.76" × 3.07") (L × W × H) | |||
Net Weight | 0.8 kg (1.76 lb) |
Dahua SDZ4032-HNR-ZB IP Zoom Box Kamera Pdf Dosyası545.24 KB
Teknik Kısa
Depolama : Var
Ses : Var
Irled : Var
Çözünürlük : 4MP
