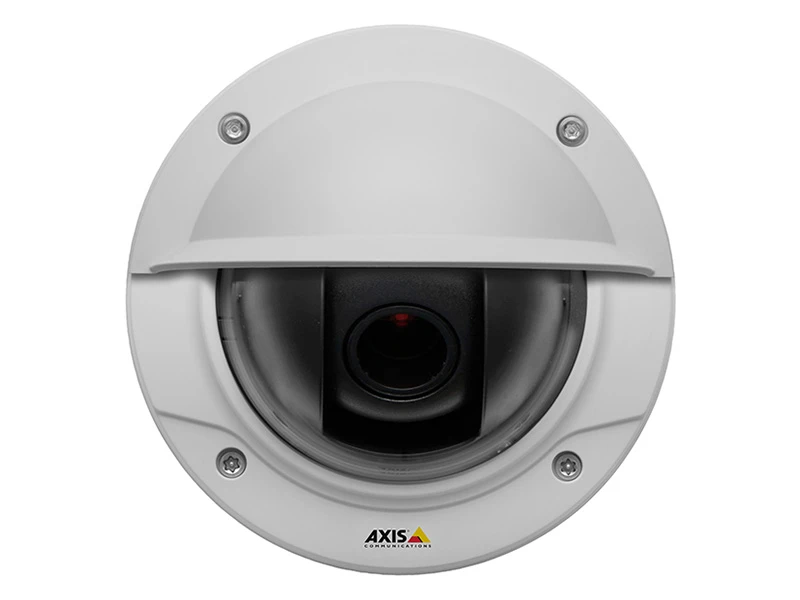

Axis P3214 VE IP HD Dome Kamera

Özellikler

Day/night fixed dome with an IK10 vandal-resistant outdoor casing.
Varifocal 2.8-10 mm P-iris lens, remote focus and zoom.
Multiple, individually configurable H.264 and Motion JPEG streams;
Max HDTV 720p or 1MP resolution at 30 fps.
WDR – dynamic contrast.
Video motion detection and active tampering alarm.
Memory card slot for optional local video storage.
Operation in -30°C to +50°C (-22°F to 122°F) powered by standard Power over Ethernet.
Midspan not included.
Includes mounting bracket for wall/ceiling or junction boxes and weather shield against sun, rain or snow

Teknik Özellikler

Video Input

Camera Mechanical Design : Fixed dome

Camera Type : Network surveillance camera

Color or B&W : Color

Connectivity Technology : Wired

Day & Night Functionality : Yes

Digital Video Format : H.264 , MJPEG , MPEG-4

Features : Backlight compensation , Brightness control , Color control , Contrast control , Exposure compensation , Image mirror , Privacy Mask Function , Sharpness control , White balance , Wide Dynamic Range (WDR)

Frame Rate : 30 frames per second

Max Digital Video Resolution : 1280 x 960

Panning Range (degree) : 180

Shutter Speed (Max) : 2 sec

Shutter Speed (Min) : 1/35500 sec

Tilting Range (degree) : 90

Optical Sensor

Optical Sensor Type : CMOS

Sensor Size : 1/2.8"

Sensor Size (metric) : 9.1 mm ( 1/2.8" )

Total Pixels : 1,000,000 pixels

Networking

Network Interface : Ethernet 10Base-T/100Base-TX

Network Protocols : ARP , Bonjour , DDNS , DHCP , DNS , FTP , HTTP , HTTPS , ICMP , IGMP , IPv4 , IPv6 , NTP , QOS , RTCP , RTP , RTSP , SMTP , SNMP 1 , SNMP 2c , SNMP 3 , SOCKS , TCP/IP , UDP/IP , UPnP

Environmental Parameters

Humidity Range Operating : 10 - 100%

Max Operating Temperature : 122 °F

Min Operating Temperature : -22 °F

Header

Brand : Axis

Compatibility : PC

Manufacturer : Axis Communications

Model : P3214-VE Network Camera

Packaged Quantity : 1

Product Line : AXIS

Lens System

Angular Field of View (H, max, degree) : 92

Angular Field of View (H, min, degree) : 33

Focal Length Control : Vari-focal

Lens Aperture : F/1.6

Max Focal Length : 10 mm

Min Focal Length : 2.8 mm

Miscellaneous

Color Category : White

Compliant Standards : AS/NZS CISPR 22 , C-Tick , EN 50121-4 , EN 60950-22 , EN 61000-6-1 , EN 61000-6-2 , EN55022 Class B , EN55024 , FCC Part 15 B Class A , ICES-003 Class B , IEC 60068-2-1 , IEC 60068-2-14 , IEC 60068-2-2 , IEC 60068-2-27 , IEC 60068-2-6 , IEC 60068-2-78 , IEC 60529 IP66 , IEC 60950-22 , IEC 62262 IK10 , KCC KN22 Class B , KN24 , NEMA Type 4X , UL 60950-22 , VCCI Class B

Included Accessories : Mounting bracket , Sunshield

Service

Support Details Full Contract Period : 3 years

Support Details Type : Limited warranty

Software

Type : Drivers & Utilities

Video Capture

Frame Rate : 30 fps

Image Resolution : 1280 x 960

Dimensions & Weight

Depth : 4.1 in

Height : 5.9 in
