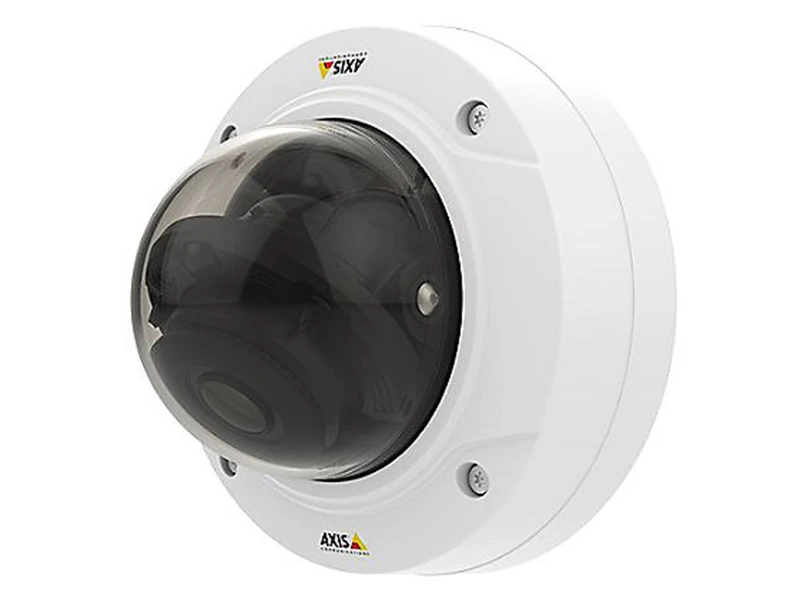

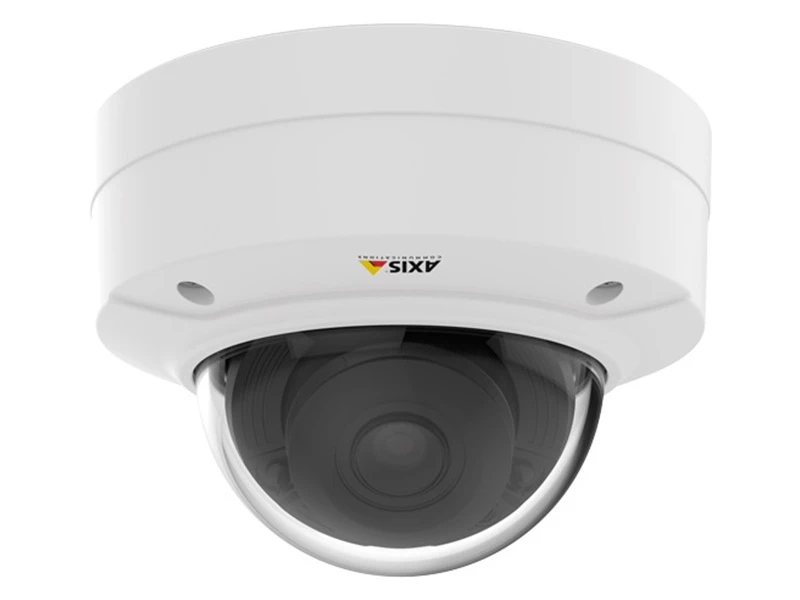

Axis P3225 LVE IP HD Dome Kamera
Özellikler
- Day/night fixed dome with support for OptimizedIR with built-in adaptable IR illuminators,
- WDR – Forensic Capture. IK10 vandal-resistant outdoor casing.
- Varifocal 3-10.5 mm P-iris lens, remote focus and zoom.
- Multiple, individually configurable H.264 and Motion JPEG streams;
- Max full HDTV 1080p/2MP resolution at 60 fps.
- Axis’ Zipstream technology for reduced bandwidth and storage needs.
- Video motion detection and active tampering alarm.
- Memory card slot for optional local video storage.
- Operation in -30°C to +50°C (-22°F to 122°F) powered by standard Power over Ethernet.
- Midspan not included. Includes mounting bracket for wall or junction boxes.
Teknik Özellikler
| Video Input |
| Camera Mechanical Design : Pan / tilt / zoom |
| Camera Type : Network surveillance camera |
| Color or B&W : Color |
| Connectivity Technology : Wired |
| Day & Night Functionality : Yes |
| Digital Video Capture Resolution : 1280 x 960 , 160 x 90 |
| Digital Video Format : H.264 , MJPEG , MPEG-4 |
| Features : Auto exposure control , Backlight compensation , Brightness control , Color control , Contrast control , Digital PTZ function , Infrared cut filter , IR Corrected lens , OptimizedIR , Password protection , Sharpness control , White balance , Wide Dynamic Range (WDR) , Zipstream technology |
| Frame Rate : 60 frames per second |
| Max Digital Video Resolution : 1280 x 960 |
| Panning Range (degree) : -180 to +180 |
| Shutter Speed (Max) : 1/142850 sec |
| Shutter Speed (Min) : 2 sec |
| Tilting Range (degree) : -5 to 175 |
| Video Modes : 720p |
| Optical Sensor |
| Optical Sensor Type : CMOS |
| Sensor Size : 1/2.8" |
| Sensor Size (metric) : 9.1 mm ( 1/2.8" ) |
| Networking |
| Network Interface : Ethernet 10Base-T/100Base-TX |
| Network Protocols : ARP , Bonjour , CIFS , DDNS , DHCP , DNS , FTP , HTTP , HTTPS , ICMP , IGMP , IPv4 , IPv6 , NTP , QOS , RTCP , RTP , RTSP , SFTP , SMB , SMTP , SNMP 1 , SNMP 2c , SNMP 3 , SOCKS , SSH , SSL , TCP/IP , TLS , UDP/IP , UPnP |
| Environmental Parameters |
| Humidity Range Operating : 10 - 100% |
| Max Operating Temperature : 122 °F |
| Min Operating Temperature : -22 °F |
| Header |
| Brand : Axis |
| Compatibility : PC |
| Manufacturer : Axis Communications |
| Model : P3225-LVE Network Camera |
| Packaged Quantity : 1 |
| Product Line : AXIS |
| Lens System |
| Angular Field of View (H, max, degree) : 92 |
| Angular Field of View (H, min, degree) : 34 |
| Angular Field of View (V, max, degree) : 50 |
| Angular Field of View (V, min, degree) : 20 |
| Auto Iris Control : P-Iris |
| Focal Length Control : Vari-focal |
| Lens Aperture : F/1.4 |
| Max Focal Length : 10.5 mm |
| Min Focal Length : 3 mm |
| Miscellaneous |
| Color : White |
| Color Category : Black , White |
| Included Accessories : Mounting kit |
| Power Device |
| Power Consumption Operational : 10.2 Watt |
| Service |
| Support Details Type : Limited warranty |
| Digital Camera |
| Supported Flash Memory : SD Memory Card , SDHC Memory Card , SDXC Memory Card |
| Dimensions & Weight |
| Depth : 5.9 in |
| Height : 4.1 in |
| Weight : 27.16 oz |
| Width : 5.9 in |
| CCTV |
| Equipment Category : CCTV cameras |
| CCTV Camera |
| Infrared Distance : 82 ft |
| Outdoor : Yes |
| Protection : Dust / vandal / waterproof |
| CCTV Camera Sensitivity |
| F-number : F1.4 |
| Minimum Illumination (lux) : 0.25 |
| Mode : Color |
| Minimum Illumination (lux) : 0.05 |
| Mode : B&W |
| Minimum Illumination (lux) : |
| Mode : IR |
| Flash Memory |
| Installed Size : 256 MB |
| Interfaces |
| Connector : RJ-45 |
| Type : LAN |
| Power |
| Low Voltage Power : PoE Plus |
| RAM |
| Installed Size : 512 MB |
| Service & Support |
| Type : 3 years warranty |
Teknik Kısa
Çözünürlük : 2MP (1080P)
Depolama : Var
