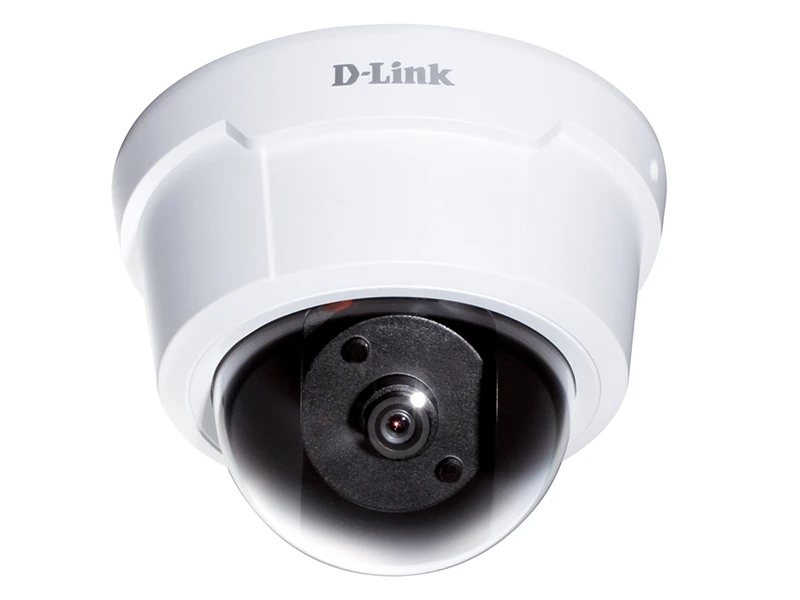

D-Link DCS 6112 A2A IP HD Dome Kamera
Teknik Özellikler
| General features: |
| Hardware Profile |
| 1/2.7” Full HD progressive megapixel CMOS sensor |
| Fixed lens, 4 mm F1.5 with 77.4 degree horizontal viewing angle |
| Digital Zoom 16X |
| 128 Mbytes of flash memory |
| 256 Mbytes SDRAM |
| Minimum illumination: 0.12 lux/F1.5 |
| Image Features |
| Configurable image size, quality, and bit rate |
| Time stamp and text overlays |
| 3 configurable motion detection windows |
| ePTZ function |
| 5 configurable privacy masks |
| Flip & mirror |
| Configurable white balance, shutter speed, brightness, saturation, contrast, sharpness |
| Video Compression |
| H.264/MPEG4/MJPEG dual format compression simultaneously |
| JPEG for still image |
| H.264/MPEG-4 multicast streaming |
| Video Resolution |
| 1920x1080 @ 15 fps, 1280x1024 @ 20 fps, 1280x720 @ 30 fps, 640x480 @ 30 fps, 320x240 @ 30 fps, 176x144 @ 30 fps |
| Audio Features |
| GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps |
| MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps |
| Supports two-way audio and audio mute |
| Network Protocols |
| IPv4, IPv6, TCP/IP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (D-Link), SMTP Client, FTP Client, HTTP/HTTPS, Samba Client, PPPoE, UPnP Port Forwarding, RTP/RTSP/RTCP, IP filtering, 3GPP, LLTD, CoS/QoS, SNMP, IGMP, 802.1x |
| Security |
| Administrator and user group protection |
| Password authentication |
| HTTP and RTSP digest encryption |
| HTTPS streaming |
| Remote client access control |
| System Requirements |
| Operating system: Microsoft Windows 7, Vista, XP, 2000 |
| Browser: Internet Explorer 6 or higher, Chrome, Firefox, Safari |
| D-ViewCam™ System |
| Requirements for Web Interface |
| Operating System: Microsoft Windows 7, Vista, XP |
| Web Browser: Internet Explorer 6 or higher |
| Protocol: Standard TCP/IP |
| Event Management |
| Motion detection |
| Tamper Detection |
| Event notification and upload snapshots/video clips via HTTP, SMTP or FTP |
| Multiple event notification |
| Multiple recording methods for easy backup |
| Supports multiple HTTP, SMTP and FTP servers |
| Remote Management |
| Configuration accessible via web browser |
| Take snapshots/video clips and save to local hard drive or NAS via web browser |
| Surveillance Software Function |
| Remote management/control of up to 32 cameras |
| Viewing of up to 32 cameras on one screen |
| Supports all management functions provided in web interface |
| Scheduled motion triggered, or manual recording options |
| Supported PDA, Mobile |
| Phones, and Software |
| Handsets with 3GPP player, Quick Time 6.5, Real Player 10.5, Windows 7, Vista, XP, 2000 |
| External Device Interface |
| DI and DO for external sensor and alarm |
| External audio input (MIC in) |
| External audio/video output (AV out) |
| TV system switch (NTSC/ PAL) |
| MicroSD card slot |
Fiziksel Özellikler
| Physical & Enviromental |
| Power Input |
| 12 V DC 1.25 A, 50/60 Hz, IEEE 802.3af PoE |
| Max. Power Consumption |
| 4.4 W |
| Operating Temperature |
| -0 to 40 ˚C (32 to 104 ˚F) |
| Storage Temperature |
| -20 to 70 ˚C (-4 to 158 ˚F) |
| Humidity |
| 90% non-condensing |
| Weight |
| 466 g (1.03 lbs) |
| Certifications |
| CE (Class A), CE LVD (EN60965-1), FCC (Class A), ICES-003, C-Tick |
Video
Teknik Kısa
Depolama : Var
Çözünürlük : 2MP (1080P)
