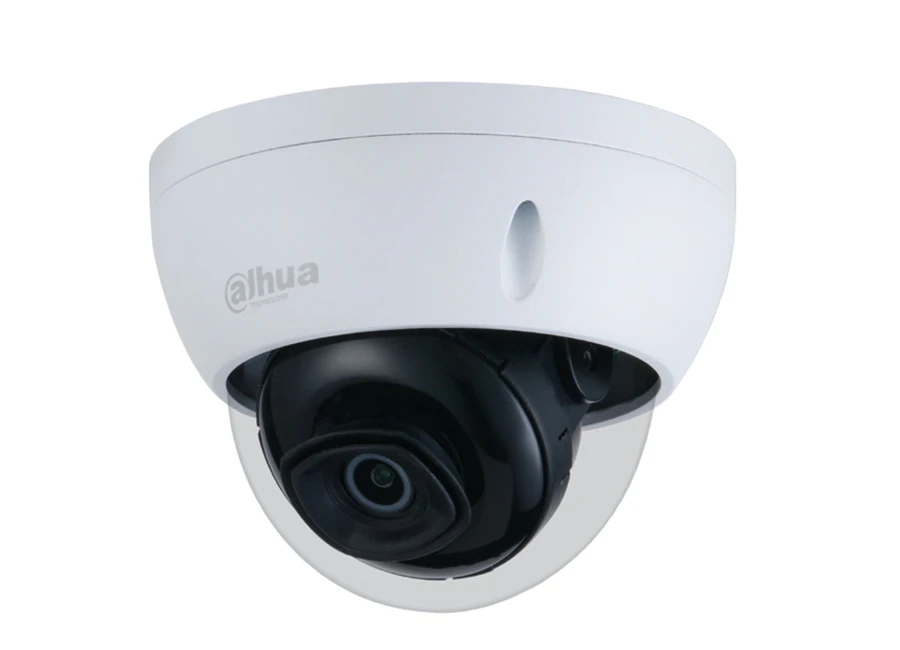

Dahua IPC-HDBW3249E-AS-NI IP Dome Kamera
Özellikler
- 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
- Outputs max. 2MP (1920 × 1080) @ 30 fps
- H.256 coding, high compression rate, low bit rate
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, video tampering, scene changing, audio abnormality detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card
- 12V DC/PoE power supply
- IP67, IK10 protection
- SMD Plus
Teknik Özellikler
| Camera | |||||
| Image Sensor | 1/2.8”2Megapixel progressive CMOS | ||||
| Max. Resolution | 1920 (H) × 1080 (V) | ||||
| ROM | 128 MB | ||||
| RAM | 512 MB | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | ||||
| S/N Ratio | > 56 dB | ||||
| Min. Illumination | 0.0015 Lux @ F1.0 | ||||
| Pan/Tilt/Rotation Range | Pan: 0°–355° | ||||
| Tilt: 0°–65° | |||||
| Rotation: 0°–355° | |||||
| Lens | |||||
| Lens Type | Fixed-focal | ||||
| Mount Type | M12 | ||||
| Focal Length | 2.8 mm; 3.6 mm | ||||
| Max. Aperture | F1.0 | ||||
| Field of View | 2.8 mm: Horizontal 107° × vertical 55° × diagonal 127° | ||||
| 3.6 mm: Horizontal 84° × vertical 45° × diagonal 99° | |||||
| Iris Type | Fixed | ||||
| Close Focus Distance | 2.8 mm: 0.8 m (2.6 ft) | ||||
| 3.6 mm: 1.7 m (5.6 ft) | |||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 38.6 m(126.6 ft) | 15.4 m(50.5 ft) | 7.7 m(25.3 ft) | 3.9 m(12.8 ft) | |
| 3.6mm | 55.2 m(181.1 ft) | 22.1 m(72.5 ft) | 11.0 m(36.1 ft) | 5.5 m(18.0 ft) | |
| Professional, Intelligent | |||||
| Perimeter Protection | Tripwire, intrusion (Recognition of vehicle and people) | ||||
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos | ||||
| Video | |||||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported | ||||
| by sub stream) | |||||
| Smart Codec | Smart H.265+/ Smart H.264+ | ||||
| Video Frame Rate | Main stream (1920 × 1080 @ 1–25/30 fps) | ||||
| sub stream (704 × 576 @ 1–25/704 × 480 @ 1-30 fps) | |||||
| third stream (1280 × 720 @ 1–25/30 fps) | |||||
| Stream Capability | 3 streams | ||||
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); | ||||
| CIF (352 × 288/352 × 240) | |||||
| Bit Rate Control | CBR; VBR | ||||
| Video Bit Rate | H.264: 3 kbps–8192 kbps | ||||
| H.265: 3 kbps–8192 kbps | |||||
| Day/Night | Color/B/W | ||||
| BLC | Yes | ||||
| WDR | 120 dB | ||||
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom | ||||
| Gain Control | Auto/Manual | ||||
| Noise Reduction | 3D DNR | ||||
| Motion Detection | OFF/ON (4 areas, rectangular) | ||||
| Region of Interest (RoI) | Yes (4 areas) | ||||
| Image Rotation | °/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.) | ||||
| Mirror | Yes | ||||
| Privacy Masking | 4 areas | ||||
| Audio | |||||
| Audio Compression | G.711a; G.711Mu; G726; AAC | ||||
| Alarm | |||||
| Alarm Event | No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; input abnormal; intensity change; tripwire; intrusion; SMD | ||||
| Network | |||||
| Network | RJ-45 (10/100 Base-T) | ||||
| SDK and API | Yes | ||||
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP | ||||
| Interoperability | ONVIF(Profile S/Profile G); CGI; P2P; Milestone; Genetec | ||||
| Scene self-adaptation | Yes | ||||
| User/Host | 20 (Total bandwidth: 64M.) | ||||
| Storage | FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS | ||||
| Browser | IE: IE8; IE9; IE11 | ||||
| Chrome | |||||
| Firefox | |||||
| Management Software | Smart PSS; DSS; DMSS | ||||
| Mobile Phone | IOS; Android | ||||
| Certification | |||||
| Certifications | CE-LVD: EN62368-1 | ||||
| CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU | |||||
| FCC: 47 CFR FCC Part 15, Subpart B | |||||
| UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 | |||||
| Port | |||||
| Audio Input | 1 channel (RCA port) | ||||
| Audio Output | 1 channel (RCA port) | ||||
| Alarm Input | 1 channel in: 5mA 3V–5V DC | ||||
| Alarm Output | 1 channel out: 300mA 12V DC | ||||
| Power | |||||
| Power Supply | 12V DC/PoE | ||||
| Power Consumption | < 3.9W | ||||
| Environment | |||||
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than 95% | ||||
| Storage Conditions | -40°C to +60°C (-40°F to +140°F) | ||||
| Protection Grade | IP67; IK10 | ||||
| Structure | |||||
| Casing | Metal | ||||
| Dimensions | 81 mm × Φ109.9 mm (3.2" × Φ4.3") | ||||
| Net Weight | 378 g (0.8 lb) | ||||
| Gross Weight | 523 g (1.2 lb) | ||||
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 4MP
