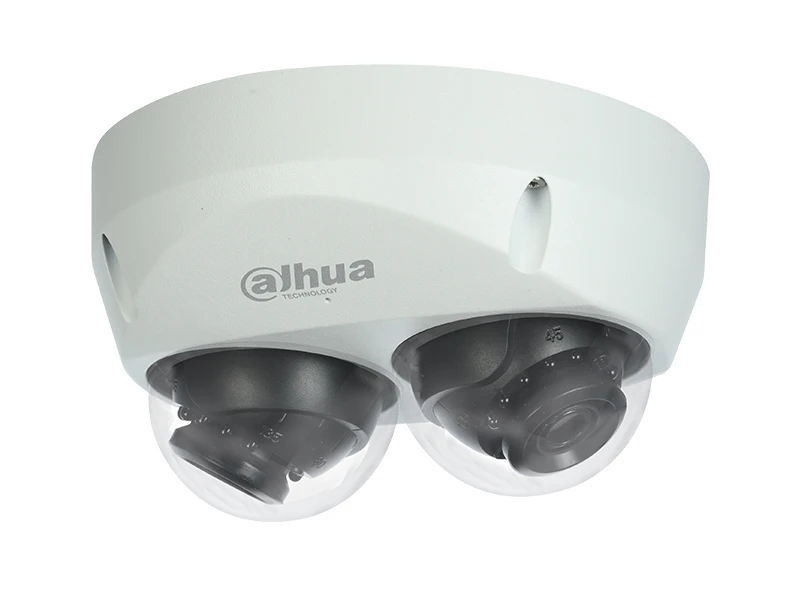

Dahua IPC HDBW4231F E2 M 0360B IP Dome Kamera
Özellikler
- Two 1/2.8” 2Megapixel progressive scan STARVISTM CMOS
- H.265&H.264 dual-stream encoding
- 25/30fps@2M(1920×1080)
- Smart Detection supported
- WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- 3.6mm fixed lens
- Max. IR LEDs Length 20m
- Micro SD memory, IP67, IK10, PoE
Teknik Özellikler
Camera | |||||
Image Sensor | Two 1/2.8” 2Megapixel progressive scan CMOS | ||||
Effective Pixels | 1920(H)x1080(V) | ||||
RAM/ROM | 512MB/256MB | ||||
Scanning System | Progressive | ||||
Electronic Shutter Speed | Auto/Manual, 1/3(4)~1/100000s | ||||
Minimum Illumination | 0.009Lux/F2.0( Color,1/3s,30IRE) | ||||
0.07Lux/2.0( Color,1/30s,30IRE) | |||||
0Lux/F2.0(IR on) | |||||
S/N Ratio | More than 50dB | ||||
IR Distance | Distance up to 20m (66ft) | ||||
IR On/Off Control | Auto/ Manual | ||||
IR LEDs | 10 x 2 | ||||
Lens | |||||
Lens Type | Fixed | ||||
Mount Type | Board-in | ||||
Focal Length | 3.6mm | ||||
Max. Aperture | F2.0 (F2.1) | ||||
Angle of View | H: 110° (86°), V:60° (46°) | ||||
Optical Zoom | N/A | ||||
Focus Control | Fixed | ||||
Close Focus Distance | N/A | ||||
DORI Distance | Lens | Detect | Observe | Recognize | Identify |
2.8 mm | 41m(134ft) | 16m(52ft) | 8m(26ft) | 4m(13ft) | |
3.6 mm | 55m(180ft) | 22m(72ft) | 11m(36ft) | 6m(20ft) | |
Pan/Tilt/Rotation | |||||
Pan/Tilt/Rotation Range | Pan:±90˚; Tilt:0˚~65˚; Rotation:0˚~360˚ | ||||
Intelligence | |||||
Event Trigger | Motion detection, Video tampering, Scene changing,Network disconnection, Ip address conflict, Illegal access, Storage anomaly | ||||
IVS | Tripwire, Intrusion, Object Abandoned/Missing | ||||
Advanced Intelligent Functions | Face Detection | ||||
Video | |||||
Compression | H.265/H.264H/MJPEG(Sub Stream) | ||||
Smart Codec | N/A | ||||
Streaming Capability | 2 Streams | ||||
Resolution | 1080P(1920x1080)/1.3M(1280x960)/720P(1280×720)/D1(704×576/704×480)/VGA(640×480)/ CIF(352×288/352×240) | ||||
Frame Rate | Main Stream: | ||||
CH1: 1080P (1~25/30fps) | |||||
CH2: 1080P (1~25/30fps) | |||||
Sub Stream: | |||||
CH1: D1(1~25/30fps) | |||||
CH2: D1(1~25/30fps) | |||||
Bit Rate Control | CBR/VBR | ||||
Bit Rate | H.264: 32~10240Kbps | ||||
H.265: 12~7168Kbps | |||||
Day/Night | Auto(ICR) / Color / B/W | ||||
BLC Mode | BLC / HLC / WDR(120dB) | ||||
White Balance | Auto/Natural/Street Lamp/Outdoor/Manual | ||||
Gain Control | Auto/Manual | ||||
Noise Reduction | 3D DNR | ||||
Motion Detection | Off / On (4 Zone, Rectangle) | ||||
Region of Interest | Off / On (4 Zone) | ||||
Electronic Image Stabilization (EIS) | N/A | ||||
Smart IR | Support | ||||
Defog | N/A | ||||
Digital Zoom | 16x | ||||
Flip | °/90°/180°/270° | ||||
Mirror | Off / On | ||||
Privacy Masking | Off / On (4 Area, Rectangle) | ||||
Audio | |||||
Compression | G.711a/ G.711Mu/ AAC/ G.726 | ||||
Network | |||||
Ethernet | -M Model: RJ-45 (10/100Base-T) | ||||
-M12 Model: M12 D-Coding (10/100Base-T) | |||||
Protocol | HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP; | ||||
FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP; | |||||
NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;SNMP;TLS | |||||
Interoperability | ONVIF Profile S&G, API | ||||
Streaming Method | Unicast / Multicast | ||||
Max. User Access | 10 Users /20 Users | ||||
Edge Storage | NAS | ||||
Local PC for instant recording | |||||
Mirco SD card 128GB | |||||
Web Viewer | IE, Chrome, Firefox, Safari | ||||
Management Software | Smart PSS, DSS, DMSS | ||||
Smart Phone | IOS, Android | ||||
Certifications | |||||
Certifications | CE (EN 60950:2000) | ||||
UL:UL60950-1 | |||||
FCC: FCC Part 15 Subpart B | |||||
E-mark(ECE-Regulation No.10) | |||||
EN50155(Environment) | |||||
Interface | |||||
Video Interface | N/A | ||||
Audio Interface | Built-in Mic | ||||
RS485 | N/A | ||||
Alarm | N/A | ||||
Electrica | |||||
Power Supply | -M Model: DC12V, PoE (802.3af)(Class 0) | ||||
-M12 Model: PoE (802.3af)(Class 0) | |||||
Power Consumption | DC 12V: 4.32W 6.02W(IR on) | ||||
PoE: 4.32W 6.02W(IR on) | |||||
Environmental | |||||
Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH | ||||
Stroage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH | ||||
Ingress Protection | IP67 | ||||
Vandal Resistance | IK10 | ||||
Construction | |||||
Casing | Metal | ||||
Dimensions | Φ122mm×65.4mm (4.79”×2.57”) | ||||
Net Weight | 0.505kg (1.11lb) | ||||
Gross Weight | 0.53kg (1.17lb) |
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 2MP (1080P)
Irled : Var
