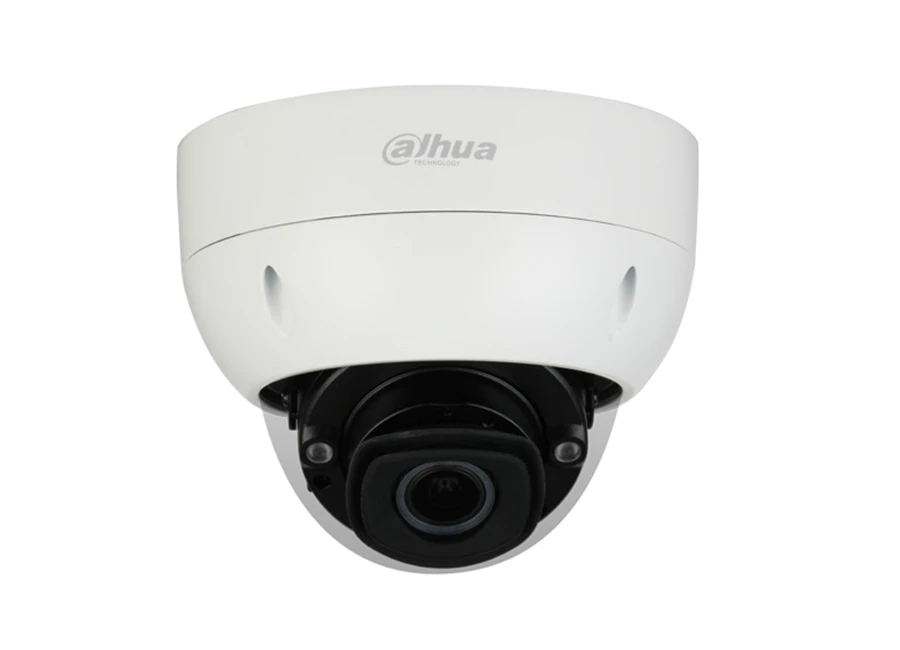

Dahua IPC-HDBW5842H-ZHE IP Dome Kamera

Özellikler

8MP, 1/1.8” CMOS image sensor, low illuminance, high image definition
Max outputs 8MP (3840×2160) @ 25 fps/30 fps
H.264&H.265 coding, high compression ration
Wide dynamic, day/night, 3D NR, AWB, HLC, BLC
ROI, SVC, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
With deep learning algorithm, it supports people counting, face detec tion, perimeter protection etc
Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; BNC; supports max. 256 G SD card, built-in ports, without cables
24V AC/12V DC/PoE power supply
Three streams for two-channel HD video
IP67, IK10 protection grade
12V DC power output, max. current 165mA , easy for installation

Teknik Özellikler

Camera
Image Sensor	1/1.8” 8Megapixel progressive CMOS
Max. Resolution	3840 (H) × 2160 (V)
ROM	4 GB
RAM	2 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100000 s
Min. Illumination	0.003 Lux@F1.2
S/N Ratio	> 56 dB
Illumination Distance	40 m (131.23 ft)
Illuminator On/Off Control	Auto/Manual
Illuminator Number	3 (IR LED)
Pan/Tilt/Rotation Range	Pan: 0°–355°
	Tilt: 0°–80°
	Rotation: 0°–355°
Lens
Lens Type	Motorized vari-focal
Mount Type	Module interface
Focal Length	2.7mm-12mm
Max. Aperture	F1.2
Field of View	Horizontal: 114°(W)–47°(T)
	Vertical: 59°(W)–27°(T)
	Diagonal: 141° (W–55°(T)
Iris Type	Auto
Close Focus Distance	w: 1 m (W: 3.28 ft)
	T: 2.5 m (T: 8.20 ft)
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	W	87.2 m(286.09 ft)	34.9 m(144.50 ft)	17.4 m(57.08 ft)	8.7 m(28.54 ft)
	T	186.7 m(612.53 ft)	74.7 m (245.08 ft)	37.3 m(122.37 ft)	18.6 m(61.02 ft)
Smart event
IVS	Abandoned object, moving object
Professional, intelligent
IVS (Perimeter Protection)	Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); parking detection, loitering detection, and people gathering.
Face Detection	Face detection, track, priority, snapshot;
	Upload Optimized snapshot picture;
	Face enhancement, face exposure, face attribute extract,6 attributes and 8 expressions: Gender, age,
	glasses,expressions (anger, sadness, disgust, fear, surprise,calm, happiness and confusion), Mouth mask,beard;
	Face matting setting: face, single inch photo;
	Three snapshot methods: real-time snapshot, priority snapshot, quality priority;
	Face angle filter Priority time setting;
	Support Duration Optimal.
People Counting	Support tripwire number counting, people counting in area, and displaying and outputting yearly/monthly/daily reports.Support queue management, and displaying and outputting monthly/daily reports.Support 4 tripwire rules configuration, people counting in 4 areas, and 4 queue management functions
Intelligent Search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression	H.265, H.264, H.264H, H.264B, MJPEG(only supported by sub stream)
Smart Codec	Smart H.265+/ Smart H.264+
Video Frame Rate	Main Stream: 3840 × 2160 (1–25/30 fps)
	Sub stream: 704 × 576 (1–25fps);704 × 480 (1–30fps)
	Third stream: 1920 × 1080 (1–25/30 fps)
Stream Capability	3 streams
Resolution	8M (3840 × 2160)/6M (3072 × 2048/3072 × 1728)/5M (2592 × 1944)/4M (2688 × 1520)/3M (2048 × 1536/2304 × 1296)/1080p(1920 × 1080)/1.3M (1280 × 960)/720p(1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 32 Kbps–16384 Kbps
	H.265: 12 Kbps–16384 Kbps
Day/Night	Auto (ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	120 dB
Scene Self-adaptation	Yes
White Balance	Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control	Auto/Manual
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest(RoI)	Yes (4 areas)
Electronic Image Stabilization(EIS)	Yes
Smart Illumination	Yes
Defog	Yes
Image Rotation	°/90°/180°/270° (Support 90°/270° with 1080p resolution or below.)
Mirror	Yes
Privacy Masking	4 areas
Audio
Audio Compression	G.711a; G.711Mu; G726; AAC; G.723
Alarm
Alarm Event	No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; defocus detection; external alarm; face detection; people counting in area; stay alarm; people counting; people counting exception detection; safety exception, Queue Management
Network
Network	RJ-45 (10/100 Base-T)
SDK and API	Yes
Protocol	HTTP; Https; 802.1x; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; QoS; UPnP; NTP; SFTP; RTMP; Genetec;Bonjour ; Multicast
Interoperability	ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P;RTMP
User/Host	20 (Total bandwidth: 160 M.)
Storage	FTP; Micro SD card (256 G); NAS; SFTP;Dahua Cloud
Browser	IE: IE9 and later
	Chrome: Chrome 42 and later
	Firefox: Firefox 48.0.2 and later
Management Software	Smart PSS; DSS; DMSS
Mobile Phone	IOS, Android
Certification
Certifications	CE-LVD: EN62368-1
	CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
	FCC: 47 CFR FCC Part 15, Subpart B
	UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
RS-485	1 (baud rate range: 1200 bps–115200 bps)
Audio Input	Audio Interface: 1/1 channel In/Out
Audio Output
Alarm Input	3 channel In: 5mA 5V DC
Alarm Output	2 channel Out: 1000mA 30V DC/500mA 50V AC
Power
Power Supply	12V DC/24V AC/PoE+ (802.3at)
Power Consumption	<16.7W
Environment
Operating Conditions	-40°C to +60°C (-40°F to +140°F)/Less than 95% RH
Storage conditions	-40°C to +60°C (-40°F to +140°F)
Protection Grade	IP67, IK10
Structure
Casing	Metal + Plastic
Dimensions	129.1 mm × Φ157.9 mm (5.08" × Φ6.22") (L × W × H)
Gross Weight	1600 g (3.53 lb)
Net Weight	1500 g (3.31 lb)
