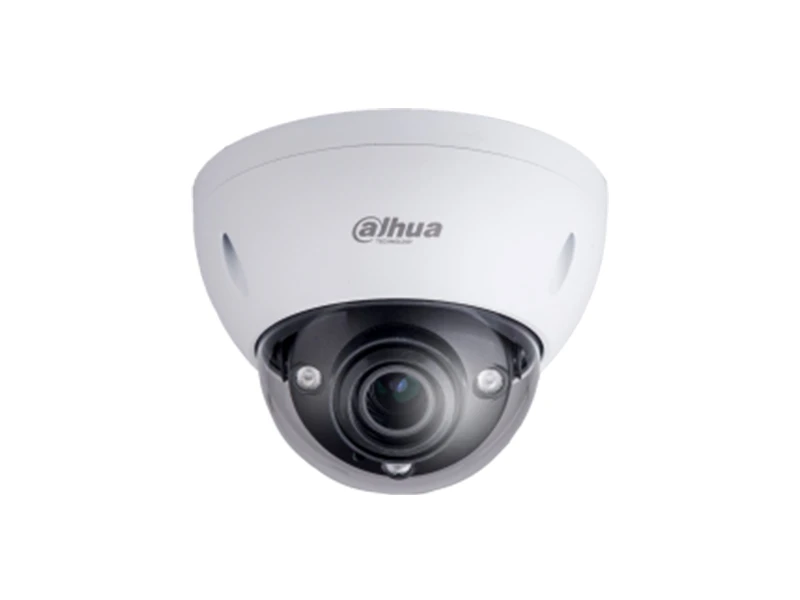

Dahua IPC HDBW8331E ZE IP Dome Kamera

Özellikler

1/2.8” 3Megapixel progressive scan STARVIS™ CMOS
H.265&H.264 triple-stream encoding
50/60fps@3M(2048×1536)
WDR(140dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
2.7mm ~13.5mm zoom lens
Max. IR LEDs Length 50m
Micro SD memory,IP67,IK10,PoE+

Teknik Özellikler

Camera
Image Sensor	1/2.8” 3Megapixel progressive scan CMOS
Effective Pixels	2048(H)x1536(V)
RAM/ROM	1024MB/128MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3~1/100000s
Minimum Illumination	0.005Lux/F1.4 (Color,1/3s,30IRE) 0.03Lux/F1.4 (Color,1/30s,30IRE) 0Lux/F1.4(IR on)
S/N Ratio	More than 50dB
IR Distance	Distance up to 50m(164ft)
IR On/Off Control	Auto/ Manual
IR LEDs	3
Lens
Lens Type	Motorized /Auto Iris(HALL)
Mount Type	Board-in
Focal Length	2.7~13.5mm motorized
Max. Aperture	F1.4
Angle of View	H: 99 ˚~28 ˚ V:67 ˚ ~21 ˚
Optical Zoom	5x
Focus Control	Motorized
Predictive Focus Algorithm (PFA)	Support
Close Focus Distance	0.3m(0.98ft)
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	W	54m(177ft)	22m(72ft)	11m(36ft)	5m(16ft)
	T	166m(545ft)	66m(217ft)	33m(108ft)	17m(56ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range	Pan:0˚~355˚; Tilt:0˚~65˚; Rotation:0˚~355˚
Intelligence
Event Trigger	Motion detection, Video tampering , Scene changing,Network disconnection , IP address conflict, IllegalAccess,Storage anomaly
IVS	Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions	Face Detection,People Counting, Heat Map
Video
Compression	H.265/H.264/H.264B/ H.264H/MJPEG(Sub Stream)
Smart Codec	Support H.265+/H.264+
Streaming Capability	3 Streams
Resolution	3M(2048x1536)/1080P(1920×1080)/1.3M(1280x960)/720P(1280x720)/D1(704×576/ 704x480)/VGA(640x480)/CIF(352×288/342x240)
Frame Rate	Main Stream: 3M(1~50/60fps) Sub Stream: D1 (1 ~ 50/60fps) Third Stream: 1080P(1~50/60fps)
Bit Rate Control	CBR/VBR
Bit Rate	H.264: 24~ 10240Kbps
	H.265: 14~ 9216Kbps
Day/Night	Auto(ICR) / Color / B/W
BLC Mode	BLC / HLC / WDR(140dB)/ SSA
White Balance	Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control	Auto/Manual
Noise Reduction	3D DNR
Motion Detection	Off / On (4 Zone, Rectangle)
Region of Interest	Off / On (4 Zone)
Electronic Image Stabilization(EIS)	Support
Smart IR	Support
Defog	Support
Digital Zoom	16x
Flip	°/90°/180°/270°
Mirror	Off / On
Privacy Masking	Off / On (4 Area, Rectangle)
Audio
Compression	G.711a/G.711Mu/AAC/ G.726
Network
Ethernet	RJ-45 (100/1000Base-T)
Protocol	HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE; IPv4/v6;QoS;UPnP;NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;SNMP;TLS
Interoperability	ONVIF Profile S&G, API
Streaming Method	Unicast / Multicast
Max. User Access	10 Users/20 Users
Edge Storage	NAS Local PC for instant recording Mirco SD card 128GB
Web Viewer	IE, Chrome, Firefox, Safari
Management Software	Smart PSS, DSS, DMSS
Smart Phone	IOS, Android
Certifications
Certifications	CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B
Interface
Video Interface	1 Port(For adjustment only)
Audio Interface	1/1 channel In/Out
RS485	N/A
Alarm	1 channel In: 5mA 5VDC 1 channel Out: 1A 30VDC /0.5A 50VAC
Electrical
Power Supply	DC12V,AC24V, PoE+(802.3at)(Class 4)
Power Consumption	<18W
Environmental
Operating Conditions	-40° C ~ +60° C (-40° F ~ +140° F) /Less than 95% RH
Storage Conditions	-40° C ~ +60° C (-40° F ~ +140° F) /Less than 95% RH
Ingress Protection	IP67
Vandal Resistance	IK10
Construction
Casing	Metal
Dimensions	Φ159.1mm×117.9mm(Φ6.26”×4.64”)
Net Weight	0.96kg(2.12lb)
Gross Weight	1.75 kg(3.56lb)
