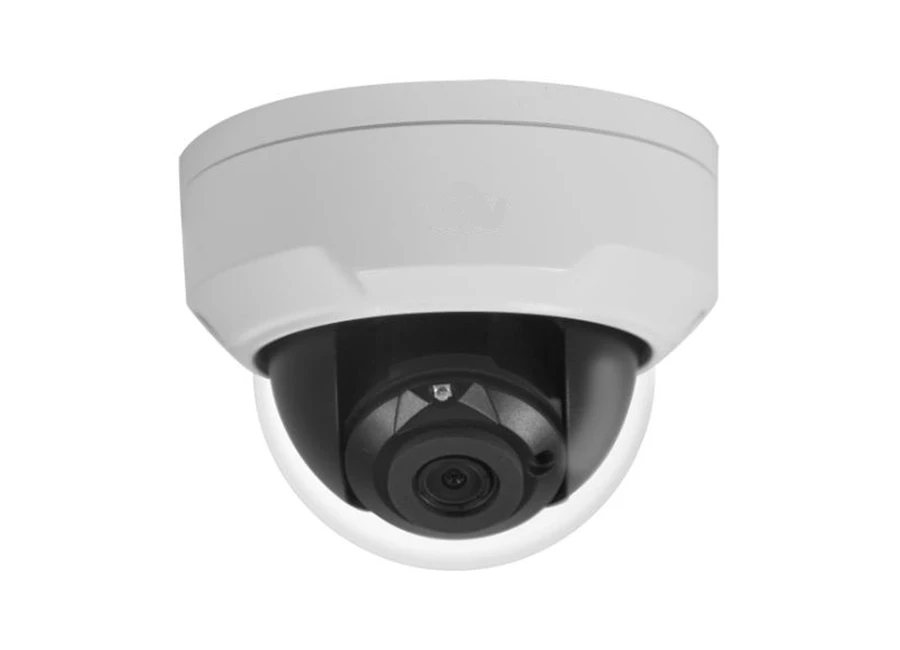

DCODE Exclusive DEC422SR3 DVPF28 HD Dome Kamera

Özellikler

  • 1/2.7", progressive scan ,2.0 megapixel, CMOS
  • Lens 2.8 mm@F2.0
  • Angle of View (H) 112.7°
  • Shutter Auto/Manual, 1/6~1/100000 s
  • Minimum Illumination Colour: 0.01 Lux (F2.0, AGC ON) 0 Lux with IR
  • Day/Night IR-cut filter with auto switch (ICR)
  • Digital noise reduction 2D/3D DNR
  • S/N >52 dB
  • Up to 30m (98 ft) IR range
  • Digital Defog
  • WDR 120dB
  • Video Compression Ultra 265,H.265, H.264, MJPEG
  • H.264 code profile Baseline profile, Main Profile, High Profile
  • Frame Rate : Main Stream:2MP (1920×1080): Max. 30 fps; Sub Stream:2MP (1920×1080): Max. 30 fps; Third Stream:D1 (720×576): Max. 30 fps
  • 9:16 Corridor Mode Supported
  • HLC Supported
  • BLC Supported
  • OSD Up to 8 OSDs
  • Privacy Mask Up to 8 areas
  • ROI Up to 8 areas
  • Motion Detection Up to 4 areas
  • Smart Behavior Detection : Intrusion, cross line, motion detection
  • Exception Detection : Audio detection
  • Intelligent Identification : Face detection, Defocus, Scene Change
  • Statistical Analysis : People counting
  • General Function : Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
  • Audio Compression G.711
  • Two-way audio Supported
  • Suppression Supported
  • Sampling Rate 8 KHZ
  • Edge Storage Micro SD, up to 128 GB
  • Network Storage ANR
  • Network Protocols : IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
  • Compatible Integration : ONVIF(Profile S, Profile G), API
  • Interface Audio I/O : Input: impedance 35 kΩ; amplitude 2 V [p-p] , Output: impedance 600 Ω; amplitude 2 V [p-p]
  • Alarm I/O : 1/ 1
  • Network : 1 RJ45 10M/100M Base-TX Ethernet
  • General Power : 12 V DC±25%, PoE (IEEE802.3 af)
  • Power consumption : Max 5.5W
  • Dimensions (Ø x H) : Φ108.5 x 81 mm (Ø4.28” x 3.2”)
  • Weight : 0.45 kg (0.99 lb)
  • Working Environment : -35°C ~ +60°C (-31°F ~ 140°F), Humidity :10%~90% RH(non-condensing)
  • Ingress Protection : IP67
  • Vandal Resistant : IK10

pdfDCODE Exclusive DEC422SR3 DVPF28 HD Dome Kamera Pdf Dosyası322.39 KB

Teknik Kısa

Irled : Var
Çözünürlük : 2MP (1080P)
