Açıklama

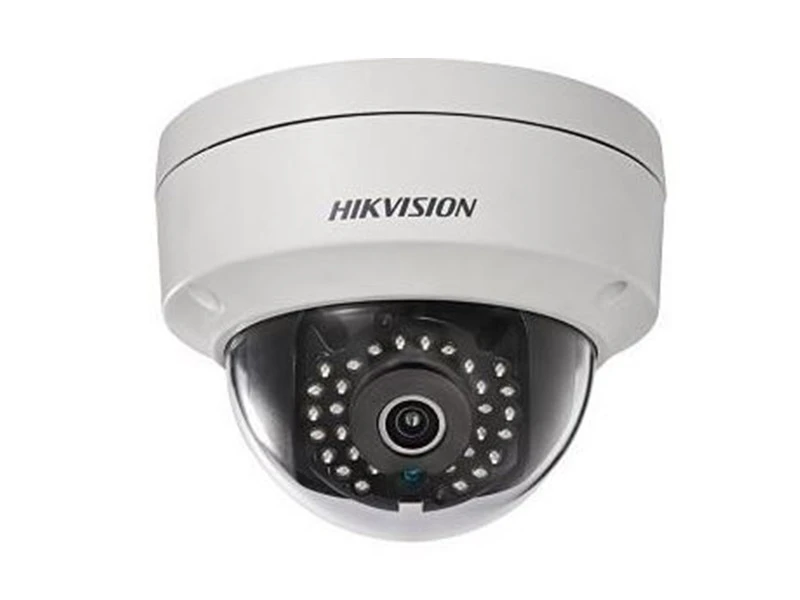

Hikvision DS 2CD2110F IS IP Dome Kamera
Özellikler
- 1.3MP 1/3'' Progressive scan CMOS
- Support dual streams
- Up to 30 meters IR range
- -S: Two-way audio
- -S: Audio/Alarm I/O
- -W: Support Wi-Fi
- IR cut filter with auto switch
- DC12V & PoE
- Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
- Ingress Protection level: IP67
- IK10
Teknik Özellikler
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| İşaret Sistemi | PAL/NTSC |
| Minimum Aydınlatma | 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR |
| 0.028 Lux @ (F2.0, AGC ON) ,0 Lux with IR | |
| Objektif Hızı | 1/3 s to 1/100,000 s |
| Lens | 4mm@ F2.0 (2.8mm, 6mm optional) |
| Lens Kurulumu | M12 |
| Ayarlanan Aralık | Pan:0° - 355°, Tilt: 0° - 75°, Rotation: 0-355° |
| Day& Night | IR cut filter with auto switch |
| Geniş Dinamik Aralık | Digital WDR |
| Dijtal Gürültü Azaltma | 3D DNR |
| Compression Standard | |
| Video Sıkıştırma | H.264/MJPEG |
| H.264 Türü | Baseline Profile / Main Profile |
| Video Bit Hızı | 32Kbps~8Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2 |
| Ses Bit Hızı | 64Kbps(G.711) /16Kbps(G.722.1)/16Kbps(G.726) /32-128Kbps(MP2L2) |
| Çift Akış | Yes |
| Image | |
| Max. Image Resolution | 1280x960 |
| Çerçeve Hızı | 50 Hz: 25 fps (1280 × 960), 25 fps (1280 x 720) |
| 60 Hz: 30 fps (1280 × 960), 30 fps (1280 x 720) | |
| Image Settings | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
| BLC | Yes, zone configurable |
| ROI | support |
| 3D DNR | support |
| Network | |
| Ağ Depolama | NAS (Support NFS,SMB/CIFS) |
| Alarm Trigger | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
| Protokoller | TCP/IP, UDP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, |
| PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour | |
| General Function | User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask |
| Sistem Uyumluluğu | ONVIF, PSIA, CGI, ISAPI |
| Interface | |
| Audio | 1-ch audio in, Mic in/Line in; |
| 1-ch audio out | |
| İletişim Arayüzü | 1 RJ45 10M / 100M Ethernet interface |
| Alarm | 1 alarm I/O |
| Alarm Girişi | 1 |
| Alarm Çıkışı | 1 |
| Dahili Depolama | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Wi-Fi Şartnamesi (-W) | |
| Kablosuz Standartlar | IEEE802.11b, 802.11g, 802.11n |
| Frekans Aralığı | 2.4 GHz ~ 2.4835 GHz |
| Kanal Bant Genişliği | 20/40MHz Support |
| Modülasyon Modu | 802.11b: CCK, QPSK, BPSK |
| 802.11g/n: OFDM | |
| Güvenlik | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| İletim Hızı | 11b: 11Mbps |
| 11g: 54Mbps | |
| 11n: up to 150Mbps | |
| Kablosuz Menzil | 50m(depend on environment) |
| Protokoller | 802.11b: CCK, QPSK, BPSK |
| 802.11g/n: OFDM | |
| General | |
| Çalışma Sıcaklığı | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | |
| Power Supply | 12 V DC ± 10%, PoE (802.3at) |
| GÜç Tüketimi | Max. 5W |
| Darbe Koruma | IEC60068-2-75Eh, 50J; EN50102, IK10 |
| Weather Proof | IP67 |
| IR Aralık | Up to 30m |
| Boyutlar | Φ111 × 82 (4.4” × 3.2”) |
| Ağırlık | 500g (1.1 lb) |
Hikvision DS 2CD2110F IS IP Dome Kamera Kullanıcı Kılavuzu (ing) Pdf Dosyası3.95 MB
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 1.3MP
