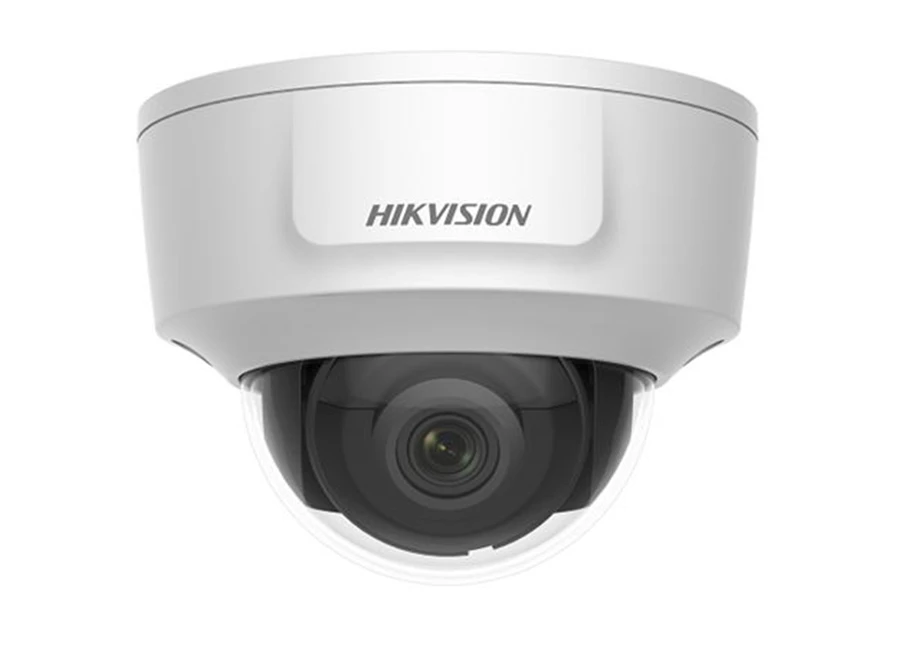

Hikvision DS 2CD2185G0 IMS IP Dome Kamera

Özellikler

1/2.5" Progressive Scan CMOS
3840× 2160@20ps
2.8/4/6 mm fixed lens
Color 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
H.265, H.264,
120dB WDR
4 Behavior analyses, and face detection
BLC/3D DNR/ROI/HLC
IK10
Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
3-Axis adjustment
IR range Up to 30 m

Teknik Özellikler

Camera
Image Sensor	1/2.8" Progressive Scan CMOS
İşaret Sistemi	PAL/NTSC
Minimum Aydınlatma	Color 0.028 Lux @(F2.0, AGC ON), 0 Lux with IR
Slow shutter	Support
Objektif Hızı	1/3 s to 1/100,000 s
Lens	2.8 mm, horizontal FOV 102° , vertical FOV 53° , diagonal FOV 124°
	4 mm, horizontal FOV 79° , vertical FOV 42° , diagonal FOV 95°
	6 mm, horizontal FOV 50° , vertical FOV 28° , diagonal FOV 59°
Lens Mount	M12
Ayarlanan Aralık	Pan 0° to 355°, tilt 0° to 75°, rotate 0° to 355°
Day& Night	IR cut filter with auto switch
Wide Dynamic Range	120 dB
Dijtal Gürültü Azaltma	3D DNR
Compression Standard
Video bit rate	32Kbps~16Mbps
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/MP3
Ses Bit Hızı	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8-320Kbps(MP3)
Çift Akış	Yes
Max. Image Resolution	1920 x 1080
Ana Akış	50Hz 25fps (640 × 480, 640 × 360, 320 × 240)
Ana Akış	60Hz 20fps (640 × 480, 640 × 360, 320 × 240)
Çerçeve Hızı	50Hz 20fps (3840 × 2160), 25fps (3072 × 1728, 1920 × 1080, 1280 × 720)
Çerçeve Hızı	60Hz 20fps (3840 × 2160, 3072 × 1728, 1920 × 1080, 1280 × 720)
Görüntü İyileştirme	BLC/3D DNR/HLC
Image Settings	Saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
ROI	Support 1 fixed region for main stream and sub stream separately
Gündüz / Gece Anahtarı	Auto/Scheduled
Network
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Protokoller	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
General Function	One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
	mask, Watermark, IP address filtering
Interface
Communication Interface	1 RJ45 10M / 100M Ethernet interface
Video Output	1 HDMI Output
Dahili Depolama	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Smart Feature-set
Behavior Analysis	Line crossing detection, intrusion detection, unattended baggage detection, object removal detection, face detection, scene change detection
Sınır İhlali	Cross a pre-defined virtual line
Saldırı Algılama	Enter and loiter in a pre-defined virtual region
Bırakılan Eşya	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Alınan Eşya	Objects removed from the pre-defined region, such as the exhibits on display.
General
Operating Conditions	IR on -10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing) IR off -10 °C to 50 °C (14 °F to 122 °F), humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 25%, PoE (802.3af Class3)
GÜç Tüketimi	12 VDC, 0.6 A, max. 7 W; PoE (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 8. 5W
IR Range	Up to 30m
Boyutlar	Camera Φ 119 × 90 mm (Φ 4.7" × 3.5")
Ağırlık	Camera Approx. 520 g (1.1 lb.)
Ağırlık	With package Approx. 750 g (1.7 lb.)
