Açıklama

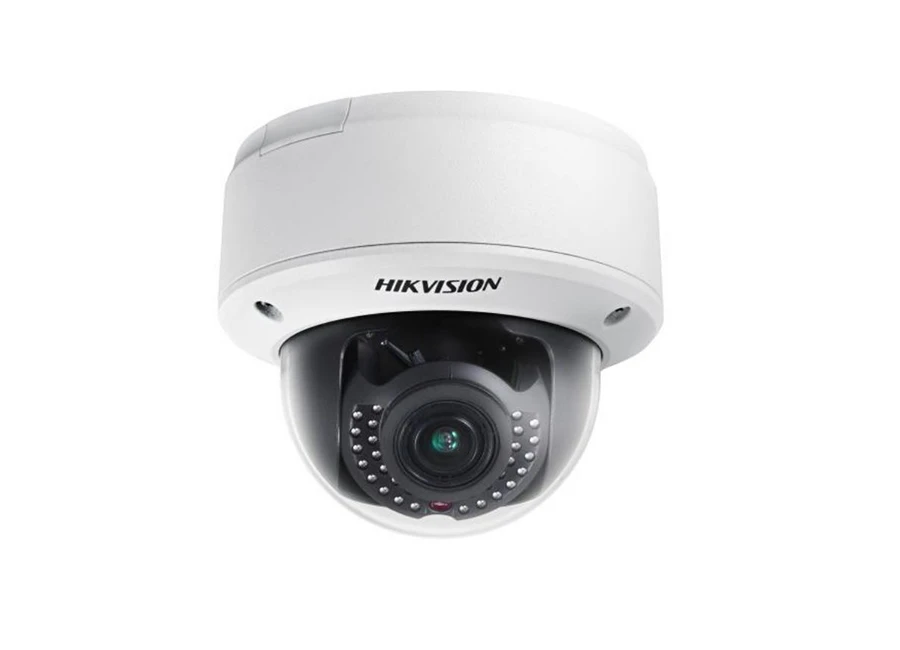

Hikvision DS 2CD4132F M IP Dome Kamera

Özellikler

1/3" progressive scan CMOS
Up to 2048 × 1536 resolution
120dB WDR, 3D DNR
Smart Codec
Smart IR
Smart Focus: Motorized VF lens(-Z)
Smart VQD
Smart Face Detection
Smart Audio Detection
Intrusion Detection
Defog, EIS, BLC

Teknik Özellikler

Camera
Image Sensor	1/3" Progressive Scan CMOS
İşaret Sistemi	PAL/NTSC
Minimum Aydınlatma	0.1 Lux @ (F1.2, AGC ON), 0 lux with IR
Minimum Aydınlatma	0.14 Lux @ (F1.4, AGC ON), 0 lux with IR
Objektif Hızı	1 s to 1/100,000 s
Lens	2.8-12mm @ F1.4, angle of view: 91.2-28.3°
Lens	-Z: 2.8-12mm @ F1.4, angle of view: 91.2-28.3°
Lens Mount	φ14
Auto Iris	DC drive
Ayarlanan Aralık	Pan:0° - 355°, Tilt: 0° - 75°, Rotation: 0° - 355°
Day& Night	IR cut filter with auto switch
Wide Dynamic Range	120 dB
Dijtal Gürültü Azaltma	3D DNR
Focus	Motorized VF lens(-Z model)
Compression Standard
Video Compression	H.264/MPEG4/MJPEG
Video bit rate	32Kbps~16Mbps
Audio Compression	G.711/G.722.1/G.726/MP2L2
Üçüncü Akım	Yes
Max. Image Resolution	1280x960
Çerçeve Hızı	50Hz: 20fps (2048 × 1536), 25fps (1920 × 1080), 25fps (1280 × 720)
Çerçeve Hızı	60Hz: 20fps (2048 × 1536), 30fps (1920 × 1080), 30fps (1280 × 720)
Üçüncül Akış	Independent with Main Stream and Sub Stream, up to
	50Hz: 20fps (2048 × 1536)
	60Hz: 20fps (2048 × 1536)
Image Settings	Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
BLC	Support
Akıllı Buğu Giderme	Support
EIS	Support
ROI	Support
Resim Yerleşimi	128 × 128, BMP 24bit, zone configurable
Network
Network Storage	NAS (Support NFS,SMB/CIFS)
Alarm Trigger	Line crossing detection, Intrusion detection, Defocus detection, Scene change detection, Motion detection, Face detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protokoller	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
Protokoller	PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
General Function	User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask
System Compatibility	ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
Ses Girişi	1-ch 3.5 mm audio interface, MIC IN/LINE IN
Ses Çıkışı	1-ch 3.5mm audio interface (line level, 600 Ω)
Communication Interface	1 RJ45 10M / 100M Ethernet interface and 1 RS-485 interface
Alarm Girişi	1
Alarm Çıkışı	1
Video Output	1Vp-p Composite Output (75 Ω, BNC)
Dahili Depolama	Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB
General
Operating Conditions	-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Operating Conditions	Humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 10%, PoE (802.3af)
GÜç Tüketimi	Max. 6.5 W
GÜç Tüketimi	Max. 9.5 W(IR: 2W, motorized VF lens: 1W)
Impact Protection	IK10
IR Range	Approx. 10 to 30 meters
Boyutlar	Φ 140 × 121.8 mm (Φ 5.51” × 4.80”)
Ağırlık	1400 g (3.09 lbs)
