Açıklama

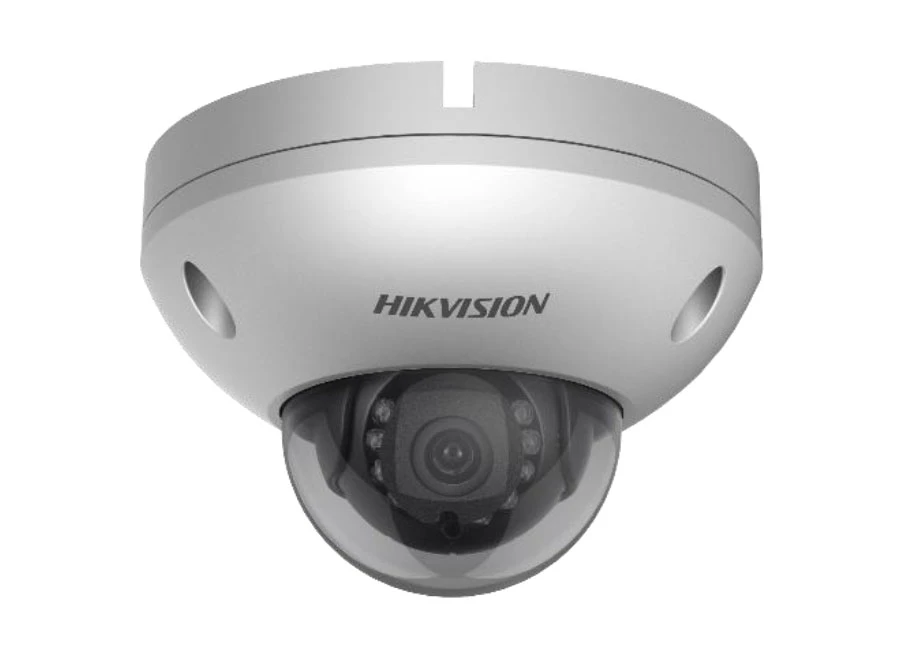

Hikvision DS 2XC6122FWD IS IP HD Dome Kamera

Özellikler

1/2.7’’ progressive scan CMOS
Up to 1920 × 1080 resolution
120dB WDR, 3D DNR
Anti-Corrosion Standard: WF-2, NEMA 4X, C5-M
Three video streams
6 behavior analyses, 2 exception detections, 1 recognition• Slow shutter
IR range: 10m

Teknik Özellikler

Camera
Image Sensor	1/2.7” Progressive Scan CMOS
Signal System	PAL/NTSC
Min. Illumination	0.01Lux @(F1.2,AGC ON) ,0 Lux with IR on
Min. Illumination	0.028 Lux @(F2.0,AGC ON), 0 Lux with IR on
Shutter time	1 s to 1/100,000 s
Slow shutter	Support
Lens	2.8/4/6mm optional
Lens Mount	M12
Auto Iris	DC drive
Adjustment Range	Tilt: 0° to 75°; Pan: -30° to 30°; Rotate: 0° to 360°
Day& Night	IR cut filter with auto switch
Wide Dynamic Range	120 dB
Digital noise reduction	3D DNR
Compression Standard
Video Compression	H.265/H.264/MJPEG
H.264 code profile	Baseline profile/Main Profile/High profile
Video bit rate	32Kbps~16Mbps
Audio Compression	G.711/G.722.1/G.726/MP2L2
Audio bit rate	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-128Kbps(MP2L2)
Dual Stream	Yes
Triple Streams	Yes
Max. Image Resolution	1920 x 1080
Frame Rate	2.8mm lens camera:
	50Hz: 25fps (1920 × 1080,1280 × 960,1280 × 720)
	60Hz: 24fps (1920 × 1080,1280 × 960,1280 × 720)
	4mm and 6mm lens camera:
	50Hz: 25fps (1920 × 1080,1280 × 960,1280 × 720)
	60Hz: 30fps (1920 × 1080,1280 × 960,1280 × 720)
Sub Stream	2.8mm lens camera:
	50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)
	60Hz: 24fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
	4mm and 6mm lens camera:
	50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)
	60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
Third Stream	2.8mm lens camera:
	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)
	60Hz: 24fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 ×240)
	4mm and 6mm lens camera:
	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)
	60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 ×240)
Image Enhancement	BLC/3D DNR/Defog
Image Settings	Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
Target Cropping	Support
BLC	Support
3D DNR	Support
Picture Overlay	LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Day/Night Switch	Auto/Schedule/Triggered by Alarm In
Network
Network Storage	microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP
Intelligent
Behavior analysis	Support
Interface
Communication Interface	1 RJ45 10M / 100M Ethernet interface
Alarm	Support
Alarm Input	1
Alarm Output	1
On-board storage	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button	Yes
Smart Feature-set
Behavior Analysis	Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
Line Crossing Detection	Cross a pre-defined virtual line
Intrusion Detection	Enter and loiter in a pre-defined virtual region
Region Entrance	Enter a pre-defined virtual region from the outside place
Region Exiting	Exit from a pre-defined virtual region
Unattended Baggage	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal	Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections	Scene change detection, defocus detection
Recognition	Face Detection
Wi-Fi Specification (-W)
Wireless Standards	IEEE802.11b, 802.11g, 802.11n
General
Operating Conditions	-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Operating Conditions	Humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 10%, PoE (802.3af)
Power Consumption	Max. 5W
Weather Proof	IP67
IR Range	10 meters
Dimensions	Camera: Φ 113 × 77.3 mm (4.45″ × 3.04″)
Dimensions	Package: 257 × 167 ×145 mm (10.12″ × 6.57″ × 5.71″)
Weight	Camera: 1680 g (3.7 lb.)
