Açıklama

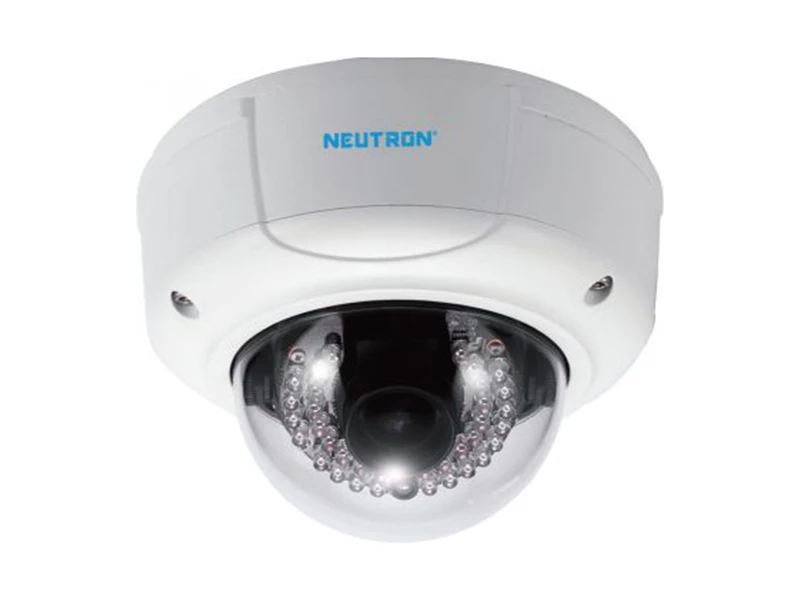

Neutron IPC HDBW3300N IP HD Dome Kamera
Özellikler
- 1/2.8” 3Megapixel progressive scan Exmor CMOS> H.264 & MJPEG dual-stream encoding
- Max 20fps 3.0M(2048×1536)&25/30fps 1080P(1920×1080)
- DWDR, Day/Night(ICR), 2DNR, Auto iris, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- 3.3~12mm varifocal lens
- Built-in 2/1 alarm in/out
- Max. IR LEDs length 20m
- Micro SD memory, IP66, IK10, PoE
Teknik Özellikler
Camera | ||
Image Sensor | 1/2.8” 3Megapixel Exmor CMOS | |
Effective Pixels | 2096(H)x1561(V) | |
Scanning System | Progressive | |
Electronic ShutterSpeed | Auto/Manual 1/4~1/10000 | |
Min. Illumination | Color: 0. 2Lux/F1.4, B/W: 0.01Lux/F1.4, 0Lux(IR on) | |
S/N Ratio | >50dB | |
Video Output | 1 channel, BNC(1.0Vp-p, 75Ω) | |
Camera Features | ||
Max. IR LEDs Length | 20m | |
Day/Night | Auto(ICR) / Color / B/W | |
Backlight Compensation | BLC / HLC / DWDR | |
White Balance | Auto | |
Gain Control | Auto/Manual | |
Noise Reduction | 2D | |
Privacy Masking | Up to 4 areas | |
Lens | ||
Focal Length | 3.3~12mm | |
Max Aperture | F1.4 | |
Focus Control | Manual | |
Angle of View | H: 79.3°(Wide)~29.8°(Tele) | |
Lens Type | Manual / Auto Iris (DC) | |
Mount Type | CS | |
Video | ||
Compression | H.264 / MJPEG | |
Resolution | 3.0M(2048×1536) / 1080P(1920×1080) / 720P(1280×720) / D1(704×480) / CIF(352×240) / | |
Frame Rate | Main Stream | 3M(1~20fps)/1080P/720P(1 ~ 25/30fps) |
Sub Stream | D1/CIF(1 ~ 25/30fps) | |
Bit Rate | H.264: 32K ~ 8192Kbps, MJPEG: 32K ~ 24576Kbps | |
Audio | ||
Compression | G.711a / G.711u (64kbps) / PCM(128kbps) | |
Interface | 1/1 channel In/Out | |
Network | ||
Ethernet | RJ-45 (10/100Base-T) | |
Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour | |
ONVIF | ONVIF Ver. 2.0 | |
Max. User Access | 10 users | |
Smart Phone | iPhone, iPad, Android, Windows Phone | |
Auxiliary Interface | ||
Memory Slot | Micro SD, Max 32GB | |
Alarm | 2/1 channel In/Out | |
General | ||
Power Supply | DC12V/AC24V, PoE(802.3af) | |
Power Consumption | <10W | |
Working Environment | -10°C~+60°C, 10%~90% | |
Protection Level | IK10 & IP66 | |
Dimensions | Φ160mm×118.5mm | |
Weight | 1.25kg |
Neutron IPC HDBW3300N IP HD Dome Kamera Pdf Dosyası119.23 KB
Teknik Kısa
Çözünürlük : 3MP
Ses : Var
Irled : Var
Depolama : Var
