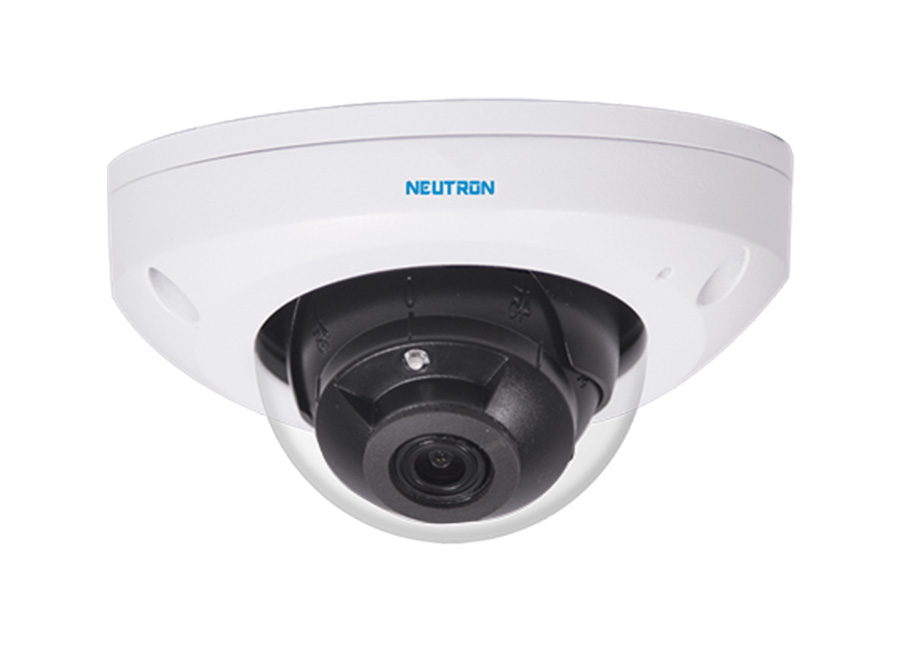

Neutron IPC312SR VPF40 C IP Dome Kamera

Özellikler

Smart IR, up to 15m (49 ft) IR distance
Ultra 265,H.265, H.264,MJPEG
ROI (Region of Interest)
IK10 vandal resistant, IP66

Teknik Özellikler

	IPC312SR-VPF28-C			IPC312SR-VPF40-C
Camera
Sensor	1/2.9", progressive scan ,2.0 megapixel, CMOS
Lens	2.8mm@F2.0			4.0 mm@F2.0
DORI Distance	Lens	Detect(m)	Observe(m)		Recognize(m)	Identify(m)
	2.8mm	45	18.1		9.1	4.5
	4mm	64.3	25.7		12.9	6.4
Angle of View (H)	107.8°			82.0°
Angle of View (V)	56.7°			41.4°
Angle of View (O)	140.2°100.9°
Adjustment angle	Pan:0°~90°		Tilt: 0°~65°			Rotate: 0°~360°
Shutter	Auto/Manual, 1~1/100000 s
Minimum Illumination	Colour: 0.005Lux (F2.0, AGC ON)
	0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	≥52dB
IR Range	Up to 15m (49 ft) IR range
Defog	Digital Defog
WDR	DWDR
Video
Video Compression	Ultra 265, H.264,MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream:2MP (1920×1080): Max. 30 fps;
	Sub Stream:2MP (1920×1080): Max. 30 fps;
	Third Stream:D1 (720×576): Max. 30 fps
HLC	Supported
BLC	Supported
9:16 Corridor Mode	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
Smart
Behavior Detection	Intrusion, cross line, motion detection
Intrusion	Enter and loiter in a pre-defined virtual region
cross line	Cross a pre-defined virtual line
motion detection	Moving within a pre-defined virtual region
Recognition	Face detection、Audio detection
Intelligent Identification	Defocus, Scene Change, Object Left, Object Moving
Statistical Analysis	People counting
General Function	Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression	G.711
Two-way audio	Supported
Suppression	Supported
Sampling Rate	8 KHZ
Storage
Edge Storage	Micro SD, Up to 256 GB
Network Storage	ANR
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible Integration	ONVIF(Profile S, Profile G, Profile T), API
Interface
Audio I/O	audio cable
	Input: impedance 35 kΩ; amplitude 2 V [p-p]
	Output: impedance 600 Ω; amplitude 2 V [p-p]
Built-in Mic	Supported
Network	1 RJ45 10M/100M Base-TX Ethernet
General
Power	12 V DC±25%, PoE (IEEE 802.3af)
	Power consumption: Max 4.5W
Dimensions (Ø x H)	Φ110 x 61 mm (Ø4.3” x 2.4”)
Weight	0.25 kg (0.55 lb)
Working Environment	-35°C ~ +60°C (-31°F ~ 140°F), Humidity:10%~95% RH(non-condensing)
Ingress Protection	IP66
Vandal Resistant	IK10
