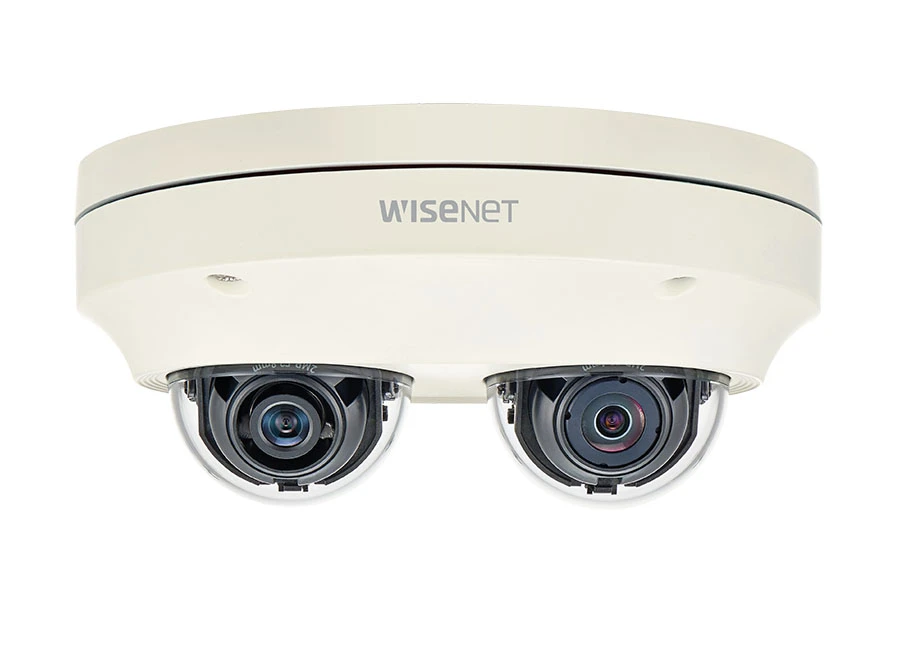

Samsung PNM 7000VD IP Dome Kamera
Özellikler
Teknik Özellikler
| VIDEO | |
| Video Out | CVBS : 1.0 Vpp / 75O composite, 720 x 480(N), 720 x 576(P), for installation |
| OPERATIONAL | |
| Camera Title | Off / On (Displayed up to 85 characters) |
| - W/W : English / Numeric / Special characters | |
| - China : English / Numeric / Special / Chinese characters | |
| - Common : Multi-line (Max. 5), Color (Gray / Green / Red / Blue / Black / White), | |
| Transparency, Auto scale by resolution | |
| Day & Night | Auto (Electrical) / Color / B/W / Schedule |
| Backlight Compensation | Off / BLC / HLC (Masking / Dimming), WDR |
| Wide Dynamic Range | 150dB |
| Contrast Enhancement | SSDR (Off / On) |
| Digital Noise Reduction | SSNR. (2D + 3D noise filter) (Off / On) |
| Digital Image Stabilization | Off / On |
| Defog | Off / Auto / Manual |
| Motion Detection | Off / On (8ea, 8point polygonal zones) |
| Privacy Masking | Off / On (32ea, polygonal zones) |
| - Color : Gray / Green / Red / Blue / Black / White | |
| - Mosaic | |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor (included mercury & Sodium) |
| Contrast | Level adjustment |
| LDC (Lens Distortion Correction) | On / Off (5 Levels with min / max) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Digital Zoom | 24x |
| Flip / Mirror | Off / On, Hallway view : 90°/270° |
| Video & Audio Analytics | Tampering, Loitering, Directional detection, Fog & Dust detection, Virtual line, Enter / Exit, (Dis)Appear, Face detection, Motion detection |
| Alarm Triggers | Motion detection, Video analytics, Network disconnect |
| Alarm Events | File upload via FTP, E-mail, Notification via E-Mail |
| Local storage (SD / SDHC / SDXC) or NAS recording at event triggers | |
| Pixel Counter | Support |
| NETWORK | |
| Ethernet | RJ-45 (10/100/1000BASE-T) |
| Video Compression Format | H.265/H.264 (MPEG-4 Part 10/AVC) : Main / Baseline / High, MJPEG |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Max. Framerate | H.265 / H.264 : 2M Max. 60fps at all resolutions, MJPEG : Max. 30fps |
| Smart Codec | Manual Mode (area-based : 5EA) |
| WiseStream II | Support |
| Video Quality Adjustment | H.265 / H.264, MJPEG : Target Bitrate Level Control |
| Bitrate Control Method | H.265 / H.264 : CBR or VBR, MJPEG : VBR |
| Streaming Capability | Multiple Streaming (Up to 10 Profiles) |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour |
| Security | HTTPS(SSL) login authentication, Digest login authentication, |
| IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP) | |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 users at unicast mode |
| Edge Storage | SD/SDHC/SDXC 2slots (Each) |
| - Motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded. | |
| Local PC for instant recording | |
| Application Programming Interface | ONVIF Profile S, SUNAPI (HTTP API) |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 |
| Non-plugin Webviewer | |
| - Supported Browser : Google Chrome 63, MS Edge 41, Mozilla Firefox 57 (Window 64bit only), Apple Safari 11 (Mac OS X only) | |
| Plug-in Webviewer | |
| - Supported Browser : MS Explore 11, Apple Safari 11 (Mac OS X only) | |
| Central Management Software | SmartViewer, SSM |
| ENVIRONMENTAL | |
| Operating Temperature / Humidity | -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
| Ingress Protection | IP66 |
| Vandal Resistance | IK10 |
| ELECTRICAL | |
| Input Voltage / Current | PoE (IEEE802.3af, Class3) |
| Power Consumption | Max. 12.95W (PoE) |
| MECHANICAL | |
| Color / Material | Ivory (NCS S 0502-Y) / Metal |
| Dimensions (WxH) | Ø161.0 x 73.0mm (Ø6.34" x 2.87") |
| Weight | 840g (1.85 lb) |
Teknik Kısa
Depolama : Var
Çözünürlük : 2MP (1080P)
