Açıklama

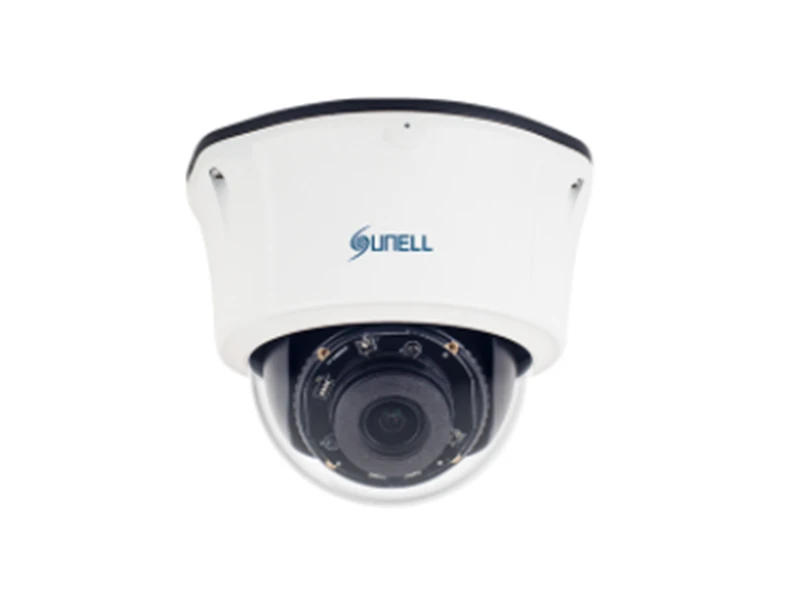

Sunell IPV54/14CMDR(III) IP Dome Kamera
Özellikler
Teknik Özellikler
CAMERA | |
Image Sensor | 1/2.9” Progressive Scan CMOS |
Min. illumination | Color:0.01Lux@(F1.2,AGC ON) ;B/W:0Lux@(IR LED ON) |
Day & Night | ICR |
Shutter Speed | 1/5-1/20000s |
Auto Iris | Fixed |
Wide Dynamic Range | dWDR |
Digital Noise Reduction | 2D/3D |
Lens | 3.6mm,2.8/6mm optional |
FOV | 85° |
IR LED | 2pcs |
IR Range | Up to 20m |
IMAGE | |
Video Compression | H.264 High/Main/Baseline Profile, MJPEG |
Bit Rate (CBR/VBR) | Main stream:500kb-12000kb ;Sub stream 100kb-6000kb |
Audio Compression | G.711 ,RAW_PCM |
Max.Resolution | 1920x1080/30fps |
Stream | Stream1 1920x1080/1280x720 |
Stream2 D1 to QVGA | |
Image Setting | Rotate Mode,Saturation,Brightness,Contrast,Sharpness |
HLC | Yes |
9/16 Corridor mode | Yes |
ROI | Yes |
Defog | Yes |
NETWORK | |
Network Protocols | IPv4,802.1x,HTTP,HTTPS,TCP/IP,UDP/IP,RTSP,DHCP,NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ICMP ,IGMP, Unicast and Multicast. |
Alarm Trigger | Motion Detection,Networkdisconnect,Diskalarm,I/O alarm |
RTSP Video | Standard RFC2326, Support QuickTime / VLC Player. |
Security | User security authentication, Reset, Hardware Watch Dog |
Web Language | English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian (Sunell Brand) |
System Compatibility | Onvif |
INTERFACE | |
Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
Microphone | Yes(Built-in) |
Audio I/O | Default 1ch Audio Out,Optional1ch Audio In/Out |
Alarm I/O | Default Not support,Optional1ch Alarm In/Out |
RS485 | N/A |
BNC Output | Yes |
Reset Button | Yes (build-in) |
Edge Storage | Micro SD/SDHC slot ,Max 32GB |
GENERAL | |
Power Supply | DC12V/POE |
Power Consumption | 5W(IR LED OFF);7W(IR LED ON) |
OperatingTemperature | Starting Temperature: -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
Working Temperature:-40 °C ~ 60 °C (-40 °F ~ 140 °F) | |
Operating Humidity | 0% - 90% RH |
Ingress Protection | IP67,IK10 |
Approvals | CE / FCC |
Product Dimensions | 120.6x96.28mm |
Teknik Kısa
Depolama : Var
Ses : Var
Irled : Var
Çözünürlük : 2MP (1080P)
