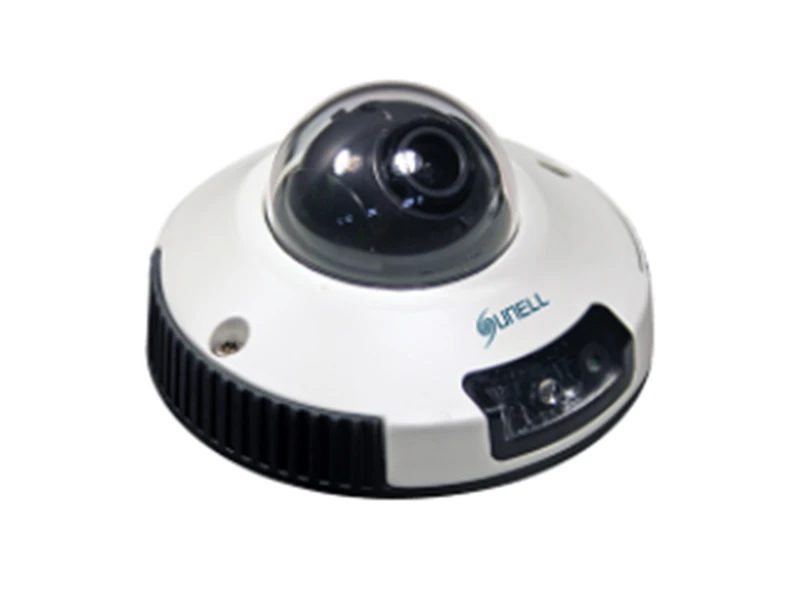

Sunell IPV57/41ZDR IP Mini Dome Kamera
Özellikler
Teknik Özellikler
| CAMERA | |
| Image Sensor | 1/3” Progressive Scan CMOS |
| Min. illumination | Color:0.01Lux@(F1.2,AGC ON) ;B/W:0Lux@(IR LED ON) |
| Day & Night | ICR |
| Shutter Speed | 1/5s-1/20000s |
| Auto Iris | Fixed |
| Wide Dynamic Range | WDR>120dB |
| Digital Noise Reduction | 2D/3D |
| Lens | 2.8mm (3.6mm Optional) |
| FOV | 90° |
| IR LED | 1pcs |
| IR Range | Up to 10m |
| IMAGE | |
| Video Compression | H.264/265, MJPEG |
| Bit Rate (CBR/VBR) | Main stream:500kb-12000kb ;Sub stream 100kb-6000kb |
| Audio Compression | G.711 ,RAW_PCM |
| Max.Resolution | 2592*1520/30fps |
| Stream | Stream1 2592*1520/2560*1440/2304*1296/1920x1080 |
| Stream2 D1 to QVGA | |
| Image Setting | Rotate Mode,Saturation,Brightness,Contrast,Sharpness |
| HLC | Yes |
| 9/16 Corridor mode | Yes |
| DIS | Auto |
| ROI | Yes |
| Defog | Yes |
| NETWORK | |
| Network Protocols | IPv4,802.1x,HTTP,HTTPS,TCP/IP,UDP/IP,RTSP,DHCP,NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ICMP ,IGMP, Unicast and Multicast. |
| Alarm Trigger | Perimeter ,Single Virtual Fences ,Double Virtual Fences ,Loiter ,Multi Loiter ,Object Left ,Object Removed, Abnormal Speed ,Converse, Illegal Parking ,Signal Bad ,Motion Detection,Network disconnect,Disk alarm, |
| RTSP Video | Standard RFC2326, Support QuickTime / VLC Player. |
| Security | User security authentication, Reset, Hardware Watch Dog |
| Web Language | English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian (Sunell Brand) |
| System Compatibility | Onvif |
| INTERFACE | |
| Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Microphone | Optional |
| Audio I/O | 1ch Audio In&1ch Audio Out |
| Alarm I/O | N/A |
| RS485 | N/A |
| BNC Output | Yes |
| Reset Button | Yes |
| Edge Storage | Micro SD/SDHC slot ,Max 128GB |
| GENERAL | |
| Power Supply | DC12V/POE |
| Power Consumption | 2.5W(IR LED OFF)；5W（IR LED ON） |
| OperatingTemperature | Starting Temperature: -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Working Temperature:-40 °C ~ 60 °C (-40 °F ~ 140 °F) | |
| Operating Humidity | 0% - 90% RH |
| Ingress Protection | IP67 |
| Approvals | CE / FCC |
| Product Dimensions | φ100×53mm |
Teknik Kısa
Depolama : Var
Çözünürlük : 4MP
