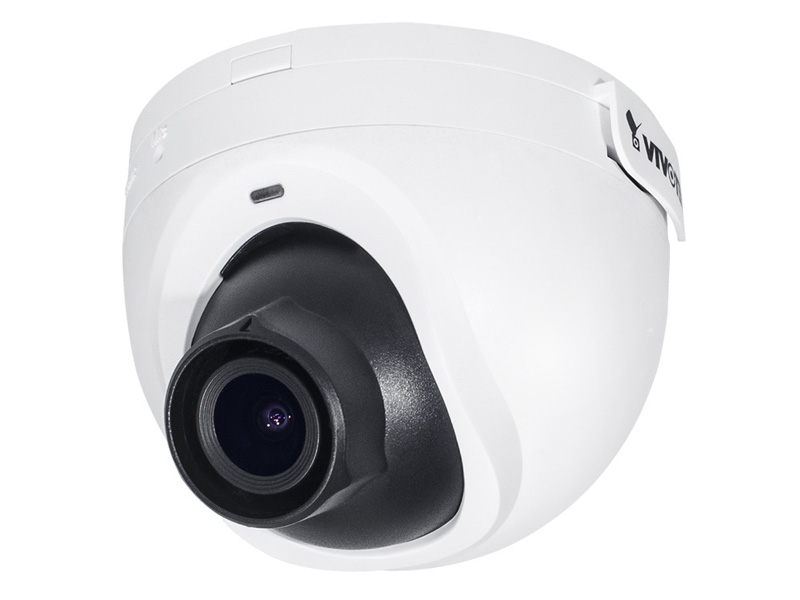

Vivotek FD8168 IP HD Dome Kamera
Özellikler
Teknik Özellikler
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 16 MB |
| RAM | 256 MB |
| Camera Features | |
| Image sensor | 1/2.7" progressive CMOS |
| Maximum Resolution | 1920x1080 |
| Lens Type | Fixed-focal |
| Focal Length | f = 3.6 mm |
| Aperture | F1.8 |
| Field of View | 97° (horizontal) |
| 52° (vertical) | |
| 113° (diagonal) | |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| Minimum Illumination | 0.58 Lux @ F1.8 |
| Tilt range | 90° |
| On-board Storage | MicroSD/SDHC/SDXC card slot |
| Video | |
| Compression | H.264 & MJPEG |
| Maximum Frame Rate | In both compression: |
| 15 fps @ 1920x1080 | |
| 30 fps @ 1280x720 | |
| Maximum Streams | 3 simultaneous streams |
| S/N Ratio | Above 53 dB |
| Video Streaming | Adjustable resolution, quality and bitrate |
| Configurable video cropping for bandwidth saving | |
| Image Settings | Adjustable image size, quality and bit rate |
| Time stamp, text overlay, flip & mirror | |
| Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks | |
| Scheduled profile settings | |
| Audio | |
| Audio Capability | Audio input |
| Compression | G.711, G.726 |
| Interface | Built-in microphone |
| Effective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP |
| Interface | 10Base-T / 100BaseTX Ethernet (RJ-45) |
| * It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard. | |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Triple-window video motion detection |
| Alarm and Event | |
| Alarm Triggers | Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection |
| Alarm Events | Event notification using digital output, HTTP, SMTP, FTP and NAS server |
| File upload via HTTP, SMTP, FTP and NAS server | |
| General | |
| Connectors | RJ-45 for Network/PoE connection |
| LED Indicator | System power and status indicator |
| Power input | IEEE 802.3af PoE Class 1 |
| Power consumption | Max. 2.3 W |
| Dimensions | Ø: 62 mm x 50 mm (with bracket) |
| Ø: 62 mm x 45 mm (w/o bracket) | |
| Weight | Net: 80 g |
| Safety Certifications | CE C-Tick FCC ( Class B ) LVD VCCI |
| Operating Temperature | Starting Temperature: -10°C ~ 40°C (14°F~ 104°F) |
| Working Temperature: -20°C ~ 40°C (-4°F~ 104°F) | |
| Warranty | 24 Months |
| System Requirements | |
| Operating System | Microsoft Windows 7 / Vista / XP / 2000 |
| Browser | Mozilla Firefox 7 - 10 ( Streaming only ) |
| Internet Explorer 7.x ,8.x, 9.x, 10.x | |
| Other Players | VLC: 1.1.11 |
| QuickTime: 7 or above | |
| Included Accessories | |
| Others | Quick installation guide, warranty card, alignment sticker, ceiling mount bracket, wall-mount bracket |
Teknik Kısa
Çözünürlük : 2MP (1080P)
Depolama : Var
