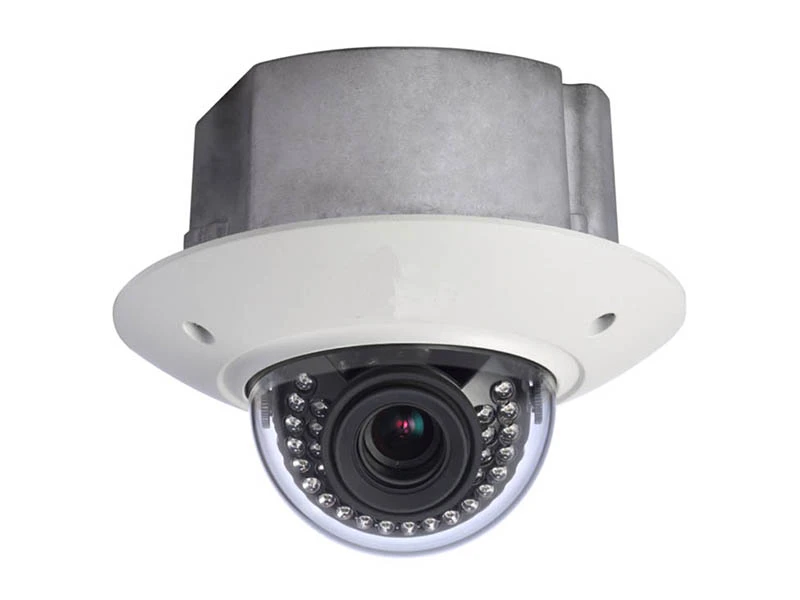

Dahua DH IPC HDBW3101DI IP HD Dome Kamera
Özellikler
- 1/3” 1.3Megapixel progressive scan Aptina CMOS
- H.264 & MJPEG dual-stream encoding
- Max 25/30fps @ 1.3M(1280×960)&25/30fps @ 720P(1280×720)
- WDR, Day/Night(ICR), 2DNR, Auto iris, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- 2.8~12mm varifocal lens
- Built-in 1/1 alarm in/out
- Max IR LEDs length 20m
- Micro SD memory, IP66, IK10, PoE
Teknik Özellikler
Model | DH-IPC-HDBW3101P | DH-IPC-HDBW3101N | |
Camera | |||
Image Sensor | 1/3” 1.3Megapixel Aptina CMOS | ||
Effective Pixels | 1280(H)x960(V) | ||
Scanning System | Progressive | ||
Electronic ShutterSpeed | Auto/Manual 1/3~1/10000 | Auto/Manual 1/4~1/10000 | |
Min. Illumination | 0.1lux/F1.4(color),0.005Lux/F1.4(B/W),0Lux(IR on) | ||
S/N Ratio | >50dB | ||
Video Output | 1 channel BNC(1.0Vp-p, 75Ω) | ||
Camera Features | |||
Max. IR LEDs Length | 20m | ||
Day/Night | Auto(ICR)/Color/B/W | ||
Backlight Compensation | Off/BLC/HLC/WDR(128dB) | ||
White Balance | AUTO | ||
Gain Control | Auto/Manual | ||
Noise Reduction | 2D | ||
Privacy Masking | Up to 4 areas | ||
Lens | |||
Focal Length | 2.8~12mm | ||
Max Aperture | F1.4 | ||
Focus Control | Manual | ||
Angle of View | H: 92°(Wide)~27.2°(Tele) | ||
Lens Type | Manual/Auto Iris (DC) | ||
Mount Type | Board-in Type | ||
Video | |||
Compression | H.264 / MJPEG | ||
Resolution | 1.3M(1280×960) / 720P(1280×720) / D1(704×576) / CIF(352×288) / | 1.3M(1280×960) / 720P(1280×720) / D1(704×480) / CIF(352×240) / | |
Frame Rate | Main Stream | 1.3M/720P(1 ~ 25/30fps) | |
Sub Stream | D1/CIF(1 ~ 25/30fps) | ||
Bit Rate | H.264: 32K ~ 8192Kbps, MJPEG: 32K ~ 12288Kbps | ||
Audio | |||
Compression | G.711a / G.711u (64kbps)/ PCM(128kbps) | ||
Interface | 1/1 channel In/Out | ||
Network | |||
Ethernet | RJ-45 (10/100Base-T) | ||
Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour | ||
ONVIF | ONVIF Ver. 2.0 | ||
Max. User Access | 10 users | ||
Smart Phone | iPhone, iPad, Android, Windows Phone | ||
Auxiliary Interface | |||
Memory Slot | Micro SD, Max 32GB | ||
Alarm | 1/1 channel In/Out | ||
General | |||
Power Supply | DC12V/AC24V, PoE(802.3af) | ||
Power Consumption | <8w td=""> | ||
Working Environment | -10°C~+60°C(-40~60°C optional), 10%~90% | ||
Protection Level | IK10 & IP66 | ||
Dimensions | Φ151x119mm | ||
Weight | 1.05kg |
Teknik Kısa
Çözünürlük : 1.3MP
Irled : Var
Depolama : Var
