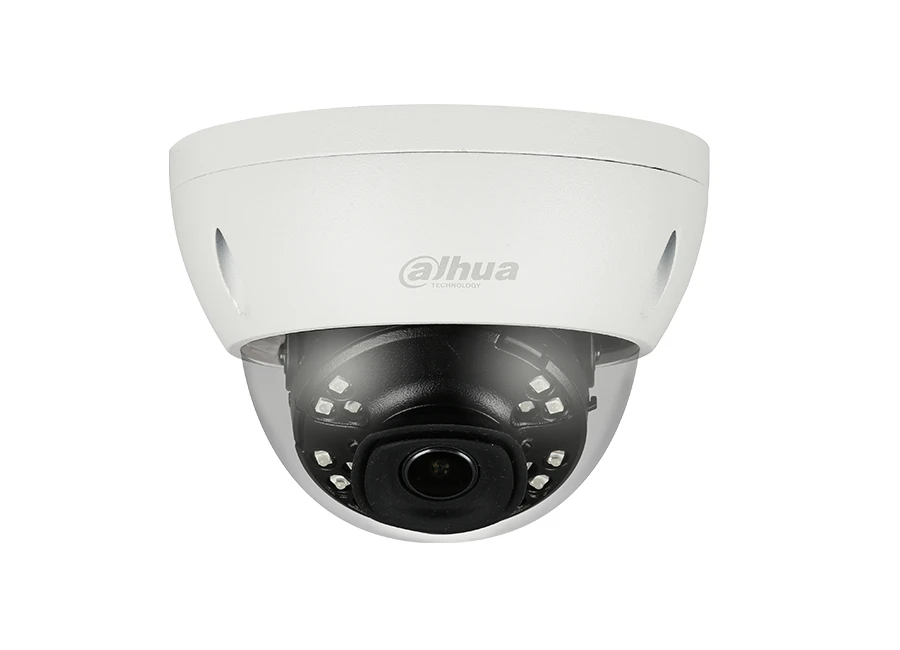

Dahua IPC HDBW4431E AS S4 IR IP Mini Dome Kamera

Özellikler

1/3” 4Megapixel progressive scan CMOS
H.265&H.264 triple-stream encoding
25/30fps@4Mp(2688×1520)
Smart Detection supported
WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
2.8mm fixed lens (3.6mm, 6mm optional)
1/1 Alarm in/out, 1/1 audio in/out
Max. IR LEDs Length 30m
Micro SD memory 256GB, IP67, IK10, PoE

Teknik Özellikler

Camera
Image Sensor	1/3”4Megapixel progressive scan CMOS
Effective Pixels	2688(H)x1520(V)
RAM/ROM	512MB/32MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3(4)~1/100000s
Minimum Illumination	0.03Lux/F2.0( Color,1/3s,30IRE)
	0.3Lux/F2.0( Color,1/30s,30IRE)
	0Lux/F2.0(IR on)
IR Distance	Distance up to 30m (98ft)
IR On/Off Control	Auto/ Manual
IR LEDs	18
Lens
Lens Type	Fixed
Mount Type	Board-in
Focal Length	2.8mm (3.6mm, 6mm optional）
Max. Aperture	F2.0 (F2.0, F2.0)
Angle of View	H: 103° (81°, 51°), V: 55° (44°, 29°)
Optical Zoom	N/A
Aperture Type	Fixed
Close Focus Distance	0.8m(1.4m, 2.8m)
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	2.8 mm	56m(184ft)	22m(72ft)	11m(36ft)	6m(20ft)
	3.6 mm	80m(262ft)	32m(105ft)	16m(52ft)	8m(26ft)
	6.0 mm	120m(394ft)	48m(157ft)	24m(79ft)	12m(39ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range	Pan:0˚~355˚; Tilt:0˚~64˚; Rotation:0˚~355˚
Intelligence
IVS	Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions	Face Detection
Video
Compression	H.265+/H.265/H.264+/H.264
Streaming Capability	3 Streams
Resolution	4M(2688×1520)/3M(2304×1296)/
	1080P(1920x1080)/1.3M(1280x960)/ 720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240)
Frame Rate	Main Stream: 4M(1~25/30fps)
	Sub Stream: D1(1~25/30fps)
	Third Stream: 1080P(1~14/4fps)
Bit Rate Control	CBR/VBR
Bit Rate	H.264: 192~10240Kbps
	H.265: 80~8192Kbps
Day/Night	Auto(ICR) / Color / B/W
BLC Mode	BLC / HLC / WDR(120dB)
White Balance	Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control	Auto/Manual
Noise Reduction	3D DNR
Motion Detetion	Off / On (4 Zone, Rectangle)
Region of Interest	Off / On (4 Zone)
Electronic Image Stabilization (EIS)	N/A
Smart IR	Support
Defog	N/A
Digital Zoom	16x
Flip	°/90°/180°/270°
Mirror	Off / On
Privacy Masking	Off / On (4 Area, Rectangle)
Audio
Compression	G.711a/ G.711Mu/ AAC/ G.726
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;IGMP; SNMP; SFTP; RTMP; NFS; SMB
Interoperability	ONVIF, CGI, Milstone, Genetec
Streaming Method	Unicast / Multicast
Max. User Access	10 Users /20 Users
Edge Storage	NAS
	Local PC for instant recording
	Mirco SD card 256GB
Web Viewer	IE, Chrome, Firefox, Safari
Management Software	Smart PSS, DSS, Easy4ip
Smart Phone	IOS, Android
Certifications
Certifications	CE (EN 60950:2000)
	UL:UL60950-1
	FCC: FCC Part 15 Subpart B
Interface
Video Interface	N/A
Audio Interface	1/1 channel In/Out
RS485	N/A
Alarm	1 channel In: 5mA 5VDC
	1 channel Out: 300mA 12VDC
Electrical
Power Supply	DC12V, PoE (802.3af)(Class 0)
Power Consumption	<7.5W
Environmental
Operating Conditions	-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH
Strorage Conditions	-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH
Ingress Protection	IP67
Vandal Resistance	IK10
Construction
Casing	Metal
Dimensions	Φ109.9mm×81mm (4.33”×3.19”)
Net Weight	0.37kg (0.82lb)
Gross Weight	0.51 kg (1.12lb)
