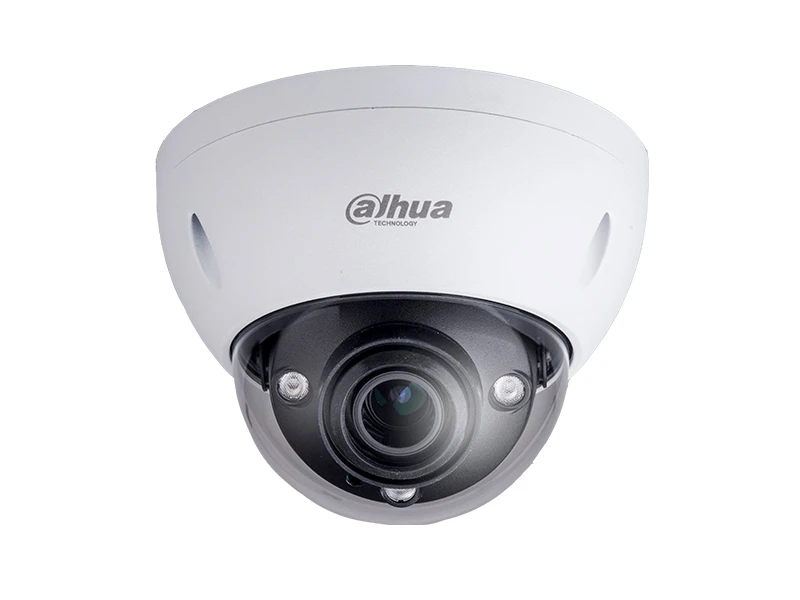

Dahua IPC HDBW8242E Z4FR IR IP Dome Kamera

Özellikler

1/1.9” 2Megapixel progressive scan CMOS
H.265&H.264 triple-stream encoding
50/60fps@1080P(1920×1080)
WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Micro SD memory, PoE+
Max. IR LEDs Length 100m
Support face capture, face attributes, face recognition

Teknik Özellikler

Camera
Image Sensor	1/1.9” 2Megapixel progressive scan CMOS
Effective Pixels	1920(H)x1080(V)
RAM/ROM	2048MB/4096MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3~1/100000s
Minimum Illumination	0.002Lux/F1.53( Color,1/3s,30IRE)
	0.01Lux/F1.53( Color,1/30s,30IRE)
	0Lux/F1.53(IR on)
S/N Ratio	More than 50dB
IR Distance	Distance up to 100m(328ft)
IR On/Off Control	Auto/Manual
IR LEDs	3
Lens
Lens Type	Motorized
Mount Type	Board-in
Focal Length	8~32mm motorized
Max. Aperture	F1.53
Angle of View	H: 40°~12.9° V:22°~7.2°
Optical Zoom	4x
Focus Control	Motorized
Close Focus Distance	3m(9.84ft)
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	W	106m (348ft)	42m (138ft)	21m (69ft)	10m (32ft)
	T	320m (1050ft)	128m (420ft)	64m (210ft)	32m (105ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range	Pan:0˚~355˚; Tilt:0˚~75˚; Rotation:0˚~355˚
Artificial Intelligence
Face Capture	Support face image capture
Face Attributes	Support 6 kinds of faceattributes extraction:Age, Gender, Expression(Jolly, Calm,Surprise, Sad, Rage), Glasses, Mouth Mask, Moustache & Beard
Face Recognition	Support face images matching, support up to 10000 face images and 5 image libraries management;
General Intelligence
Event Trigger	Motion detection, Video tampering ,Scene changing, Network disconnection ,IP address conflict, Illegal Access,Storage anomaly
General Intelligence	Tripwire, Intrusion, Object Abandoned/Missing, People Counting, Heat Map
Video
Compression	H.265/H.264/H.264B/H.264H/MJPEG(sub stream)
Smart Codec	Support H.265+/H.264+
Streaming Capability	3 Streams
Resolution	1080P(1920×1080)/ 1.3M(1280x960)/720P(1280x720)/ D1 (704×576/704x480)/VGA(640x480)
Frame Rate	Main Stream: 1080P(1~50/60fps) Sub Stream: D1 (1 ~ 50/60fps) Third Stream: 1080P(1~50/60fps)
Bit Rate Control	CBR/VBR
Bit Rate	H.264: 24~ 10240Kbps
	H.265: 14~ 6144Kbps
Day/Night	Auto(ICR) / Color / B/W
BLC Mode	BLC / HLC / WDR(120dB)/ SSA
White Balance	Auto/Manual
Gain Control	Auto/Manual
Noise Reduction	3D DNR
Motion Detection	Off / On (4 Zone, Rectangle)
Region of Interest	Off / On (4 Zone)
Electronic Image Stabilization (EIS)	Support
Smart IR	N/A
Defog	Support
Digital Zoom	16x
Flip	°/90°/180°/270°
Mirror	Off / On
Privacy Masking	Off / On (4 Area, Rectangle)
Audio
Compression	G.711a/ G.711Mu/ AAC/ G.726
Network
Ethernet	RJ-45 (100/1000Base-T)
Protocol	HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP; NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;SNMP;TLS
Interoperability	ONVIF Profile S&G, API
Streaming Method	Unicast / Multicast
Max. User Access	10 Users/20 Users
Edge Storage	NAS
	Local PC for instant recording
	Micro SD card 128GB
Web Viewer	IE, Chrome, Firefox, Safari
Management Software	Smart PSS, DSS, DMSS
Smart Phone	IOS, Android
Certifications
Certifications	CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B
Interface
Video Interface	1 Port(For adjustment only)
Audio Interface	1/1 channel In/Out
RS485	1 port
Alarm	1 channel In: 5mA 5VDC 1 channel Out: 1A 30VDC / 0.5A 50VAC
Electrical
Power Supply	DC12V, AC24V, PoE+(802.3at)(Class 4)
Power Consumption	DC12V:6.6W 15.84W(IR on)
	PoE:6.1W 14W(IR on)
Environmental
Operating Conditions	-30° C ~ +60° C (-22° F ~ +140° F) /Less than 95% RH
Storage Conditions	-30° C ~ +60° C (-22° F ~ +140° F) /Less than 95% RH
Ingress Protection	IP67
Vandal Resistance	IK10
Construction
Casing	Metal
Dimensions	Φ159.1mm*117.9mm
Net Weight	0.99Kg (2.18lb)
Gross Weight	1.9Kg (4.19lb)
