Açıklama

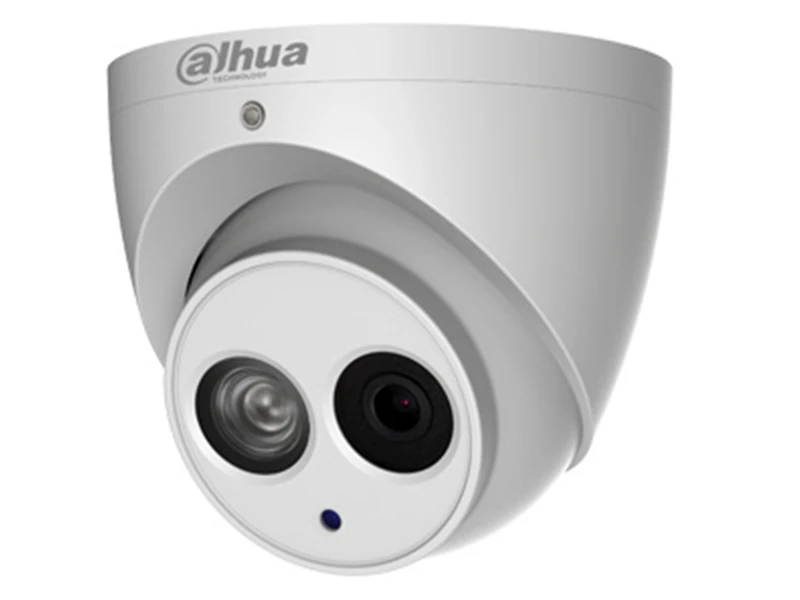

Dahua IPC HDW4220EM AS 0360B IP HD Dome Kamera
Özellikler
- 1/2.8” 2Megapixel progressive scan CMOS
- Support H.264&MJPEG dual codec
- 25/30fps @ 1080P(1920×1080)
- Smart Detection supported
- DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- 2.8mm fixed lens (3.6mm,6mm optional)
- Built-in Mic (only for -AS)
- Max. IR LEDs Length 50m
- Micro SD memory (only for -AS), IP67, PoE
Teknik Özellikler
Camera |
Image Sensor : 1/2.8” 2Megapixel progressive scan CMOS |
Effective Pixels : 1920(H)x1080(V) |
Scanning System : Progressive |
Electronic Shutter Speed : Auto/Manual, 1/3(4)-1/100000s |
Min. Illumination : 0. 01Lux/F2.0 (Color), 0Lux/F2.0(IR on) |
S/N Ratio : More than 50dB |
Video Output : N/A |
Camera Features |
Max. IR LEDs Length : 50m |
Day/Night : Auto(ICR)/Color/B/W |
Backlight Compensation : BLC / HLC / DWDR |
White Balance : Auto/Sunny/Night/Outdoor/Customized |
Gain Control : Auto/Manual |
Noise Reduction : 3D |
Privacy Masking : Up to 4 areas |
Lens |
Focal Length : 2.8mm(3.6mm,6mm optional) |
Max Aperture : F2.0(F2.0/F2.0) |
Focus Control : Manual |
Angle of View : 110°(83°/56°) |
Lens Type : Fixed lens |
Mount Type : Board-in Type |
Video |
Compression : H.264/ MJPEG |
Resolution : 1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480) / CIF(352×288/352×240) |
Frame Rate : Main Stream : 1080P/720P(1 - 25/30fps) |
Sub Stream : D1/CIF(1 - 25/30fps) |
Third Stream : 720P(1 - 13/4fps) |
Bit Rate : H.264: 32K - 10Mbps |
Corridor Mode : Support |
Audio |
Compression : G.711a/ G.711u/ AAC(only for -AS) |
Interface : Built-in Mic(only for -AS) |
Smart Function(Optional) |
Smart detection : Tripwire |
Intrusion |
Abandoned/Missing |
Scene Change |
Audio detect |
Face detect |
Network |
Ethernet : RJ-45 (10/100Base-T) |
Wi-Fi : N/A |
Protocol : IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
Compatibility : ONVIF,PSIA,CGI |
Max. User Access : 20 users |
Smart Phone : iPhone, iPad, Android, Windows Phone |
Auxiliary Interface |
Memory Slot : Micro SD Max 128GB(only for -AS) |
RS485 : N/A |
Alarm : N/A |
PIR Sensor Range : N/A |
General |
Power Supply : DC12V, PoE (802.3af) |
Power Consumption : Max 3.7W |
Working Environment : -30°C-+60°C, Less than 95% RH |
Ingress Protection : IP67 |
Vandal Resistance : N/A |
Dimensions : Φ106mm×94mm |
Weight : 0.47kg(0.65kg with package) |
Dahua IPC HDW4220EM AS 0360B IP HD Dome Kamera Pdf Dosyası519.18 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
Irled : Var
Depolama : Var
Ses : Var
