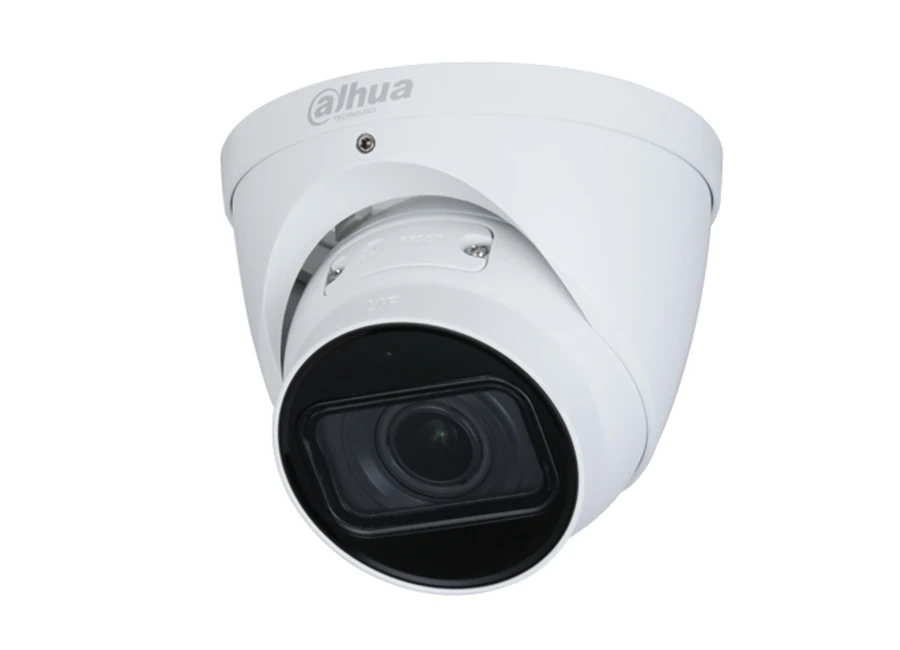

Dahua IPC-HDW5541T-ZE IP Eyeball Kamera

Özellikler

5MP, 1/2.7" CMOS image sensor, low illuminance, high image definition
Outputs max. 5MP (2592 × 1944) @20 fps, 2MP(1920 × 1080) @60 fps
Built-in IR LED, max. IR distance: 40 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human), abandoned object, missing object, loitering detection, people gathering, parking detection, heat map, face detection, face attributes and people counting
Supports max. 256 G Micro SD card, built-in Mic
12V DC/PoE power supply, ePoE network transmission over long distance, easy for installation
IP67 protection

Teknik Özellikler

Model code	IPC-HDW5541T-ZE
Series	WizMind Series
Chip Inch Size	1/2.8 inch
Colour Type	Colour / Monochrome
Resolution	5 MP resolution
Digital (DSP)	Yes
Specialist Type	Infrared
Sensitivity Lux	0.005 lux
Auto Iris	Yes
Direct Drive	Yes
Electrical Specifications	Voltage: 12 V DC, PoE
Electrical Specifications	Power Consumption: < 7.7 W
Motion Activated	Yes
Focal Length mm	2.7 ~ 13.5
Mount Type	Pole, Wall, Ceiling
Wide Dynamic Range	Yes
Picture Elements HxV	2592 x 1944
Network Properties	Image Frame Rate: 5MP @ 20 fps, 2MP @ 60 fps
	Inclusion DVR/ Web Server: 1
	Interface: RJ-45 (10/100 Base-T)
	Network Protocols: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	1/3 s ~ 1/100,000 s
S/ N (Signal/ Noise) Ratio dB	> 56
Signal Mode	PAL, NTSC
Compression Type	H.265; H.264; H.264H; H.264B; MJPEG
Physical Specifications	Dimensions mm: 122 x 108
Physical Specifications	Weight g: 740
Environmental Specifications	Protection: IP67
	Operating Temperature oC: -30 ~ +60 C (-22 ~ 140 F)
	Operating Humidity %: < 95
System Requirements	Web Browser: IE: IE8 and later; Chrome; Firefox; Safari: Safari 12 and later
HD	Yes
Additional info	5MP, 1/2.7" CMOS image sensor, low illuminance, high image definition
	Outputs max. 5MP (2592 × 1944) @20 fps; 2MP(1920 × 1080) @60 fps
	Built-in IR LED, max. IR distance: 40 m
	ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
	Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
	Intelligent detection: Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human), abandoned object, missing object, loitering detection, people gathering, parking detection, heat map, face detection, face attributes and people counting
	Supports max. 256 G Micro SD card, built-in Mic
	12V DC/PoE power supply, ePoE network transmission over long distance, easy for installation
	IP67 protection
