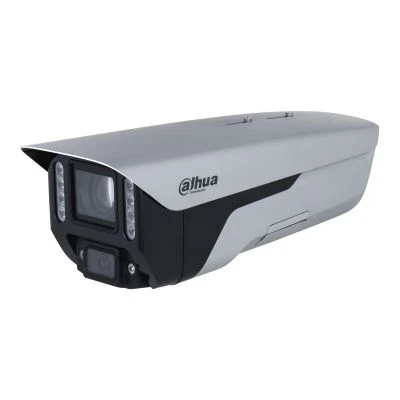

Dahua IPC-MFW7449Y-Z7-T44 IP Bullet Kamera

Özellikler

2 lenses and 2 channels are integrated into the design.
Adopts advanced technologies such as Hyper DoF, Illumination by Area, to achieve full coverage of different speed targets with a larger DoF distance under low illumination.
Flexible remote debugging through the Dual-micro PTZ.
Dual channels: 4-MP 1/1.8" CMOS image sensors, low luminance, and high definition image.
Outputs max. 4 MP (2688 × 1520)@25/30fps.
Built-in efficient illuminator of dual light fusion, and the max. illumination distance is 150 m.
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Multiple intelligent resources switchable.
Channel 1: IVS, Face recognition, Face detection and Video metadata,
Channel 2: IVS, Face recognition, Face detection, Video metadata, Crowd distribution map and People counting.
Intelligent functions of Channel 1 and Channel 2 can be enabled at the same time.
Hyper DoF technology: DoF and iris of the camera can be adjusted separately. With the largest iris, the camera can display the image of large DoF.
Time-Division Exposure that when the device is taking multiple snapshots of more than one targets, the quality of the snapshots will not be affected. It can also be used to adjust the brightness, speed and more of targets, to produce high quality snapshots.
Alarm: 7 in, 3 out; audio: 2 in, 1 out; 485; BNC; supports max. 256 G Micro SD card.
12 VDC power supply, easy for installation.
IP67 protection.

Teknik Özellikler

Camera
Image Sensor	Channel 1: 1/1.8" CMOS
	Channel 2: 1/1.8" CMOS
Max. Resolution	2688 (H) × 1520 (V)
ROM	8 GB
RAM	4 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Min. Illumination	Channel 1:
	0.0004 lux@F1.2(Color,30IRE)
	0.0001 lux@F1.2(B/W,30IRE)
	0 lux (Illuminator on)
	Channel 2:
	0.0005 lux@F1.6(Color,30IRE)
	0.0002 lux@F1.6(B/W,30IRE)
	0 lux (Illuminator on)
S/N Ratio	﹥ 56 dB
Illumination Distance	Channel 1: 150 m (492.13 ft) (IR); 80 m (262.47 ft) (warm light)
	Channel 2: 120 m (393.70 ft) (IR); 80 m (262.47 ft) (warm light)
Illuminator On/Off Control	Auto; Manual
Illuminator Number	Channel 1: 8 (illuminator with dual light fusion)
	Channel 2: 2 (illuminator with dual light fusion)
Pan/Tilt/Rotation Range	Channel 1: Tilt: ±5°; Pan:±13°
	Channel 2: Tilt: ±15°
Lens
Lens Type	Motorized vari-focal
Lens Mount	Module
Focal Length	Channel 1: 8–56 mm
	Channel 2: 8–32 mm
Max. Aperture	Channel 1: F1.2
	Channel 2: F1.6
Field of View	Channel 1: H: 41°–9°; V: 23°–5°; D: 47°–11°
	Channel 2: H: 42°–15°; V: 23°–9°; D: 49°–17°
Iris Control	Channel 1: Auto
	Channel 2: Auto
Iris Control Type	Channel 1: DC-Iris
	Channel 2: DC-Iris
Close Focus Distance	Channel 1: 1 m–2 m (3.28 ft–6.56 ft)
	Channel 2: 3 m–5.5 m (9.84 ft–18.04 ft)
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	Channel1:	151 m (495.41 ft)	60 m(196.85 ft)	30 m(99.41 ft)	15 m(49.54 ft)
	W T	640 m (255.91 ft)	256 m( 102.36 ft)	128 m(51.18 ft）	64 m(25.59 ft)
	Channel2: W	147 m (482.28 ft)	59 m(193.57 ft)	29 m(95.14 ft)	14 m(45.93 ft)
	T	395 m (1295.93 ft)	158 m(518.37 ft)	79 m(259.19 ft）	39 m(12.95 ft)
Smart Event
IVS	Abandoned object; missing object
Intelligence
IVS (Perimeter Protection)	Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection
Face Detection	Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
Face Recognition	Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (recognition priority and optimization snapshot); face angle filter; optimization time setting.
	Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 100,000 face pictures.
People Counting	Tripwire people counting and people counting in area, generating and exporting report (day/month/year); queue management, generating and exporting report (day/month); 4 rules can be set for tripwire, people counting in area and queue management
Crowd Distribution Map	Crowd distribution map; global people counting; people counting in area
Video Metadata	Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.
	Motor vehicle attributes: license plate, vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling.
	Non-motor vehicle attributes: type, color, number of people, top type and color, hat.
	Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard.
Smart Search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec	Smart H.265+;Smart H.264+
Video Frame Rate	Channel 1:
	Main stream: 2688 × 1520@(1-25/30 fps)
	sub stream: 1920 × 1080@(1-25/30 fps)
	third stream: 1920 × 1080@(1-25/30 fps)
	Channel 2:
	Main stream: 2688 × 1520@(1-25/30 fps)
	sub stream: 1920 × 1080@(1-25/30 fps)
	third stream: 1920 × 1080@(1-25/30 fps)
	*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability	3 streams
Resolution	Channel 1/ Channel 2: 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720)
Bit Rate Control	CBR/VBR
Video Bit Rate	Channel 1:
	H.264: 32 kbps–15872 kbps
	H.265: 12 kbps–9472 kbps
	Channel 2:
	H.264: 32 kbps–15872 kbps
	H.265: 12 kbps–9472 kbps
Day/Night	Auto(ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	140 dB
Scene Self-adaptation (SSA)	Yes
White Balance	Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control	Auto;Manual
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Image Stabilization	Electronic Image Stabilization (EIS)
Smart Illumination	Yes
Defog	Yes
Image Rotation	°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
Mirror	Yes
Privacy Masking	4 areas
Time-Division Exposure	Yes
Audio
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723;
Alarm
Alarm Event	No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; defocus detection; external alarm; face detection; face recognition; video metadata; crowd density
Network
Network Port	RJ-45 (10/100/1000 Base-T)
SDK and API	Yes
Network Protocol	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Cyber Security	Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification
Interoperability	ONVIF (Profile S/Profile G); CGI; P2P
User/Host	20
Storage	FTP; SFTP; Micro SD card (support max. 256 GB); NAS
Browser	With plug-in:
	IE: IE9 and later
	Chrome: Chrome 86 and later
	Firefox: Firefox 86 and later
	Without plug-in:
	Edge
	Chrome: Chrome 86 and later
	Firefox: Firefox 86 and later
Management Software	Smart PSS; DSS; DMSS
Mobile Client	iOS; Android
Function
Defog (Glass Heating)	Yes
Certification
Certifications	CE-LVD: EN62368-1;
	CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
	FCC: 47 CFR FCC Part 15, Subpart B
Port
RS-485	1 (baud rate range:1200 bps–115200 bps)
Audio Input	2 channels (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	7 channels in: 5mA 3V–5V DC
Alarm Output	3 channels out: 1,000mA 30V DC/500mA 50V AC
Power
Power Supply	12 VDC, 4 A
Power Consumption	Basic: 11.5 W (12 VDC)
	Max. (ICR Switch+IR intensity): 36.1 W (12 VDC)
Environment
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity	≤95%
Protection	IP67
Structure
Casing Material	Metal + plastic
Product Dimensions	483.4 mm × 197.7 mm × 178.5 mm (19.03" × 7.78" × 7.03") (L × W × H)
Net Weight	6.0 kg (13.23 lb)
Gross Weight	8.2 kg (18.08 lb)
