Açıklama

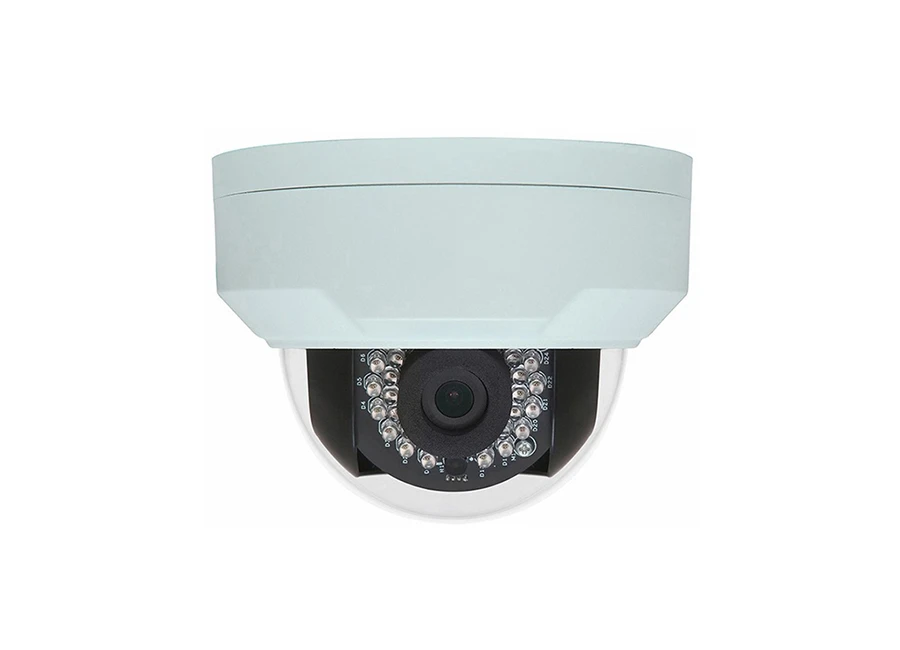

DCODE Exclusive DEC424ER3 DVPF28 IP HD Dome Kamera

1/3", 4 megapixel, progressive scan CMOS
Shutter Auto/Manual, 1/6~1/8000 s
2.8 mm@F2.0 Angle of view
Day/Night
IR-cut filter with auto switch (ICR)
Colour: 0.02 Lux (F2.0, AGC ON) 0 Lux with IR
S/N >55 dB
WDR 120 dB
Video Max. Resolution 2592 × 1520
H.265, H.264, MJPEG
Frame Rate 4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps 3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps
9:16 Corridor Mode
ROI
Video Streaming Triple
8 OSDs
Privacy Mask 4 areas
Audio Compression G.711
Two-way audio
Edge Storage Micro SD, up to 128 GB
L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, Qos, NTP, FTP, HTTP, SNMP, SIP
ONVIF, API
Audio I/O Input: impedance 35 kΩ; amplitude 2 V [p-p] Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O 1/ 1
Network 10M/100M Base-TX Ethernet
12 V DC, or PoE (IEEE802.3 af)
Max 5.5W
Φ108.5 x 81 mm (Ø4.28” x 3.2”)
0.45 kg (0.99 lb)
-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Vandal Resistant IK10
IP66
