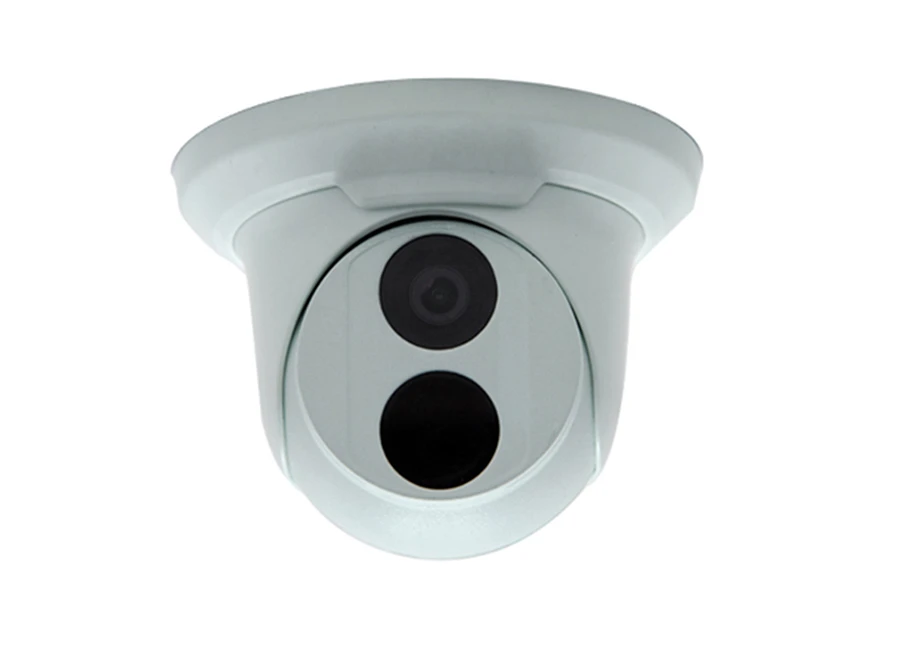

DCODE Exclusive DEC4612ER3 PF40 C IP HD Turret Kamera
Özellikler
- Day/night functionality
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- Smart IR, up to 30 m (98 ft) IR distance
- 3D DNR (Digital Noise Reduction)
- H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- 9:16 corridor mode
- ONVIF Conformance
- Wide temperature range: -35°C to 60°C (-31°F to 140°F)
- Wide voltage range of ±25%
- 4 KV surge protection designed for network interface
- IP67
Teknik Özellikler
Camera | |
Sensor | 1/2.7", 2megapixel, progressive scan, CMOS |
Lens | 4.0mm@F1.8 |
Angle of view(H) | 84.8° |
Shutter | Auto/Manual, 1/6~1/100000 s |
Min. Illumination | Colour: 0.02 Lux (F1.8, AGC ON) |
0 Lux with IR | |
IR Range | Up to 30m (98 ft) IR range |
Day/Night | IR-cut filter with auto switch (ICR) |
S/N | >52dB |
WDR | Supported |
Noise Reduction | 2D/3D |
Video | |
Max. Resolution | 1920×1080 |
Video Compression | H.265, H.264, MJPEG |
Frame Rate | 1080P (1920×1080): Max. 30 fps; 720P (1280×720): Max. 30 fps; D1 (720×576): Max. 8 fps |
Video Streaming | Triple |
9:16 Corridor Format | Supported |
ROI | Supported |
Evaluative Metering | Supported |
OSD | Up to 8 OSDs |
Privacy Mask | Up to 8 areas |
Smart | |
Behavior Detection | Intrusion, crossing line, motion detection |
Intelligent Identification | Face detection, Defcous, Scene Change |
Statistical Analysis | People counting |
Network | |
Protocols | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x |
Compatible Integration | ONVIF,API |
Interface | |
Network | 10M/100M Base-TX Ethernet |
General | |
Power | 12 V DC, or PoE (IEEE802.3 af) |
Power consumption: Max 5.5W | |
Dimensions (Ø x H) | Φ126 x 94 mm (Ø5.0” x 3.7”) |
Weight | 0.33 kg (0.73lb) |
Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing) |
Ingress Protection | IP67 |
Teknik Kısa
Depolama : Var
Çözünürlük : 2MP (1080P)
Irled : Var
