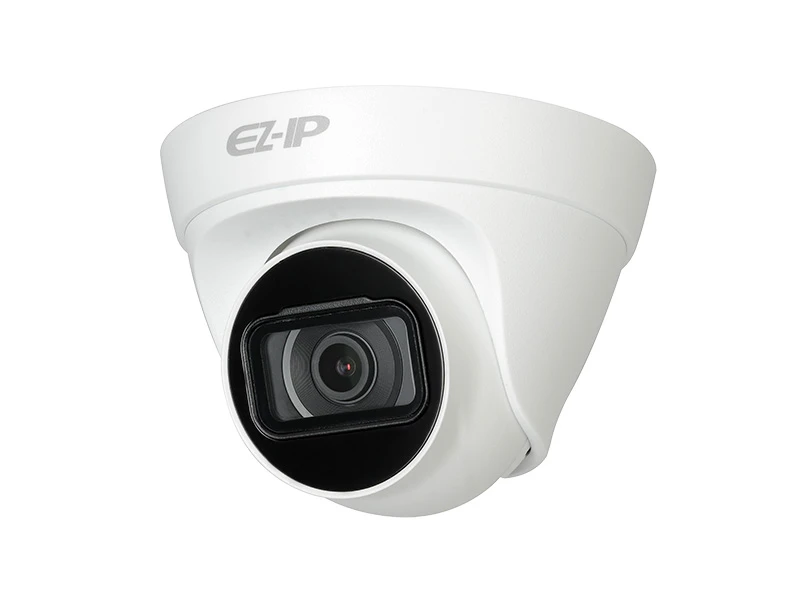

EZ IP IPC T1B40 IR Turret IP Kamera
Özellikler
Teknik Özellikler
Camera | |||||
Image Sensor | 1/3” 4Megapixel progresive CMOS | ||||
Effective Pixels | 2560(H)x1440(V) | ||||
RAM/ROM | 256MB/16MB | ||||
Scanning System | Progressive | ||||
Minimum Illumination | 0.09Lux/F2.0(Color,1/3s,30IRE) 0.5Lux/F2.0(Color,1/30s,30IRE) 0Lux/F2.0(IR on) | ||||
S/N Ratio | More than 50dB | ||||
IR Distance | Distance up to 30m(98ft) | ||||
IR On/Off Control | Auto/ Manual | ||||
IR LEDs | 1 | ||||
Lens | |||||
Lens Type | Fixed | ||||
Mount Type | Board-in | ||||
Focal Length | 2.8 mm (3.6 mm optional) | ||||
Max. Aperture | F2.0/F2.0 | ||||
Angle of View | H:101°/80°, V:54°/44° | ||||
Focus Control | Fixed | ||||
Close Focus Distance | 0.8m(2.63ft) | ||||
DORI Distance | Lens | Detect | Observe | Recognize | Identify |
2.8 mm | 56m
(184ft) | 22.4m
(73.5ft) | 11.2m
(36.7ft) | 5.6m
(18.4ft) | |
3.6 mm | 80m
(262.5ft) | 32m
(105ft) | 16m
(52.5ft) | 8m
(26.3ft) | |
PTZ | |||||
Pan/Tilt Range | Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360° | ||||
Intelligence | |||||
Event Trigger | Motion detection, Video tampering , Network disconnection , Scene change,
IP address conflict, Illegal Access,Storage anomaly | ||||
Video | |||||
Compression | H.265/H.264/H.264B/MJPEG(Sub Stream) | ||||
Smart Codec | Support H.265+/H.264+ | ||||
Streaming Capability | 2 Streams | ||||
Resolution | 4M(2560x1440)/3M(2304×1296)/1080P(1920×1080)/720P(1280×720)/VGA(640×480)/D1
(704×576/704×480)/CIF(352×288/352×240) | ||||
Frame Rate | Main Stream: 4M(1 ~ 20fps) | ||||
Sub Stream: D1(1 ~ 25/30fps) | |||||
Bit Rate Control | CBR/VBR | ||||
Bit Rate | H.264: 32K~6144K H.265: 12K~ 6144K | ||||
Day/Night | Auto(ICR) / Color / B/W | ||||
BLC Mode | BLC / HLC / DWDR | ||||
White Balance | Auto/Natural/Street Lamp/Outdoor/Manual | ||||
Gain Control | Auto/Manual | ||||
Noise Reduction | 3D DNR | ||||
Motion Detetion | Off / On (4 Zone, Rectangle) | ||||
Region of Interest | Off / On (4 Zone) | ||||
Electronic Image Stabilization (EIS) | N/A | ||||
Smart IR | Support | ||||
Digital Zoom | 16x | ||||
Flip | °/90°/180°/270° | ||||
Mirror | Off / On | ||||
Privacy Masking | Off / On (4 Area, Rectangle) | ||||
Audio | |||||
Compression | N/A | ||||
Network | |||||
Ethernet | RJ-45 (10/100Base-T) | ||||
Protocol | |||||
Interoperability | ONVIF Profile S&G, API | ||||
Streaming Method | Unicast / Multicast | ||||
Max. User Access | 10 Users/20 Users | ||||
Edge Storage | NAS(Network Attached Storage) | ||||
Local PC for instant recording | |||||
Web Viewer | IE, Chrome, Firefox, Safari | ||||
Management Software | Smart PSS, DSS,DMSS | ||||
Smart Phone | IOS, Android | ||||
Certifications | |||||
Certifications | CE: (EN 60950:2000) | ||||
FCC: FCC Part 15 Subpart B | |||||
Interface | |||||
Video Interface | N/A | ||||
Audio Interface | N/A | ||||
RS485 | N/A | ||||
Alarm | N/A | ||||
Electrical | |||||
Power Supply | DC12V, PoE (802.3af)(Class 0) | ||||
Power Consumption | <4.8w td=""> | ||||
Environmental | |||||
Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH | ||||
Strorage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH | ||||
Ingress Protection | IP67 | ||||
Vandal Resistance | N/A | ||||
Construction | |||||
Casing | Metal+Plastic | ||||
Dimensions | Φ109mm×85.5mm(4.29''x3.36'') | ||||
Net Weight | 0.248Kg(0.55b) | ||||
Gross Weight | 0.37Kg(0.82lb) |
Teknik Kısa
Depolama : Var
Çözünürlük : 4MP
Irled : Var
