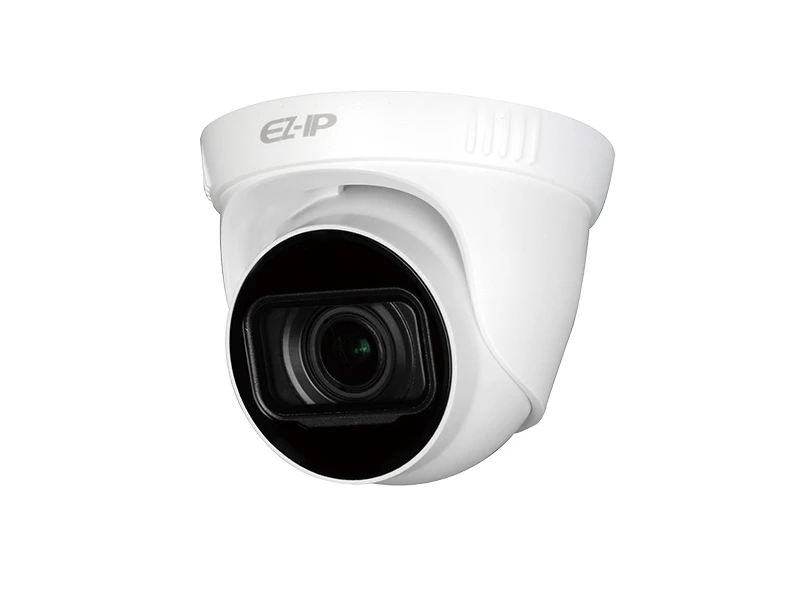

EZ IP IPC T2B40 ZS IR Turret IP Kamera

Özellikler

1/3” 4Megapixel progressive CMOS
H.265+ & H.265 dual-stream encoding
20fps@4M(2560×1440) &25/30fps@3M(2304×1296)
DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
2.8~12mm varifocal lens
Max IR LEDs Length 40m
Micro SD card memory, IP67, PoE

Teknik Özellikler

Camera
Image Sensor	1/3” 4Megapixel progresive CMOS
Effective Pixels	2560(H)x1440(V)
RAM/ROM	256MB/16MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3~1/100000s
Minimum Illumination	0.05Lux/F1.8( Color,1/3s,30IRE)
	0.3Lux/F1.8( Color,1/30s,30IRE)
	0Lux/F1.8(IR on)
S/N Ratio	More than 50dB
IR Distance	Distance up to 40m(131ft)
IR On/Off Control	Auto/ Manual
IR LEDs	2
Lens
Lens Type	Motorized
Mount Type	Board-in
Focal Length	2.8mm~12mm
Max. Aperture	F1.8
Angle of View	H:97°~31°, V:54°~17°
Focus Control	Fixed
Close Focus Distance	0.2m(0.66ft)
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	W	66m (216.5ft)	26.4m (86.6ft)	13.2m (43.3ft)	6.6m (21.7ft)
	T	200m (656.2ft)	80m (262.5ft)	40m (131.2ft)	20m (65.6ft)
PTZ
Pan/Tilt Range	Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
Intelligence
Event Trigger	Motion detection, Video tampering , Network disconnection , Scene change, IP address conflict, Illegal Access,Storage anomaly
Video
Compression	H.265/H.264/H.264B/MJPEG(Sub Stream)
Smart Codec	Support H.265+/H.264+
Streaming Capability	2 Streams
Resolution	4M(2560x1440)/3M(2304×1296)/1080P(1920×1080)/720P(1280×720)/VGA(640×480)/ D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate	Main Stream: 4M(1 ~ 20fps) Sub Stream: D1(1 ~ 25/30fps)
Bit Rate Control	CBR/VBR
Bit Rate	H.264: 32K~6144K H.265: 12K~ 6144K
Day/Night	Auto(ICR) / Color / B/W
BLC Mode	BLC / HLC / DWDR
White Balance	Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control	Auto/Manual
Noise Reduction	3D DNR
Motion Detetion	Off / On (4 Zone, Rectangle)
Region of Interest	Off / On (4 Zone)
Electronic Image Stabilization (EIS)	N/A
Smart IR	Support
Digital Zoom	16x
Flip	°/90°/180°/270°
Mirror	Off / On
Privacy Masking	Off / On (4 Area, Rectangle)
Audio
Compression	N/A
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP; FTP;DHCP;DNS;DDNS;IPV4/V6;QoS;UPnP; NTP;Bonjour;Multicast;ICMP;IGMP;TLS;SSH
Interoperability	ONVIF Profile S&G, API
Streaming Method	Unicast / Multicast
Max. User Access	10 Users/20 Users
Edge Storage	NAS(Network Attached Storage) Local PC for instant recording Micro SD Card 128GB
Web Viewer	IE, Chrome, Firefox, Safari
Management Software	Smart PSS, DSS,DMSS
Smart Phone	IOS, Android
Certifications
Certifications	CE: (EN 60950:2000)
	FCC: FCC Part 15 Subpart B
Interface
Video Interface	N/A
Audio Interface	N/A
RS485	N/A
Alarm	N/A
Electrical
Power Supply	DC12V, PoE (802.3af)(Class 0)
Power Consumption	DC12V: 1.8W, 5.3W(IR On) PoE: 2.2W, 6.3W(IR On)
Environmental
Operating Conditions	-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions	-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection	IP67
Vandal Resistance	N/A
Construction
Casing	Metal+Plastic
Dimensions	Φ122mm×100mm(4.8''x3.94'')
Net Weight	0.397Kg(0.875lb)
Gross Weight	0.576Kg(1.27lb)
