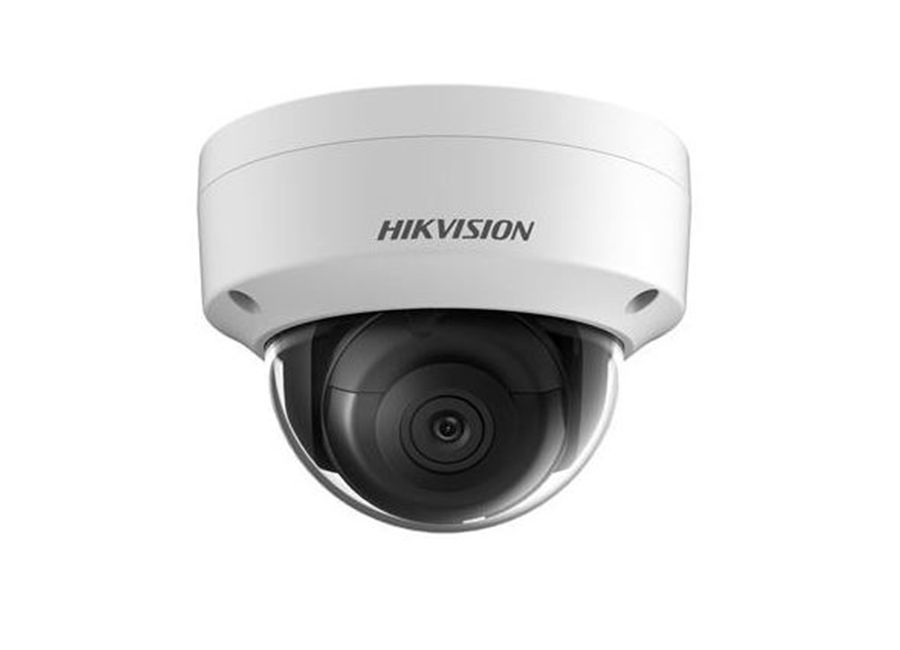

Hikvision DS 2CD2165G0 I IR IP Dome Kamera
Özellikler
- Up to 6 megapixel high resolution
- Max. 3072 × 2048 @ 20fps
- 2.8 mm/4 mm/6 mm fixed lens
- H.265, H.265+, H.264+, H.264
- 120dB WDR
- Powered by Darkfighter
- 12 VDC & PoE (802.3af, class 3)
- IR range: Up to 30 m
- Support on-board storage, up to 128 GB
- IP67,IK10
- 3-axis adjustment
- Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON)
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON) |
| Shutter time | 1/3 s to 1/100,000 s |
| Slow shutter | Support |
| Lens | 2.8 mm, horizontal FOV: 99°, vertical FOV: 61°, diagonal FOV: 128° |
| 4 mm, horizontal FOV: 80°, vertical FOV: 51°, diagonal FOV: 101° | |
| 6 mm, horizontal FOV: 60°, vertical FOV: 38° | |
| Lens Mount | M12 |
| Adjustment Range | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | 120 dB |
| Digital noise reduction | 3D DNR |
| Focus | Fixed |
| Compression Standard | |
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| Video bit rate | 32Kbps~16Mbps |
| Image | |
| Max. Image Resolution | 3072 x 2048 |
| Frame Rate | 50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| 60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) | |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) |
| 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) | |
| Third Stream | 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) |
| 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) | |
| Image Enhancement | BLC/3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
| ROI | Support 1 fixed region for main stream and sub stream separately |
| Day/Night Switch | Day/Night/Auto/Schedule/Triggered by Alarm In(-S) |
| Network | |
| Network Storage | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| System Compatibility | ONVIF (Profile S, Profile G),ISAPI |
| Interface | |
| Audio | with -S model：1 input (line in/mic.in), 1 output (line out), terminal block, mono sound |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button | Yes |
| Smart Feature-set | |
| Behavior Analysis | Line crossing detection, intrusion detection, unattended baggage detection, object removal detection |
| Line Crossing Detection | Cross a pre-defined virtual line |
| Intrusion Detection | Enter and loiter in a pre-defined virtual region |
| Region Entrance | Enter a pre-defined virtual region from the outside place |
| Region Exiting | Exit from a pre-defined virtual region |
| Exception Detections | Scene change detection |
| General | |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | |
| Power Supply | 12 VDC ± 25%, 5.5 mm coaxial power plug ,PoE (802.3af, class 3) |
| Power Consumption | 12 VDC, 0.5 A, max: 6 W |
| PoE: (802.3af, 36 VDC to 57 VDC), 0.2 A to 0.1 A, max: 7.5 W | |
| Weather Proof | IP67 |
| IR Range | Up to 30m |
| Dimensions | Camera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″) |
| With package: 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″) | |
| Weight | Camera: 500 g (1.1 lb.) |
| With package: 800 g (1.8 lb.) | |
Hikvision DS 2CD2165G0 I IR IP Dome Kamera Pdf Dosyası1.1 MB
Teknik Kısa
Depolama : Var
Çözünürlük : 6MP
Irled : Var
