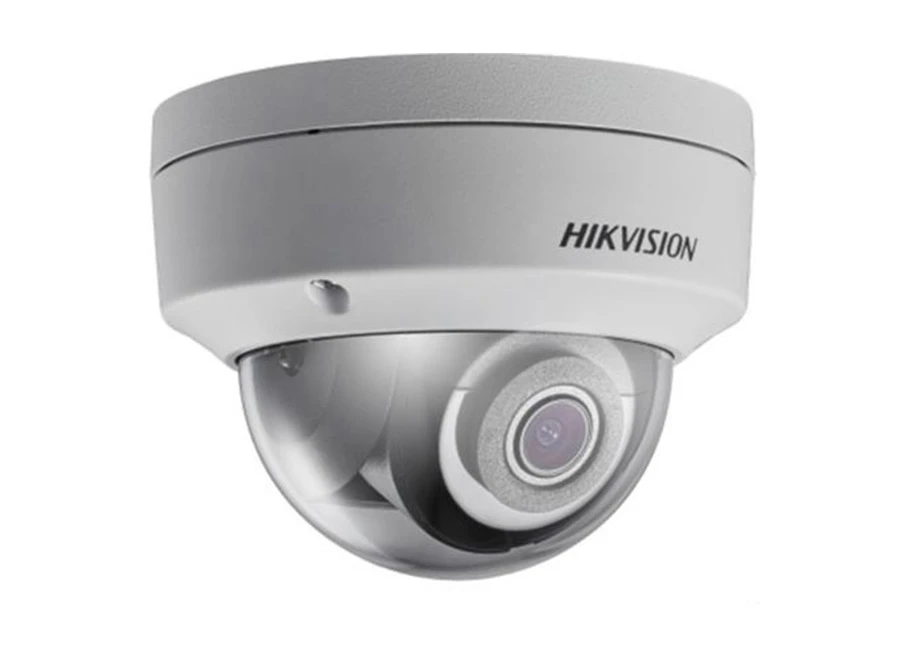

Hikvision DS 2CD3145G0 IS IP Dome Kamera
Özellikler
- 1/2.5" Progressive Scan CMOS
- 2688 × 1520@30 fps
- 2.8 mm/4 mm/6 mm fixed lens
- Powered by Darkfighter
- IR range: up to 40 m
- H.265, H.265+, H.264+, H.264
- 120dB WDR
- BLC/3D DNR/ROI/HLC
- IR range: up to 40 m
- Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
- IP67
- Color: 0.008 lux @(F1.2, AGC ON), 0 lux with IR Color: 0.014 lux @(F1.6, AGC ON), 0 lux with IR
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.5" Progressive Scan CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color 0.008 lux @(F1.2, AGC ON), 0 lux with IR |
| Color 0.014 lux @(F1.6, AGC ON), 0 lux with IR | |
| Shutter time | 1/3 s to 1/100,000 s |
| Slow shutter | yes |
| Lens | 2.8 mm, horizontal FOV 109°, vertical FOV 60°, diagonal FOV 131° |
| 4 mm, horizontal FOV 88°, vertical FOV 46°, diagonal FOV 105° | |
| 6 mm, horizontal FOV 53°, vertical FOV 30°, diagonal FOV 61° | |
| Lens Mount | M12 |
| Adjustment Range | Pan 0° to 355°, tilt 0° to 75°, rotate 0° to 355° |
| Day& Night | IR Cut Filter |
| Wide Dynamic Range | 120 dB |
| Digital noise reduction | 3D DNR |
| Focus | Fixed |
| Compression Standard | |
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| Video bit rate | 32Kbps~16Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio bit rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Dual Stream | Yes |
| Triple Streams | Yes |
| Image | |
| Max. Image Resolution | 2688 × 1520 |
| Frame Rate | 50Hz 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080) |
| 60Hz 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080) | |
| Sub Stream | 50Hz 25 fps (640 × 480, 640 × 360, 320 × 240) |
| 60Hz 30 fps (640 × 480, 640 × 360, 320 × 240) | |
| Third Stream | 50Hz 25 fps (1280 × 720, 640 × 360, 352 × 288) |
| 60Hz 30 fps (1280 × 720, 640 × 360, 352 × 240) | |
| Image Enhancement | BLC/3D DNR/HLC |
| Image Settings | Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web browser and client software |
| Automatic gain control | Yes |
| BLC | Support |
| HLC | Yes |
| 3D DNR | Yes |
| ROI | Yes |
| Day/Night Switch | Day/Night/Auto/Schedule/Triggered by alarm in |
| Network | |
| Network Storage | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| General Function | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy |
| mask, Watermark, IP address filtering | |
| System Compatibility | ONVIF (Profile S, Profile G),ISAPI |
| Intelligent | |
| Behavior analysis | Line crossing detection, intrusion detection, unattended baggage detection, object removal detection |
| Interface | |
| Audio | with -S model：1 input (line in/mic.in), 1 output (line out), terminal block, mono sound |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Alarm | 1 input, 1 output (max. 12 VDC, 30 mA), terminal block |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button | Yes |
| Audio | |
| Environment Noise Filtering | Support |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz |
| Smart Feature-set | |
| Behavior Analysis | Line crossing detection, intrusion detection, unattended baggage detection, object removal detection |
| Line Crossing Detection | Cross a pre-defined virtual line |
| Intrusion Detection | Enter and loiter in a pre-defined virtual region |
| Unattended Baggage | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
| Object Removal | Objects removed from the pre-defined region, such as the exhibits on display. |
| Exception Detections | Scene change detection |
| Recognition | Face Detection |
| General | |
| IR Range | Up to 40 m |
| Operation Condition | -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) |
| Operating Conditions | -30 °C to 50 °C (-22 °F to 122 °F), humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, 5.5 mm coaxial power plug ,PoE (802.3af, class 3) |
| Power Consumption | 12 VDC, 0.5 A, max. 5.5 W |
| PoE (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7 W | |
| Weather Proof | IP67 |
| IR Range | Up to 40m |
| Dimensions | Camera Φ 111 × 82.4 mm (Φ 4.4" × 3.2") |
| Package 134 × 134 × 108 mm (5.3" × 5.3" × 4.3") | |
| Weight | Camera 500 g (1.1 lb.) |
Teknik Kısa
Çözünürlük :
4MP
Ses :
Var
Depolama :
Var
Irled :
Var
