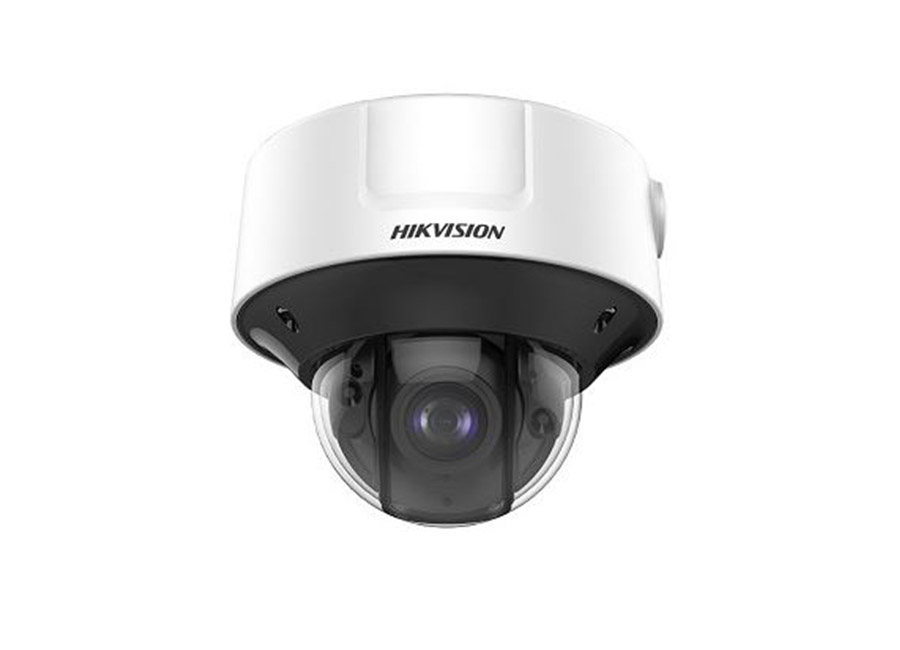

Hikvision DS 2CD5526G0 IZHSY IR IP Dome Kamera

Özellikler

Teknik Özellikler

1/1.8” Progressive Scan CMOS
1920 × 1080 @ 60fps
2.8 to 12 mm motor-driven lens
Color: 0.002 Lux @ (F1.2, AGC ON)
H.265, H.265+, H.264, H.264+
140dB WDR
3D DNR
2.8 to 12 mm lens: IR range up to 30 m
Five streams and up to five custom streams
6 behavior analyses, 3 exception detection, and face detection
Built-in microSD/SDHC/SDXC card slot, up to 256 GB
Alarm I/O
IP67, IK10
Anti-IR reflection
Anti-Corrosion: NEMA 4X

Camera
Image Sensor	1/1.8" Progressive Scan CMOS
Signal System	PAL/NTSC
Min. Illumination	Color: 0.002 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter time	1 s to 1/100,000 s
Slow shutter	Yes
Lens	2.8 to 12 mm, horizontal FOV 103.3° to 38.6°, vertical FOV 54.2° to 21.9°, diagonal FOV 124.2° to 44.3°
Lens Mount	Integrated
Adjustment Range	Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Day& Night	IR Cut Filter
Wide Dynamic Range	140dB
Digital noise reduction	3D DNR
Focus	Auto, semi-auto, manual
Compression Standard
Video Compression	H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile	Baseline Profile/Main Profile/High Profile
Video bit rate	32Kbps~16Mbps
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Dual Stream	Yes
Triple Streams	Yes
Max. Image Resolution	1920 x 1080
Frame Rate	50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720)
Frame Rate	60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream	50Hz: 25fps (704 × 576, 640 × 480)
Sub Stream	60Hz: 30fps (704 × 480, 640 × 480)
Third Stream	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480)
Third Stream	60Hz: 30fps (1920 × 1080, 1280 × 960,1280 × 720, 704 × 480, 640 × 480)
Image Enhancement	BLC, HLC, Defog, EIS, 3D DNR, Lens Distortion Correction
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Target Cropping	Yes
ROI	4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic face tracking
Picture Overlay	LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Day/Night Switch	Auto/Schedule/Day/Night/Triggered by Alarm In
Network
Network Storage	Support microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function	One-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter
System Compatibility	ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
Intelligent
Behavior analysis	Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Interface
Communication Interface	1 RJ45 10M/100M/1000M Ethernet port
Audio	1-ch 3.5 mm input (line in), 1-ch 3.5mm output, mono
Alarm	1-ch input, 1-ch output (up to 12 VDC 1A or 10 VAC 500 mA)
Alarm Input	1
Alarm Output	1
Video Output	1Vp-p composite output (75 Ω/CVBS)
On-board storage	Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Reset Button	Yes
Audio
Environment Noise Filtering	Support
Audio Sampling Rate	8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Smart Feature-set
Line Crossing Detection	Cross a pre-defined virtual line
Intrusion Detection	Enter and loiter in a pre-defined virtual region
Region Entrance	Enter a pre-defined virtual region from the outside place
Region Exiting	Exit from a pre-defined virtual region
Unattended Baggage	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal	Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections	Scene change detection, defocus detection
Recognition	Face Detection
Statistics	Counting which calculates the number of targets entering and exiting a configured area
General
IR Range	30m
Operation Condition	-IZSY: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
	-IZHSY: -40 °C to 60 °C (-40 °F to 140 °F), humidity 95% or less (non-condensing)
Power Supply	Recommended DC input 12 V, voltage range of 10 to 48 VDC allowed; three-core terminal block,PoE (802.3at, class 4)
Power Consumption	-IZSY:
	With extra load: 12 VDC, 1.1 A, max. 12 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A, class 4
	Without extra load: 12 VDC, 0.95 A, max. 10 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A, class 4
	-IZHSY:
	With extra load: 12 VDC, 1.4 A, max. 17 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4
	Without extra load: 12 VDC, 1.2 A, max. 15 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4
	“with extra load” means that an extra device is connected to and powered by the camera.
Impact Protection	IK10
Weather Proof	IP67
Dimensions	Camera: Φ162 × 140 mm (Φ6.4″ × 5.5″)
Dimensions	With package: 251 × 215 × 189 mm (9.9″ × 8.5″ × 7.4″)
Weight	Camera: 1500 g (3.31 lb.)
Weight	With package: 1950 g (4.30 lb.)
