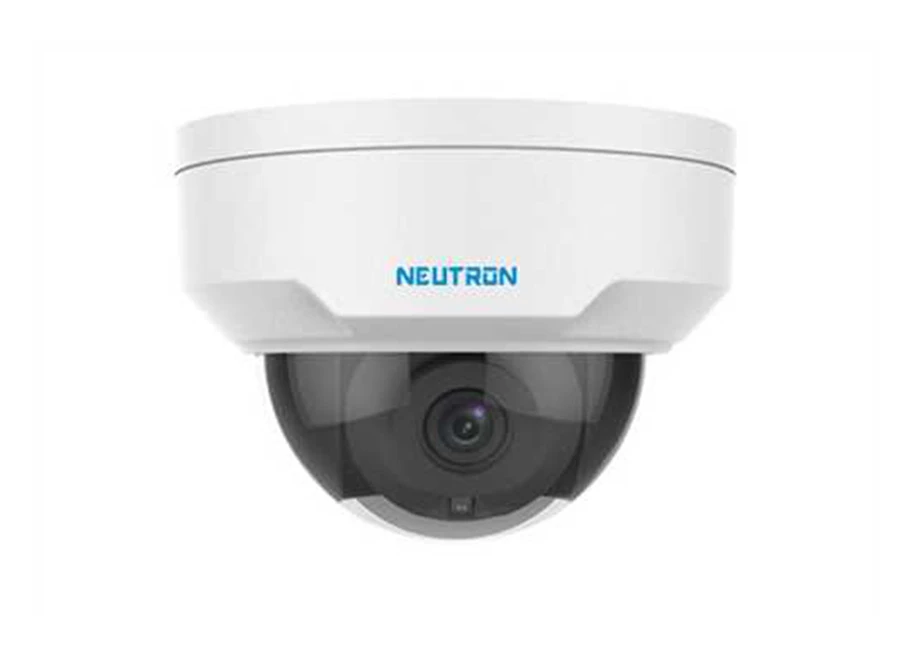

| | IPC322ER3-DUVPF28-C | IPC322ER3-DUVPF40-C |
| Camera |
| Sensor | 1/2.8", progressive scan ,2.0 megapixel, CMOS |
| Lens | 2.8 mm@F1.6 | 4.0 mm@F1.6 |
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) |
| 2.8mm | 45 | 18 | 9 | 4.5 |
| 4mm | 64.3 | 25.7 | 12.9 | 6.4 |
| Angle of View (H) | 107.8° | 82.0° |
| Angle of View (V) | 56.7° | 41.4° |
| Angle of View (O) | 140.2° | 100.9° |
| Adjustment angle | Pan: 0°~360° | Tilt: 0°~75° | Rotate: 0°~360° |
| Shutter | Auto/Manual, 1~1/100000 s |
| Minimum Illumination | Colour: 0.001 Lux (F1.6, AGC ON) |
| | 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| S/N | >52 dB |
| IR Range | Up to 30m (98 ft) IR range |
| Defog | Digital Defog |
| WDR | 120dB |
| Video |
| Video Compression | Ultra 265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Frame Rate | Main Stream:2MP (1920×1080): Max. 30 fps; |
| Sub Stream:2MP (1920×1080): Max. 30 fps; |
| Third Stream:D1 (720×576): Max. 30 fps |
| HLC | Supported |
| BLC | Supported |
| 9:16 Corridor Mode | Supported |
| OSD | Up to 8 OSDsUp to 8 areas |
| Privacy Mask |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Smart |
| Behavior Detection | Intrusion, cross line, motion detection |
| Intrusion | Enter and loiter in a pre-defined virtual region |
| cross line | Cross a pre-defined virtual line |
| motion detection | Moving within a pre-defined virtual region |
| Recognition | Face detection、Audio detection |
| Intelligent Identification | Defocus, Scene Change, Object Left, Object Moving |
| Statistical Analysis | People counting |
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8 KHZ |
| Storage |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR |
| Network |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP |
| Compatible Integration | ONVIF(Profile S, Profile G, Profile T), API |
| Interface |
| Audio I/O | Input: impedance 35 kΩ; amplitude 2 V [p-p] |
| Output: impedance 600 Ω; amplitude 2 V [p-p] |
| Alarm I/O | 1.1 |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| General |
| Power | 12 V DC±25%, PoE (IEEE802.3 af) |
| Power consumption: Max 4W |
| Dimensions (Ø x H) | Φ108.5 x 81 mm (Ø4.28” x 3.2”) |
| Weight | 0.45 kg (0.99 lb) |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity:10%~95% RH(non-condensing) |
| Ingress Protection | IP67 |
| Vandal Resistant | IK10 |
